Sony STR-DE425 - Controls and Connections; Front Panel Controls; Rear Panel Terminals

— 3 —
SECTION 1
GENERAL
1
23
5
6
7
8
9
!º
!¡
!™
!£
!¢
!§
!∞!ª
!¶!•
@º
@¡
@•
@ª
@£
@¶
@¢
@§
@∞
@™
#º
#¡
4
1
2
3
4
5
7
8
6
9
!º
!¡!™!£

!¢!∞
1 POWER switch (I/u)
2 CENTER LEVEL +, – buttons
3 REAR LEVEL +, – buttons
4 PRO LOGIC, C.STUDIO, HALL indicators
5 5.1/DVD INPUT, BASS BOOST indicators
6 MASTER VOLUME control
7 BALANCE control
8 TREBLE control
9 BASS control
!º MUTING button/indicator
!¡ SURROUND ON/OFF button
!™ SURROUND EFFECT/DELAY, MODE buttons
!£ SET UP, 5.1/DVD INPUT, BASS BOOST buttons
!¢ TV/LD button
!∞ TAPE/MD button
!§ PHONO button
!¶ TUNER button
!• CD button
!ª VIDEO button
@º Numeric buttons
@¡ DIRECT TUNING, SHIFT buttons
@™ CHARACTER, DISPLAY buttons
@£ MEMORY button
@¢ FM/AM button
@∞ PRESET/CHARACTER +, – buttons
@§ FM MODE button
@¶ SLEEP button
@• TUNING/PTY SELECT +, – buttons
@ª RDS PTY, EON buttons
#º PHONES jack
#¡ SPEAKERS A, B ON/OFF buttons
1 ANTENNA (FM/AM)
2 5.1/DVD INPUT
3 y SIGNAL GND
4 MONITOR
5 WOOFER
6 FRONT SPEAKERS (A/B)
7 AC OUTLET
8 AC power cord
9 SURROUND SPEAKERS (CENTER)
0 SURROUND SPEAKERS (REAR)
!¡ VIDEO
!™ TV/LD
!£ TAPE/MD
!¢ CD
!∞ PHONO

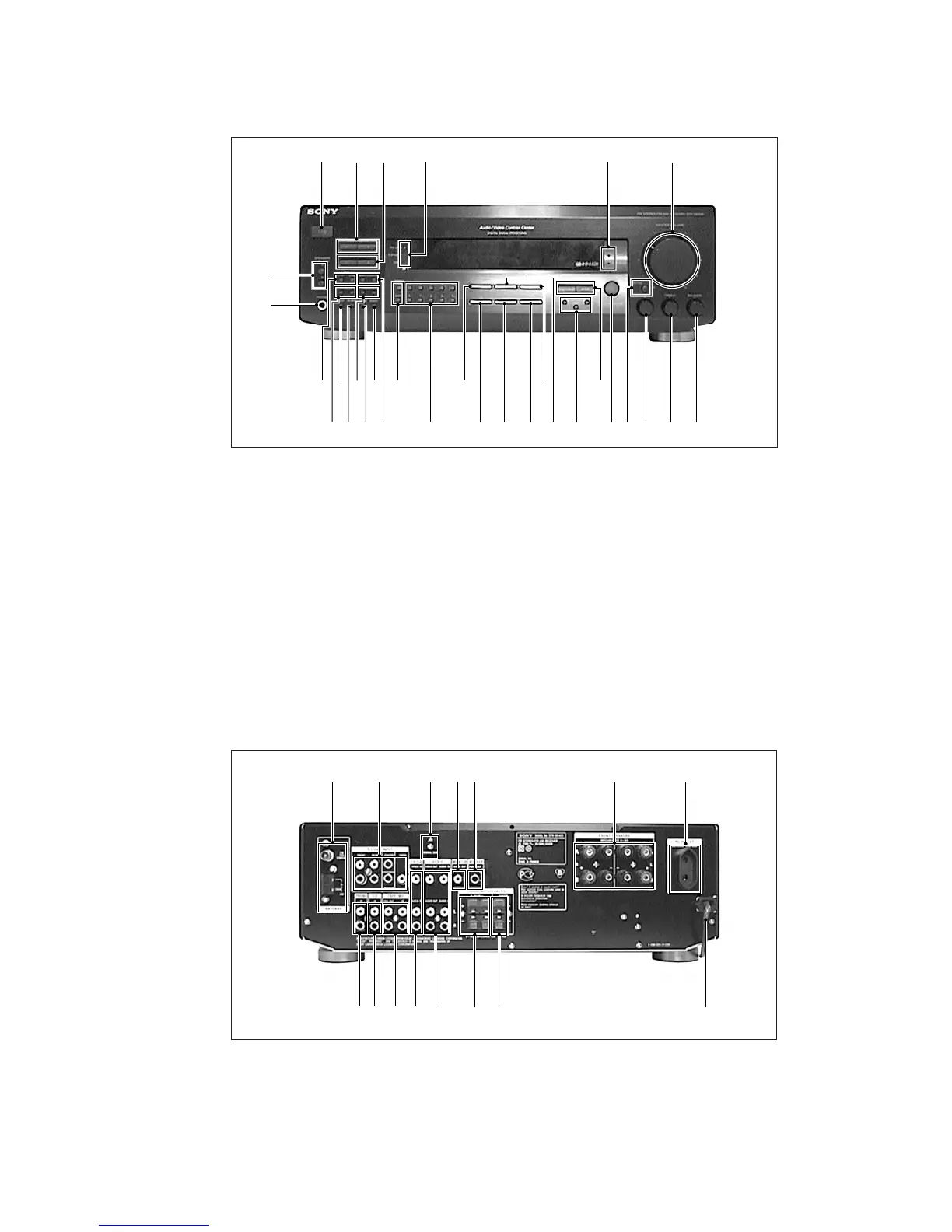

LOCATION AND FUNCTION OF CONTROLS
[FRONT PANEL]
[REAR PANEL]
