Sony STR-DE485 - Chassis Section-1

37
STR-DE485/DE485E

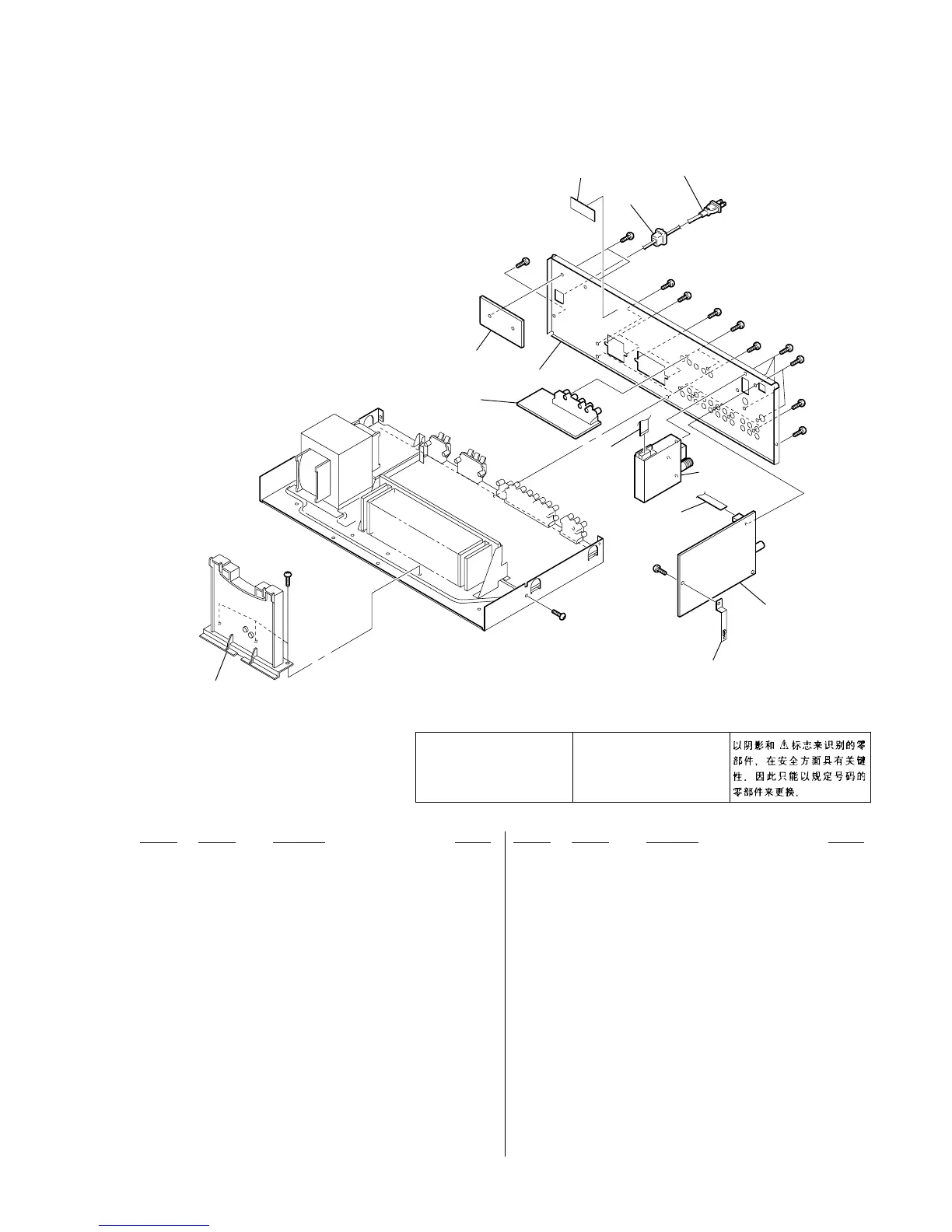

5-3. CHASSIS SECTION-1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-4727-815-A VIDEO BOARD, COMPLETE (US)
101 A-4727-840-A VIDEO BOARD, COMPLETE (CND,MX)
101 A-4727-849-A VIDEO BOARD, COMPLETE (AEP,UK,E,CH,AR)
101 A-4727-968-A VIDEO BOARD, COMPLETE (AUS,SP,TW)
102 1-683-761-11 AC SELECT BOARD (E)
* 103 3-703-044-26 LABEL, CAUTION (US)
* 104 3-703-244-00 BUSHING (2104), CORD
0 105 1-696-847-11 CORD, POWER (AUS)
0 105 1-769-744-11 CORD, POWER (AEP,UK)
0 105 1-777-071-21 CORD, POWER (E,SP,TW)
0 105 1-783-205-11 CORD, POWER (CH)
0 105 1-783-820-11 CORD, POWER (US,CND,MX)
0 105 1-783-941-12 CORD, POWER (AR)
106 1-769-940-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP,UK)
106 1-773-004-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
107 1-575-662-31 WIRE (FLAT TYPE) (5 CORE) (AUS,SP,TW)
107 1-769-844-11 WIRE (FLAT TYPE) (5 CORE)
(EXCEPT AUS,SP,TW)
108 A-4727-818-A DIGITAL BOARD, COMPLETE (US)
108 A-4727-843-A DIGITAL BOARD, COMPLETE (CND)
108 A-4727-851-A DIGITAL BOARD, COMPLETE (AEP,UK)
108 A-4727-996-A DIGITAL BOARD, COMPLETE (E,MX)
108 A-4728-002-A DIGITAL BOARD, COMPLETE (CH,AR)
108 A-4728-862-A DIGITAL BOARD, COMPLETE (AUS)
108 A-4728-866-A DIGITAL BOARD, COMPLETE (SP)
108 A-4728-870-A DIGITAL BOARD, COMPLETE (TW)
TM301 1-693-577-11 TUNER PACK (FM/AM) (ANTENNA) (E)
TM301 1-693-577-21 TUNER PACK (FM/AM) (ANTENNA)
(US,CND,MX,TW)
TM301 1-693-578-21 TUNER PACK (FM/AM) (ANTENNA) (AEP,UK)
TM301 1-693-580-21 TUNER PACK (FM/AM) (ANTENNA)
(AUS,CH,SP,AR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
103
104
105
101
102
108
106
107
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
TM301
#1
not supplied
not supplied
not supplied
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
