4-1. FRONT PANEL SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (#mark) list is given in the last of
this parts list.
• Abbreviation
SP : Singapore AUS: Australian
CH : Chinese EA : Saudi Arabia
MY : Malaysia
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifie.

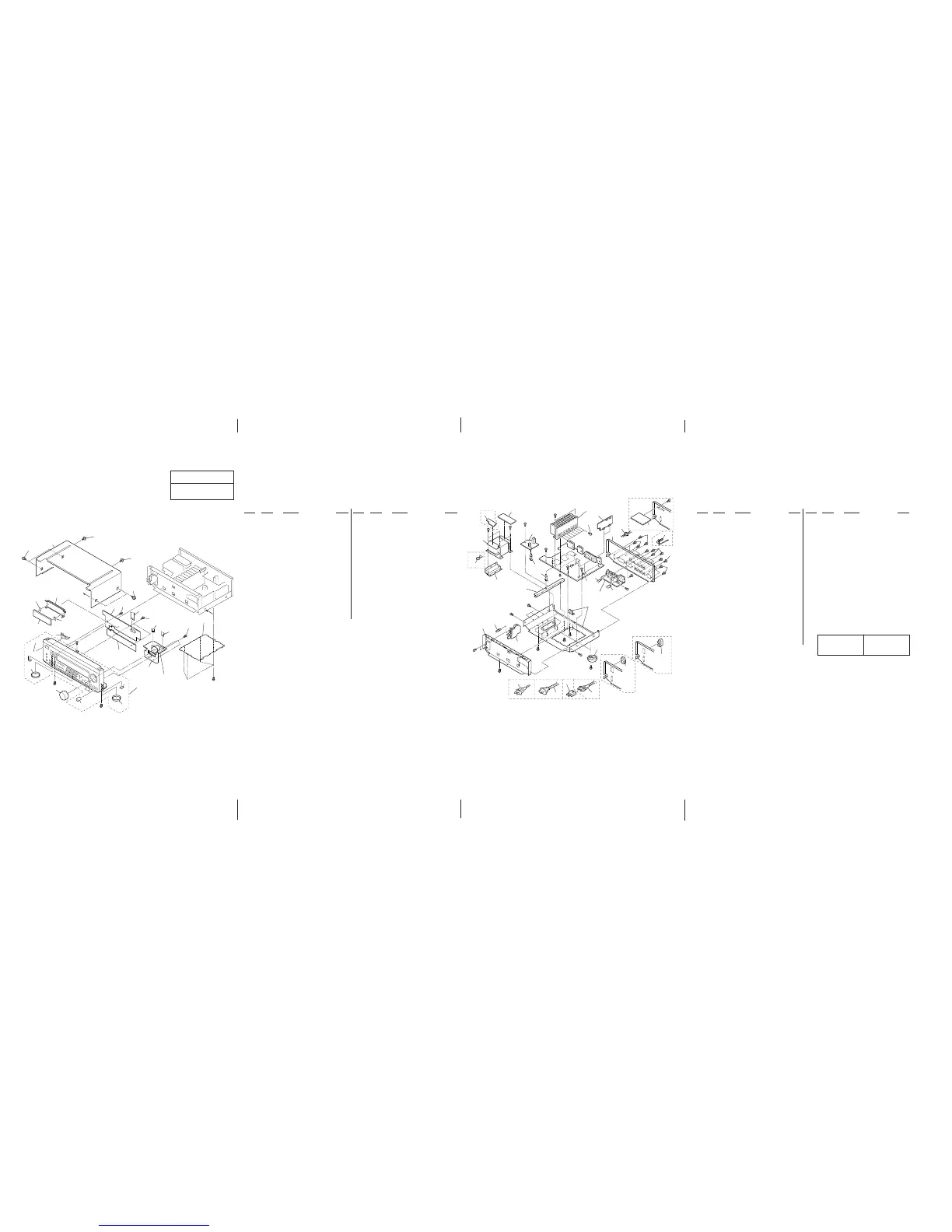

SECTION 4
EXPLODED VIEWS
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-980-639-01 KNOB (R14)(BLACK)(D460Z/DE515)
1 4-980-639-31 KNOB (R14)(GOLD)(V505)
2 X-4946-873-1 KNOB (R48) ASSY (BLACK)(D460Z/DE515)
2 X-4948-385-1 KNOB ASSY (GOLD)(V505)
3 X-4948-336-1 PANEL ASSY, FRONT (DE515:US,Canadian)
3 X-4948-365-1 PANEL ASSY, FRONT (DE515:AUS)
3 X-4948-366-1 PANEL ASSY, FRONT (DE515:SP,MY)
3 X-4948-368-1 PANEL ASSY, FRONT (D460Z)
3 X-4948-386-1 PANEL ASSY, FRONT (V505)
3 X-4948-472-1 PANEL ASSY, FRONT (DE515:E)
4 4-980-109-01 BUTTON (P-M)(BLACK) (DE515:SP,MY)
4 4-980-109-41 BUTTON (P-M)(GOLD) (V505)
4 4-989-843-01 BUTTON (P-T)(BLACK)
(D460Z/DE515:US,Canadian,E,EA,PX,AUS)
* 5 4-921-941-01 CUSHION (FL)
* 6 4-943-107-11 HOLDER (FL TUBE)
* 7 4-980-658-01 CASE (413226)(BLACK)(D460Z/DE515)
* 7 4-980-658-71 CASE (413226)(GOLD)(V505)
8 3-704-366-01 SCREW (CASE) (M3X8)(BLACK)(D460Z/DE515)
8 3-704-366-71 SCREW (CASE)(M3X8)(GOLD) (V505)
* 9 A-4392-776-A DISPLAY BOARD, COMPLETE
(D460Z/DE515:US,Canadian)
* 9 A-4392-974-A DISPLAY BOARD, COMPLETE (DE515:AUS)
* 9 A-4392-977-A DISPLAY BOARD, COMPLETE
(DE515:SP,MY/V505)
* 9 A-4392-980-A DISPLAY BOARD, COMPLETE (DE515:E,EA,PX)
10 1-782-084-11 WIRE (FLAT TYPE) (23 CORE)
11 1-782-075-11 WIRE (FLAT TYPE) (9 CORE)
12 1-782-243-11 WIRE (FLAT TYPE) 15P
13 4-951-620-01 SCREW (2.6X8), +BVTP
* 14 A-4392-778-A VR TONE BOARD, COMPLETE
15 4-977-593-11 RING (DIA. 50), ORNAMENTAL
(SILVER)..(BLACK)(DE515:E,SP,AUS,EA,PX,MY)
15 4-977-593-21 RING (DIA. 50), ORNAMENTAL
(GOLD)...(GOLD) (V505)
16 3-008-600-11 EMBLEM (5-AR), SONY
(SILVER)...(BLACK)(D460Z/DE515)
16 3-008-600-21 EMBLEM (5-AR), SONY (GOLD)...(GOLD)(V505)
* 17 A-4392-781-A KEY BOARD, COMPLETE
18 4-977-358-11 CUSHION (8X12.5)
FL201 1-517-141-11 INDICATOR TUBE, FLUORESCENT
4-2. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 51 1-665-289-11 SP SW BOARD
52 4-951-801-01 BUTTON (S)(BLACK)(D460Z/DE515)
52 4-951-801-21 BUTTON (S)(GOLD)(V505)
53 1-769-746-61 LEAD (WITH CONNECTOR) (2 CORE)
(DE515:E,EA,PX)
* 54 1-665-286-11 PRIMARY BOARD
(D460Z/DE515:US,Canadian,SP,MY,AUS/V505)
* 55 1-665-287-11 SECONDARY BOARD
* 56 1-665-285-11 STBY BOARD
* 57 A-4392-785-A MAIN BOARD, COMPLETE (DE515:US)
* 57 A-4392-973-A MAIN BOARD, COMPLETE (DE515:Canadian)
* 57 A-4392-976-A MAIN BOARD, COMPLETE (DE515:AUS)
* 57 A-4392-979-A MAIN BOARD, COMPLETE (DE515:SP,MY)
* 57 A-4392-983-A MAIN BOARD, COMPLETE (DE515:E,EA,PX)
* 57 A-4392-984-A MAIN BOARD, COMPLETE (D460Z)
* 57 A-4398-839-A MAIN BOARD, COMPLETE (V505)
* 58 3-703-244-00 BUSHING (2104), CORD
* 59 4-989-899-01 PANEL, BACK (DE515:US)
* 59 4-989-899-11 PANEL, BACK (DE515:Canadian)
* 59 4-989-899-21 PANEL, BACK (DE515:AUS)
* 59 4-989-899-31 PANEL, BACK (DE515:E,EA,PX)
* 59 4-989-899-41 PANEL, BACK (DE515:SP,MY)
* 59 4-989-899-51 PANEL, BACK (D460Z)
* 59 4-989-899-71 PANEL, BACK (V505)
* 60 1-665-261-11 VIDEO BOARD
61 1-782-077-11 WIRE (FLAT TYPE) (11 CORE)
— 27 —
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifie.
— 25 — — 26 — — 28 —
↑ ↑
Parts of Color Cabinet’s Color
62 X-4947-207-1 FOOT ASSY (F50150S)
(DE515:E,EA,PX,SP,AUS)
62 X-4947-208-1 FOOT ASSY (F50150S)
(D460Z/DE515:US,Canadian)
62 X-4947-547-1 FOOT ASSY (F50150S) (V505)
* 63 4-924-098-21 HOLDER, PC BOARD
* 64 A-4392-780-A SWITCH BOARD, COMPLETE
65 4-924-098-01 HOLDER, PC BOARD
* 66 1-665-263-11 SELECTOR BOARD (DE515:E,EA,PX)
67 4-956-370-12 BAND, PLUG FIXED (DE515:AUS)
69 1-782-244-11 WIRE (FLAT TYPE) 15P
70 3-905-609-01 SCREW (TRANSISTOR)
! 71 1-696-847-11 CORD, POWER (AUS)
! 71 1-777-070-11 CORD, POWER (US, Cnadian)
! 71 1-777-071-11 CORD, POWER (E,SP,EA,PX,MY,CH)
72 1-569-008-21 ADAPTOR, CONVERSION 2P (E,EA,PX)
! CNJ903 1-251-416-11 OUTLET, A.C. (AUS)
! CNJ903 1-526-794-11 OUTLET, A.C. (SP,MY,CH)
! T901 1-431-267-11 TRANSFORMER, POWER (US)
! T901 1-431-268-11 TRANSFORMER, POWER (Canadian)
! T901 1-431-269-11 TRANSFORMER, POWER (SP,MY,CH)
! T901 1-431-270-11 TRANSFORMER, POWER (AUS)
! T901 1-431-271-11 TRANSFORMER, POWER (E,EA,PX)
54
55
53
56
63
65
64
66
67
58
59
#4
69
61
57
52
51
62
71
72
71
#2
T901
not supplied
#2
#1
#1
not supplied
not supplied
#1 #3
#1
#1
#1
#1
#1 #1
#1
#1
#1
#3
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
CNJ903
CNJ903
#1
AUS model
E, EA, PX
model
EXCEPT US,
Canadian, AUS model
AUS model
SP, MY, CH model
E, EA, PX model
AUS mode
