Sony STR-DE635 - Schematic Diagram Digital Section(1;3)

STR-DE635
— 15 — — 16 —

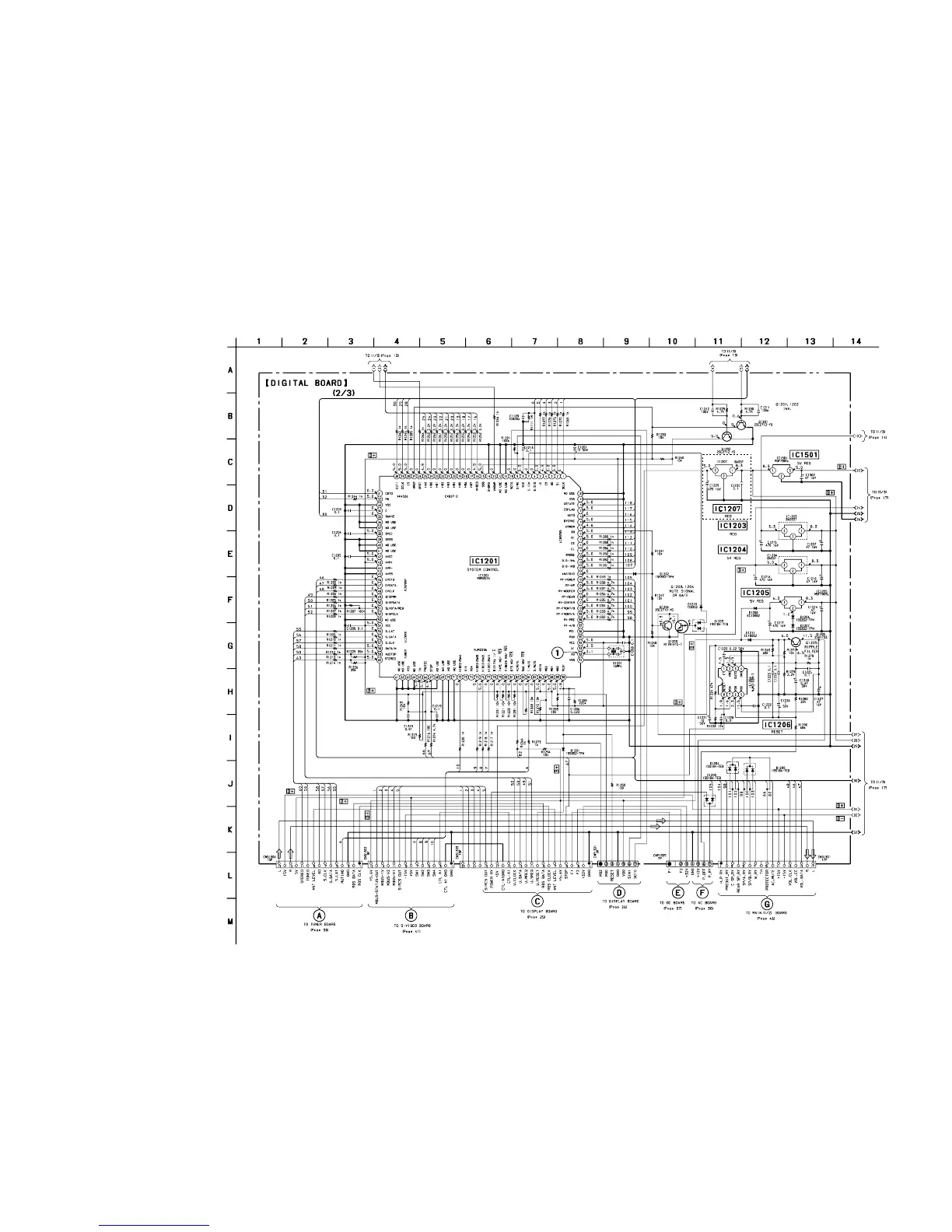

4-5. SCHEMATIC DIAGRAM DIGITAL SECTION(2/3) • See page 19 for Printed Wiring Board. • See page 12 for Waveforms. • See page 51 for IC Pin Functions. • See page 60 for IC Block Diagrams.
CXD9511Q
DIGITAL PWB
FROM SUFFIX-12
Ver 1.1 2002. 02
