Sony STR-DE635 - Exploded Views; Front Panel Exploded View

NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
SECTION 5
EXPLODED VIEWS
— 62 —
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
a
a
supplied with
RV101
not supplied
supplied with RV401
#1
#1
#1
#1
FL101
#1
#1
1
4
5
8
20
11
11
11
15
11
11
18
14
16
17
18
19
21
9
10
11
12
12
13
12
6
7
2
3
not supplie
d
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-4951-035-1 KNOB (VOL) ASSY
2 3-350-426-01 SPRING, RING
3 4-221-474-01 KNOB (JOG)
4 4-217-853-11 ESCUTCHEON (US,CND)
4 4-217-853-51 ESCUTCHEON (AEP)
5 X-4951-212-1 BASE (635U) ASSY, PANEL (US,CND)
5 X-4951-252-1 BASE (635CED) ASSY, PANEL (AEP)
6 4-957-383-01 KNOB (F14)
7 4-996-698-01 EMBLEM, SONY
8 X-4951-572-1 ESCUTCHEON (WIN) ASSY
9 4-996-683-21 BUTTON (POWER)
* 10 1-673-347-11 SP-SW BOARD
11 4-951-620-01 SCREW (2.6 × 8), +BVTP
12 4-210-291-01 SCREW (CASE 3 TP2)
* 13 4-982-682-01 CASE (414532) (US,CND)
13 X-4947-722-1 CASE ASSY (AEP)
* 14 A-4419-393-A DISPLAY BOARD, COMPLETE(US,CND)
* 14 A-4419-395-A DISPLAY BOARD, COMPLETE(AEP)
* 15 1-673-350-11 LED BOARD
* 16 1-673-348-11 ROTARY BOARD
* 17 4-990-797-01 HOLDER (FL)
* 18 4-921-941-01 CUSHION (FL)
19 A-4419-404-A SW BOARD, COMPLETE(US,CND)
* 19 A-4419-405-A SW BOARD, COMPLETE(AEP)
* 20 1-673-346-11 MUTING BOARD
* 21 A-4419-407-A VOLUME BOARD, COMPLETE(US,CND)
21 A-4426-060-A VOLUME BOARD, COMPLETE(AEP)
FL101 1-517-781-11 INDICATOR TUBE, FLUORESCENT

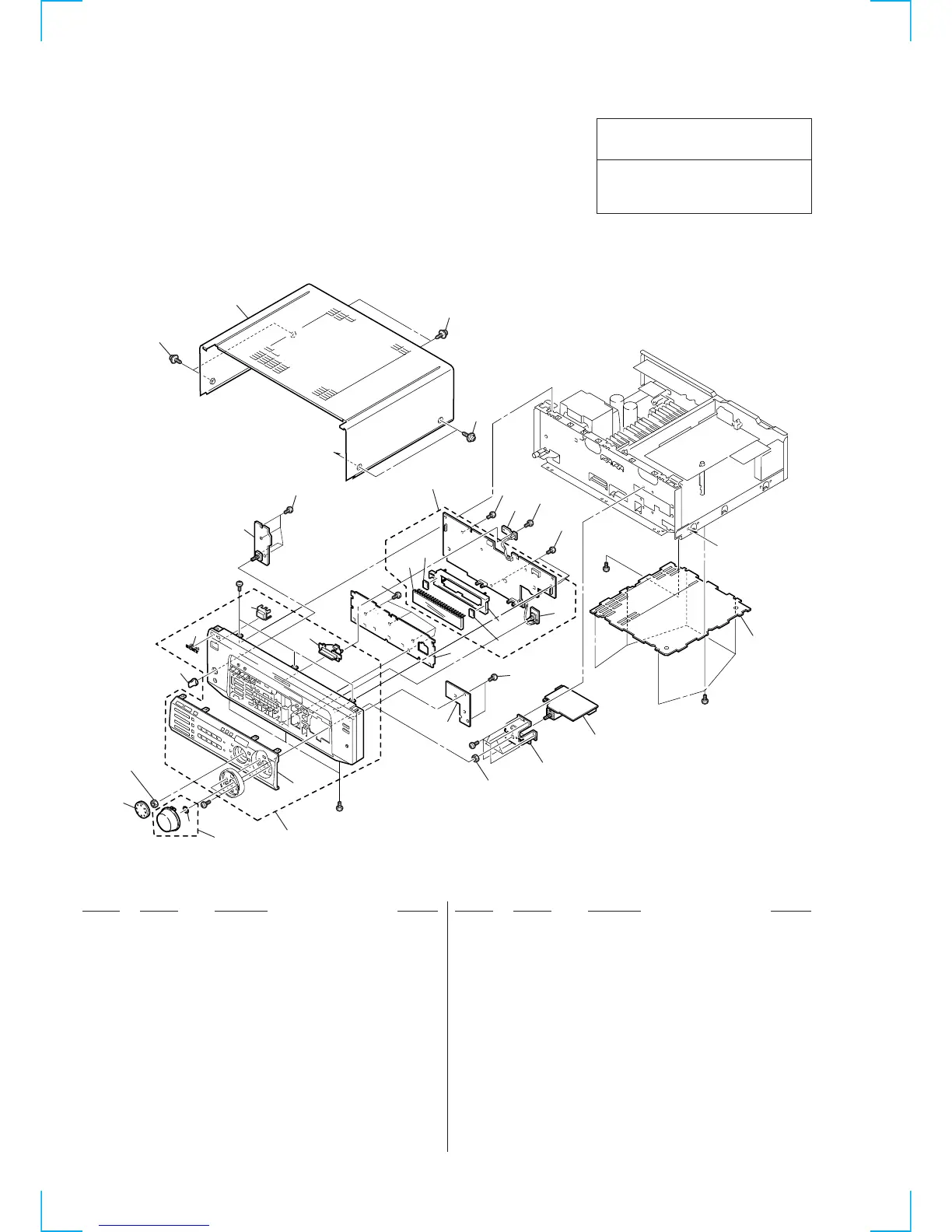

5-1. FRONT PANEL SECTION
