Sony STR-DE635 - Printed Wiring Board Digital Section(1;2)

STR-DE635
— 21 — — 22 —

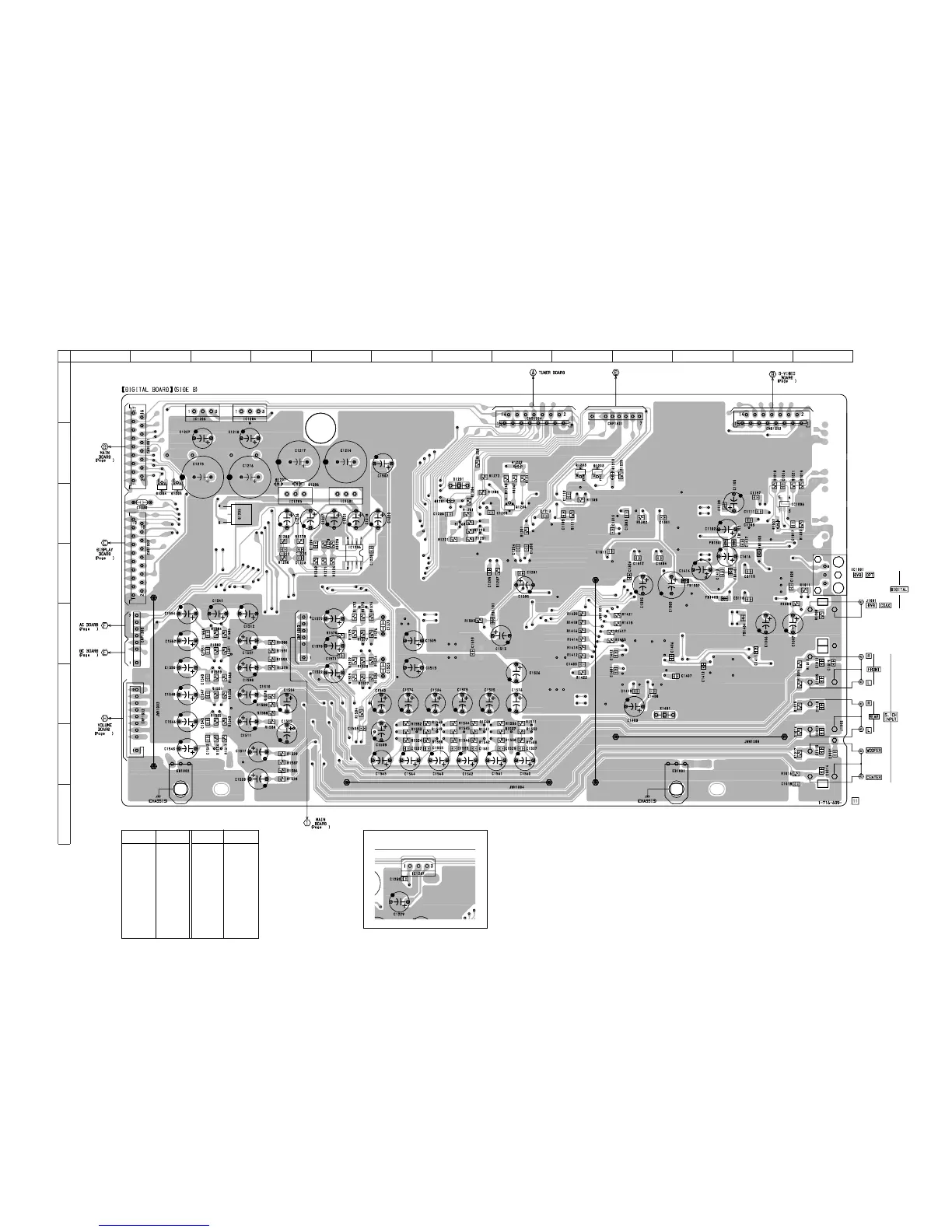

4-8. PRINTED WIRING BOARD DIGITAL SECTION(2/2) • See page 11 for Circuit Boards Location.
44
23
35
36
40
DISPLAY BOARD
(Page 24)
(Page 36)
39
43
12
A
B
C
D
E
F
G
H
345678910111213
• Semiconductor Location
Ref. No. Location Ref. No. Location
D1002 C-12
D1201 C-7
D1202 B-8
D1203 B-9
D1204 C-2
D1205 C-2
D1206 C-4
D1207 C-4
D1210 B-10
IC1001 D-13
IC1006 C-12
IC1203 A-3
IC1204 A-3
IC1205 C-4
IC1206 D-5
IC1501 C-5
Q1203 B-9
Q1204 C-8
Q1205 C-3
(Location B-6)
DIGITAL PWB FROM SUFFIX-12
Ver 1.1 2002. 02
