Sony STR-DH720 - 2-2. D-VIDEO BOARD; 2-3. FRONT PANEL SECTION

STR-DH720/DH720HP
6

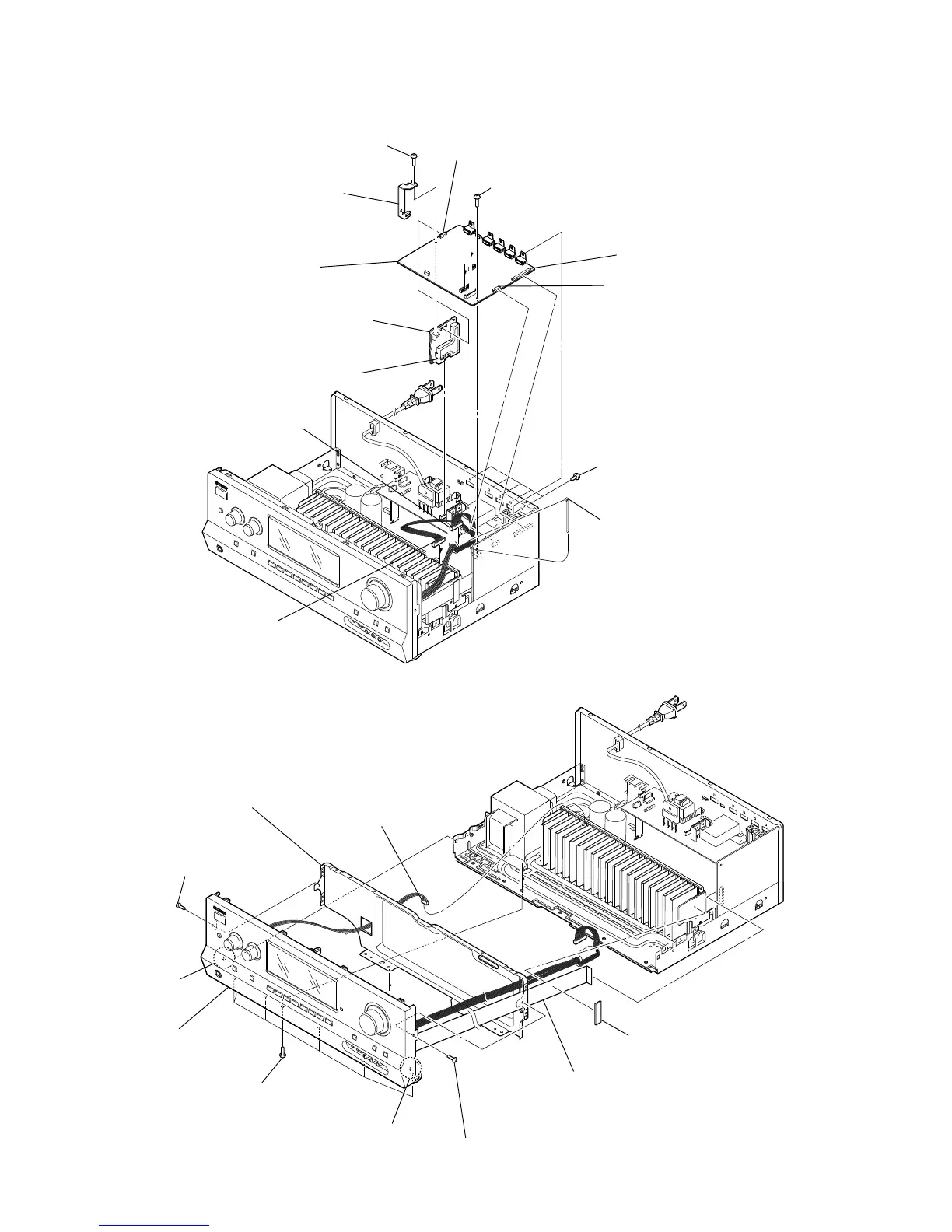

2-2. D-VIDEO BOARD
2-3. FRONT PANEL SECTION
1 wire (flat type) (25 core) (CN2116)
3 CN391 (5P)
2 cushion (R)
7 shield, sub chassis
5 seven screws
(+BVTP 3 u 8)
4 one screw
(+BVTP 3 u 8)
4 one screw
(+BVTP 3 u 8)
6 claw
6 claw
8 front panel section
5 one screw
(+BVTP 3 u 8)
8 CN3510 (6P)
9 CN3003 (20P)
9 CN3004 (8P)
0 D-VIDEO board
qa CN1500 (7P)
qs DCDC board
6 five screws
(+B 3 u 5)
C
B
C
B
1 cut the cable tie
2 CN3007 (13P)
3 CN3200 (8P)
4 one screw
(+BVTP 3 u 8)
7 bracket holder
Ver. 1.2
