Sony STR-DH720 - 6-4. BACK PANEL SECTION

STR-DH720/DH720HP
68
#1
#1
F901
not supplied
154
153
152
151
not supplied
(STANDBY-A VIDEO PC board)

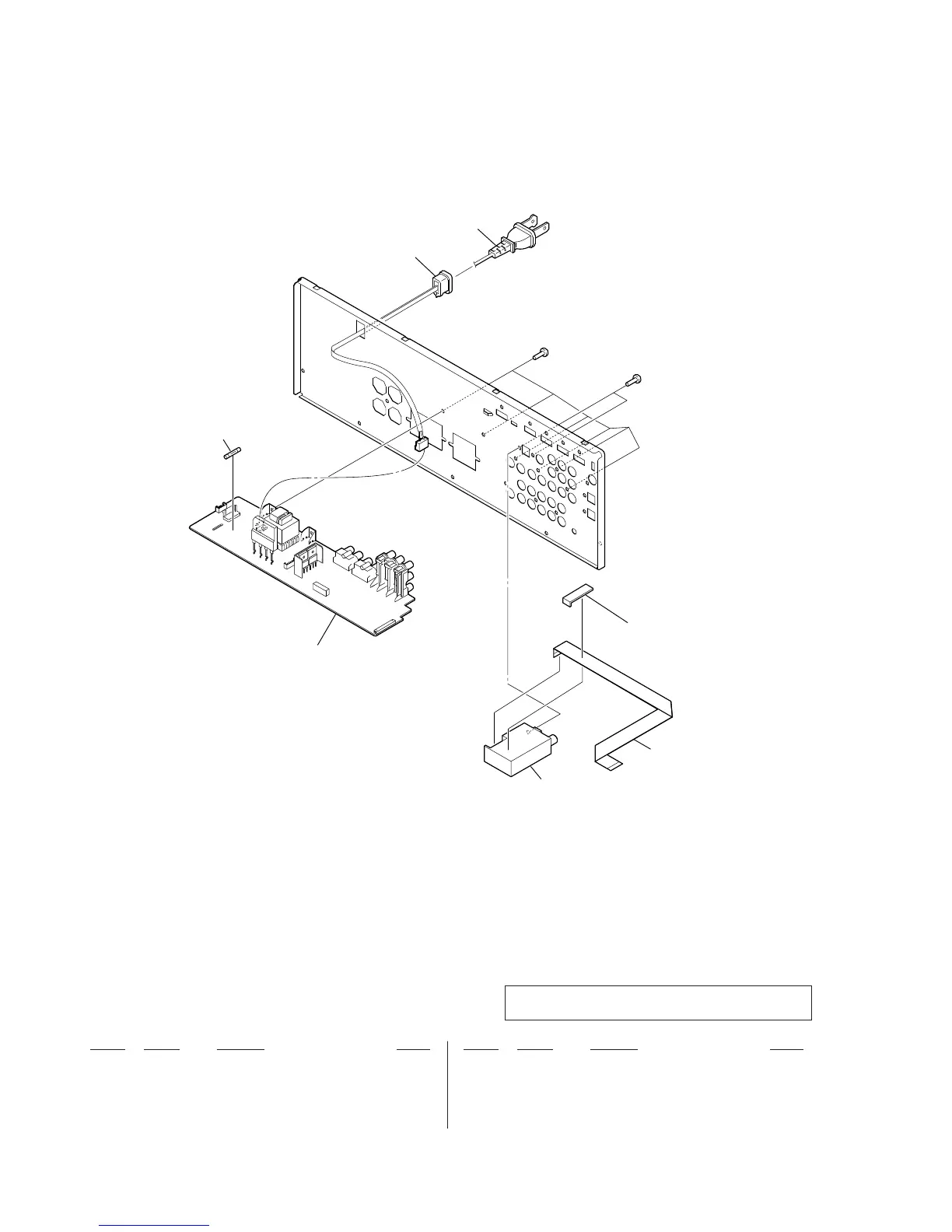

6-4. BACK PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 4-966-267-12 BUSHING (FBS001), CORD
0
152 1-777-071-83 CORD, POWER (ECE)
0
152 1-837-308-11 CORD, POWER-SUPPLY (US, CND)
153 1-693-737-21 TUNER (FM/AM) (ECE)
153 1-693-779-11 TUNER (FM/AM) (US, CND)
154 1-827-731-51 WIRE (FLAT TYPE) (11 CORE) (ECE)
154 1-828-957-51 WIRE (FLAT TYPE) (9 CORE) (US, CND)
0
F901 1-532-465-33 FUSE, T3.15AL 250V (ECE)
0
F901 1-533-311-12 FUSE, GLASS (DIA.5) 8A 125V (US, CND)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Ver. 1.1
