Sony STR-DH720 - 2-6. MAIN BOARD SECTION; 2-7. MAIN BOARD

STR-DH720/DH720HP
8

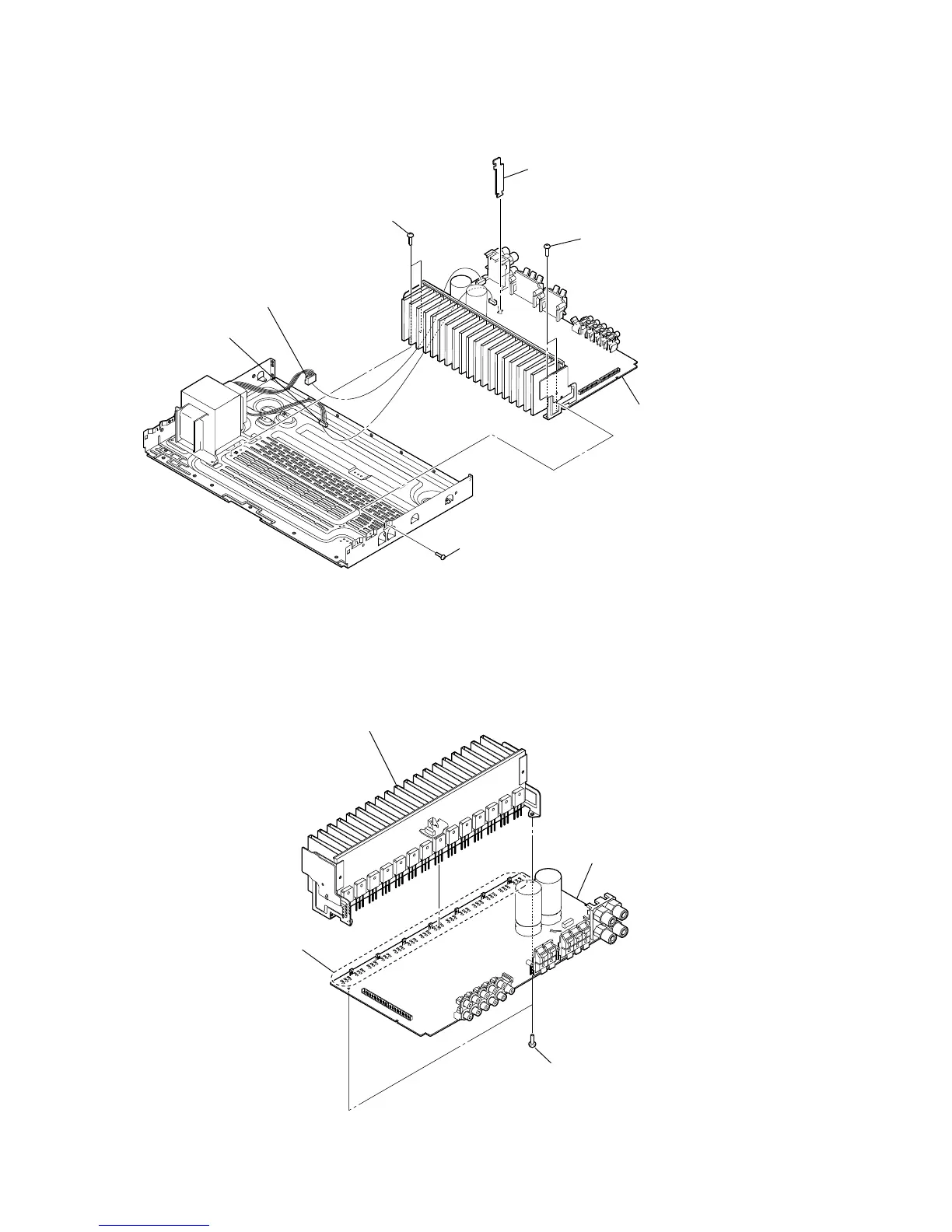

2-6. MAIN BOARD SECTION
3 heatsink block
2 two screws
(+BVTP 3 u 8)
4 MAIN board
1 Remove the
forty-two solders.
2-7. MAIN BOARD
Note: This illustration sees the MAIN board from back side.
4 one screw
(+BVTP 3 u 8)
6 two screws
(+BVTP 3 u 8)
7 MAIN board section
5 two screws
(+BVTP 3 u 8)
1 CNP920 (5P)
3 LOCK board
2 CNP930 (5P)
