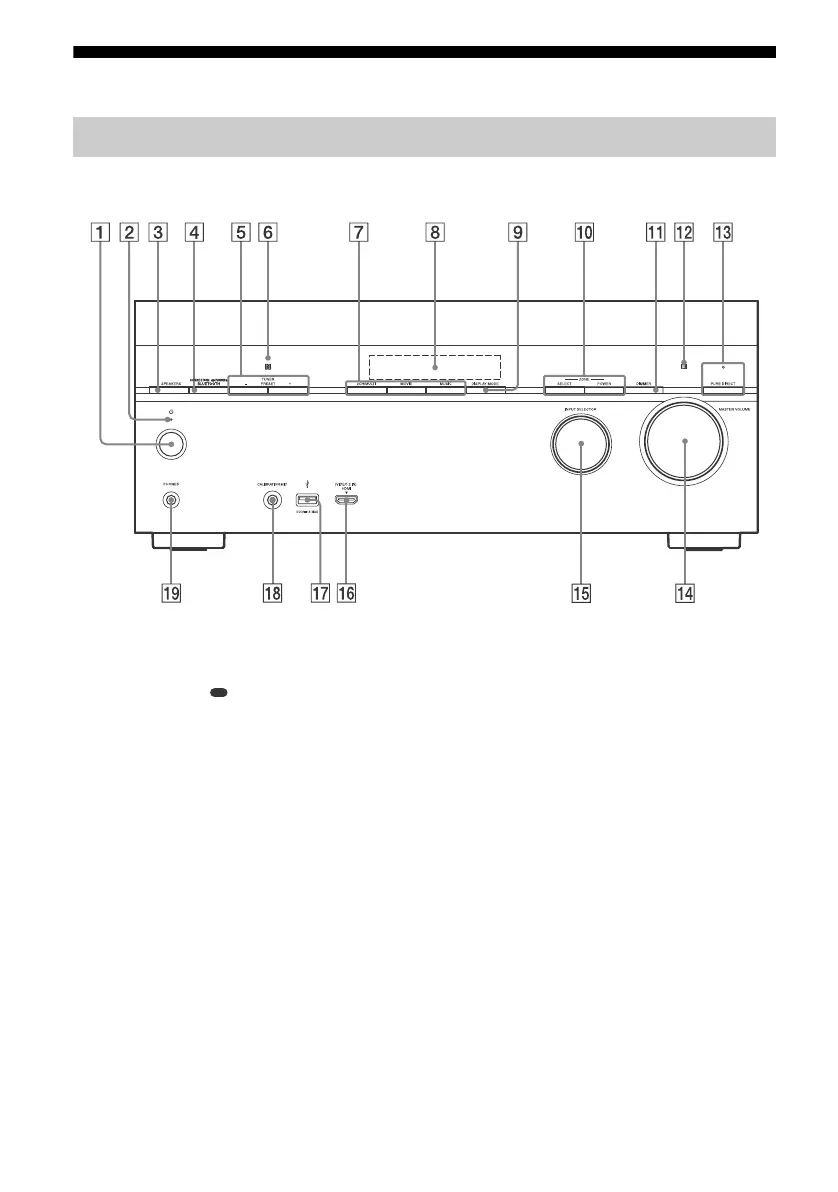

Parts and Controls
Front panel
(power) (page 34)
Power indicator
SPEAKERS (page 36)
CONNECTION PAIRING BLUETOOTH
Operates the BLUETOOTH function.
TUNER PRESET +/–
Selects preset stations or channels.
NFC sensor
2CH/MULTI, MOVIE, MUSIC (page 40)
Display panel (page 11)
DISPLAY MODE
Displays information on the display panel.
ZONE SELECT, ZONE POWER (page 37,
39)
DIMMER
Adjusts the brightness of the display panel.
Remote control sensor
Receives signals from remote control.
PURE DIRECT
The indicator above the button lights up when
the Pure Direct function is activated.
MASTER VOLUME (page 36)
INPUT SELECTOR (page 37)
HDMI (VIDEO 2 IN) jack
(USB) port
Connect a USB device here.
CALIBRATION MIC jack (page 35)
PHONES jack
Connect headphones here.
Power indicator
Green: The receiver is turned on.
Amber: The receiver is in standby mode,
and you have set one of the following:
[Control for HDMI], [Remote Start],
[Bluetooth Standby]*, or [Quick Start/
Network Standby]** is set to [On].
[Standby Through] is set to [On] or [Auto].
Power for Zone 2/3 or HDMI zone is set to
[On].
The indicator turns off when the receiver is in
standby mode and the following settings are
set to [Off]:
[Control for HDMI], [Standby Through],
[Remote Start], [Bluetooth Standby], [Quick
Start/Network Standby]**, and the power
for all zones.
