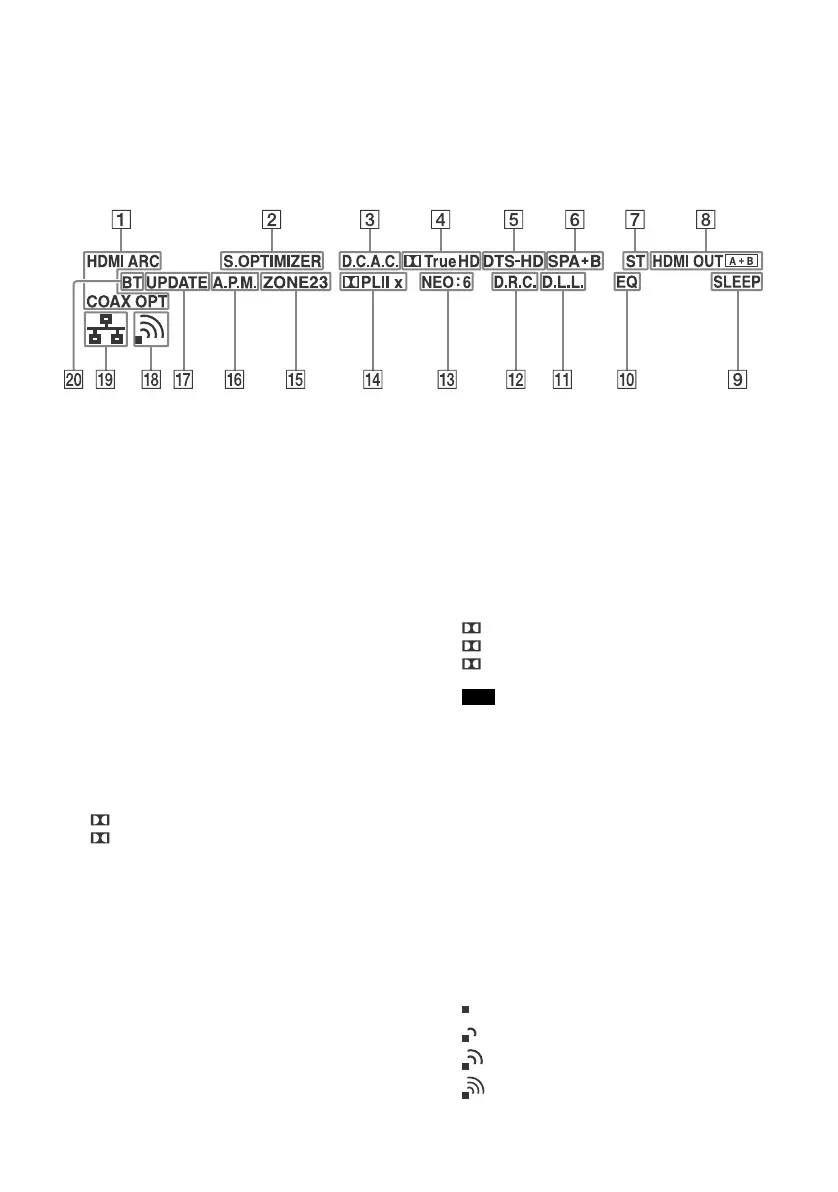

Indicators on the display panel
The indicator lights up to indicate the current status.
 Input indicator
Indicate the current input.
HDMI
Digital signals are input through the selected
HDMI jack.
ARC
TV input is selected and Audio Return Channel
(ARC) signals are detected.
COAX
Digital signals are input through the COAXIAL
jack.
OPT
Digital signals are input through the OPTICAL
jack.
 S.OPTIMIZER
The Sound Optimizer function is activated.
 D.C.A.C.
The measurement results of the Auto
Calibration function are applied.
 Dolby Digital Surround indicator*
The receiver is decoding the corresponding
Dolby Digital format signals.
 DTS(-HD) indicator*
The receiver is decoding the corresponding DTS
format signals.
 Speaker system indicator (page 36)
 ST
The receiver tunes to a stereo broadcast.
 HDMI OUT A + B
 SLEEP
Sleep timer is activated.
 EQ
Equalizer is activated.
 D.L.L.
The Digital Legato Linear (D.L.L.) function is
activated.
 D.R.C.
Dynamic range compression is activated.
 NEO:6
DTS Neo:6 Cinema/Music decoding is
activated.
 Dolby Pro Logic indicator
The receiver is processing Dolby Pro Logic
format signals. This matrix surround decoding
technology can enhance input signals.
These indicators may not light up depending on
the speaker pattern setting.
 ZONE, ZONE2, ZONE3
“ZONE2”, “ZONE3” or both light up while the
power to the corresponding zone is on.
“ZONE” and “HDMI OUT” light up when the
power for HDMI zone is on.
 A.P.M.
The A.P.M. (Automatic Phase Matching)
function is activated. You can only set the
A.P.M. function in the D.C.A.C. (Digital Cinema
Auto Calibration) function.
 UPDATE
New software is available.
 Wireless LAN signal strength indicator
Show the strength of the wireless LAN signal.
No signal
Weak signal
Moderate signal
Strong signal
Dolby Digital
TrueHD
Dolby TrueHD
DTS
DTS
DTS-HD
DTS-HD
PL
Dolby Pro Logic
PLII
Dolby Pro Logic II
PLIIx
Dolby Pro Logic IIx
Note

Sony STR-DN1070 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	6
Audio (L/R) in	4
Digital audio coaxial in	1
Number of HDMI outputs	2
Connectivity technology	Wired & Wireless
Speakers connectivity type	Banana connector
Ethernet LAN	Yes
Bluetooth version	3.0+HS
Supported radio bands	AM, FM
Preset stations quantity	30
Optical drive included	No
Display	-
Product color	Black
Audio decoders	DTS, DTS 96/24, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Dual Mono, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
Power consumption (standby)	0.4 W
Audio formats supported	AAC, AC3, AIFF, ALAC, FLAC, HE-AAC, LPCM, M4A, MP3, WAV, WMA

Weight and Dimensions

Depth	329.438 mm
Width	430.022 mm
Height	171.958 mm
Weight	10500.663 g
