Preparation

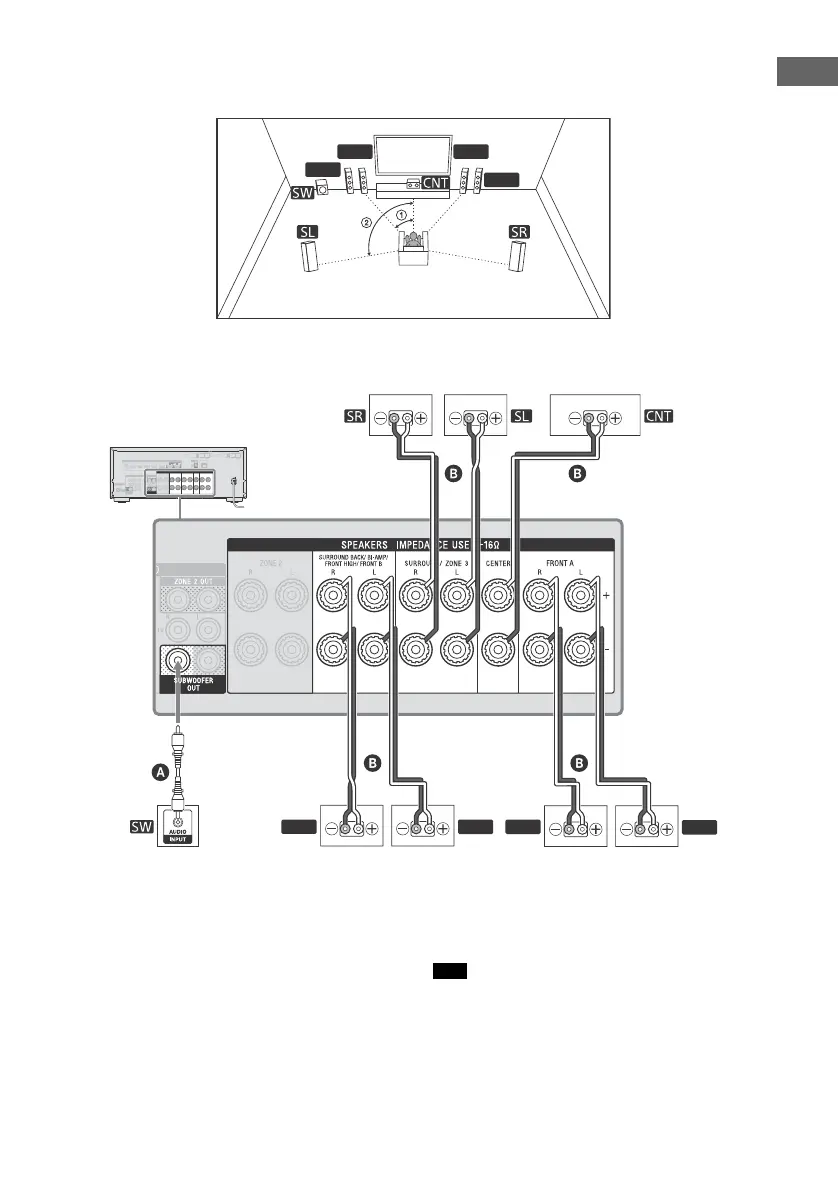

5.1-channel speaker system with Front B speakers
If you have an additional front speaker system, connect it to SPEAKERS SURROUND BACK/
BI-AMP/FRONT HIGH/FRONT B terminals.
After you have made the connection, set
[Surround Back Speaker Assign] in [Speaker
Settings] to [Front B].
You can select the front speaker system you
want by using the SPEAKERS button on the
receiver (page 36).
You can only set [Surround Back Speaker Assign] if
the speaker pattern is set to a setting that does not
have surround back and front high speakers
(page 16).
FR
(
A
)
FL
(
A
)
FR
(
B
)
FL
(
B
)

30˚

100˚ – 120˚
FL
(
A
)
FR
(
A
)
FL
(
B
)
FR
(
B
)
Front B speakers
Surround speakers

Monaural audio cable (not supplied)

Speaker cable (not supplied)
Front A speakersSubwoofer
Center speaker
Note
