Sony STR-K9900P - Chassis Section

45
STR-K5900P/K9900P
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 X-4953-448-1 FOOT ASSY
152 4-232-237-01 FOOT (DIA. 30)
153 4-977-358-01 CUSHION
154 4-233-263-01 SUB MOLD (DE9)
155 A-1084-334-A STANDBY BOARD, COMPLETE
156 4-249-675-01 +BV SUMITITE S 4X6 ROUND
157 3-077-331-21 +BV3 (3-CR)
158 3-905-609-01 SCREW (TRANSISTOR)
159 A-1088-011-A MAIN BOARD, COMPLETE (K9900P)
159 A-1090-297-A MAIN BOARD, COMPLETE (K5900P)
0 F901 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (5A/125V)
Q503 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q504 6-702-391-01 TRANSISTOR MP1620-OPY-MK
151
151
152
153
152
157
153
154
155
156
157
157
157
157
156
158
159
not supplied
not supplied
T901
#1
#1
#1
Q504
Q534
Q533
Q753
Q653
Q704
Q604
Q603
Q754
Q654
F901
Q703
Q503

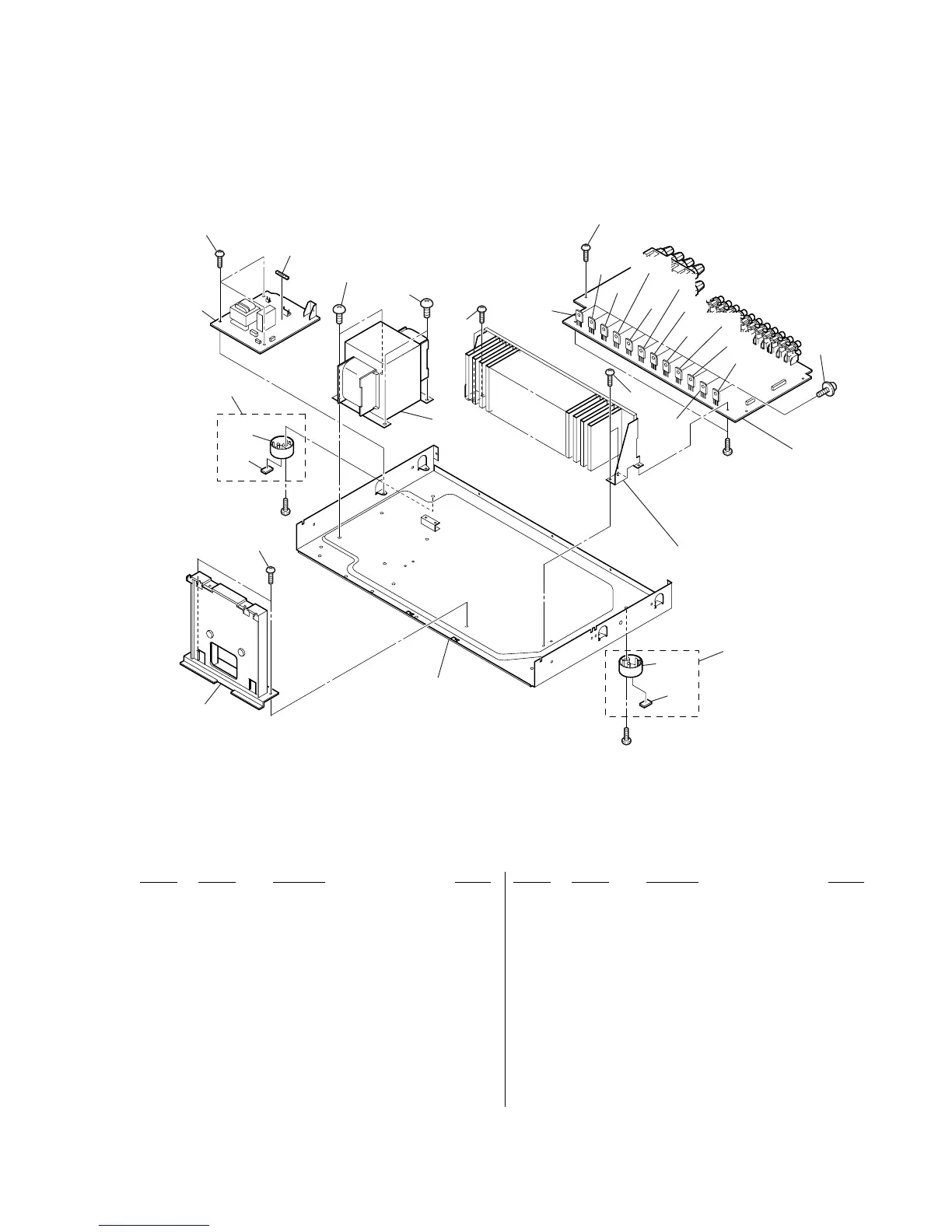

5-4. CHASSIS SECTION
Q533 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q534 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q603 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q604 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q653 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q654 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q703 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q704 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q753 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q754 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0 T901 1-443-524-11 TRANSFORMER, POWER (K9900P)
0 T901 1-443-628-11 TRANSFORMER, POWER (K5900P)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
