STR-K995
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-977-358-01 CUSHION
52 3-077-331-21 +BV3 (3-CR)
53 3-701-748-00 CLAMP
54 4-249-675-01 +BV SUMITITE S 4X6 ROUND
55 3-905-609-01 SCREW (TRANSISTOR)
56 3-703-244-21 CORD BUSH (2104)
0 57 1-783-820-11 CORD, POWER
58 A-1242-875-A MAIN BOARD, COMPLETE
59 1-828-946-11 WIRE (FLAT TYPE) (7 CORE)
60 1-828-953-11 WIRE (FLAT TYPE) (9 CORE)
61 A-1242-883-A DIGITAL BOARD, COMPLETE
62 A-1253-209-A HDMI RE BOARD, COMPLETE
63 1-828-560-11 WIRE (FLAT TYPE) (7 CORE)
0 F4001 1-532-465-33 FUSE (3.15AL/250V)
0 F4002 1-532-465-33 FUSE (3.15AL/250V)
0 F901 1-533-453-12 FUSE, GLASS TUBE (DIA. 5)(5A/125V)

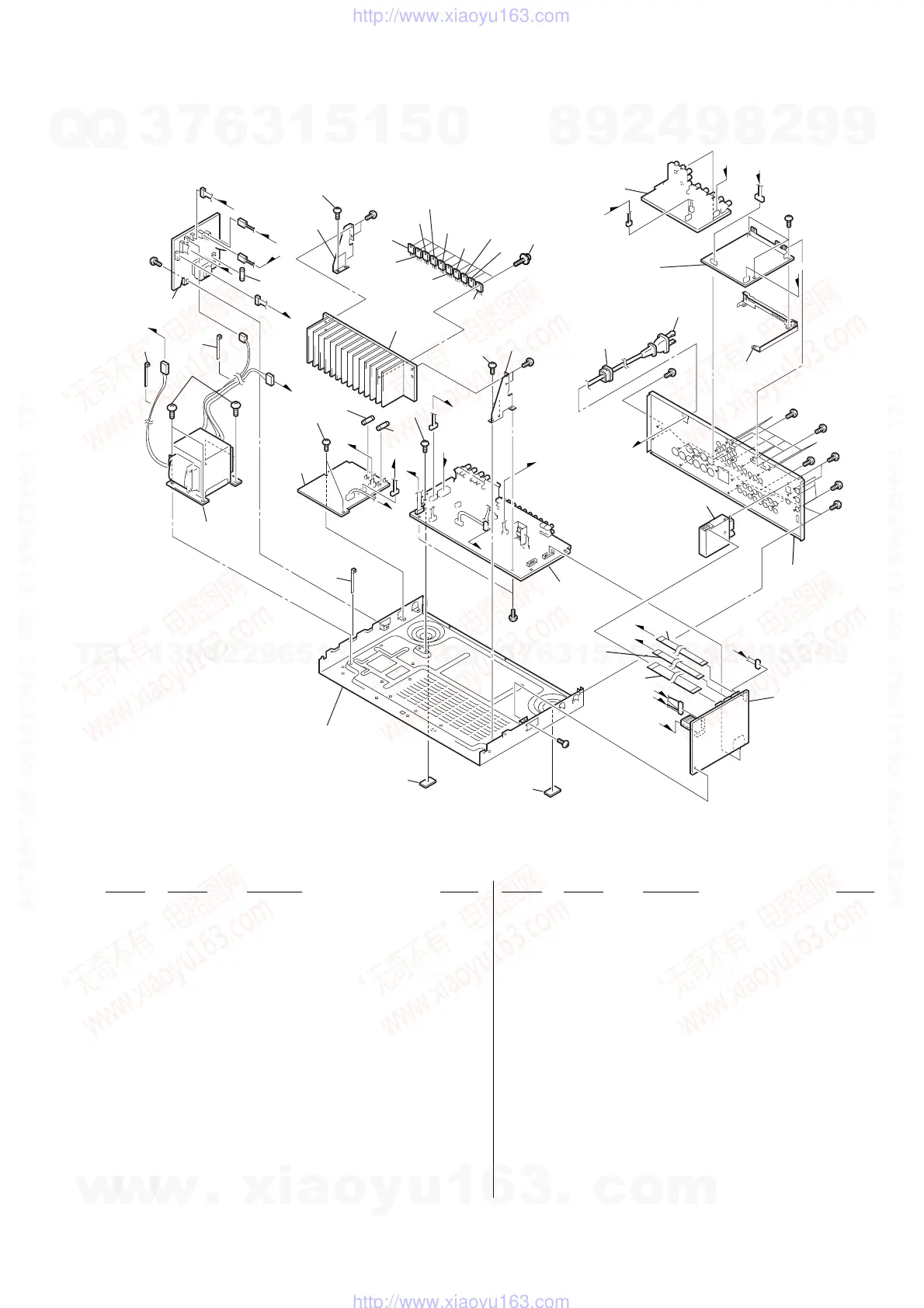

5-2. CHASSIS SECTION
0Q503 6-702-390-01 IC MN2488-OPY-MK
0Q504 6-702-391-01 IC MP1620-OPY-MK
0Q603 6-702-390-01 IC MN2488-OPY-MK
0Q604 6-702-391-01 IC MP1620-OPY-MK
0Q653 6-702-390-01 IC MN2488-OPY-MK
0Q654 6-702-391-01 IC MP1620-OPY-MK
0Q703 6-702-390-01 IC MN2488-OPY-MK
0Q704 6-702-391-01 IC MP1620-OPY-MK
0Q753 6-702-390-01 IC MN2488-OPY-MK
0Q754 6-702-391-01 IC MP1620-OPY-MK
0T901 1-443-524-11 POWER TRANSFORMER
TN1 1-693-728-11 TUNER (FM/AM)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-862-09 SCREW +BVTT 2.6X6 (S)
#3 7-685-871-01 SCREW +BVTT 3X6 (S)
