STR-KM5500
4
SECTION 2
GENERAL

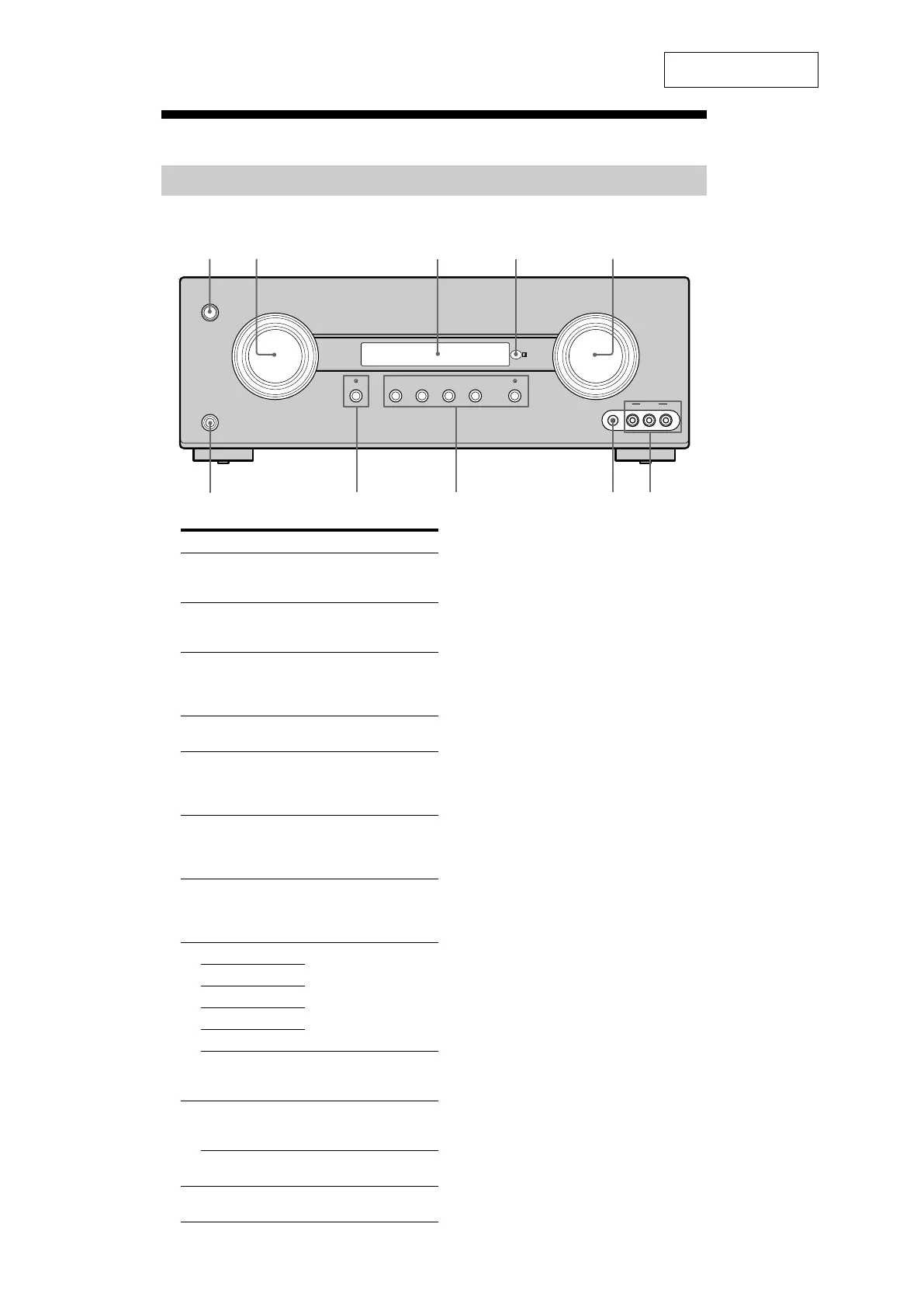

Description and location of parts
Receiver
Front panel
MULTI STEREOGAME
NIGHT MODE
PHONES
MOVIE
A.F.D.
AUTO CAL MIC
VIDEO
L AUDIO R
VIDEO 2 IN
MASTER VOLUMEINPUT SELECTOR
MUSIC
Name Function
" /
(on/standby)
Press to turn the receiver
on or off (page 30, 37, 38,
55, 64).
# INPUT
SELECTOR
Turn to select the input
source to play back (page
35, 37, 38, 61, 63).
$ Display The current status of the
selected component or a
list of selectable items
appears here (page 7).
% Remote sensor Receives signals from
remote commander.
& MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 35, 36,
37, 38).
' VIDEO 2 IN jacks Connect to a portable
audio/video component
such as a camcorder or
video game (page 26, 35).
( AUTO CAL MIC
jack
Connects to the supplied
optimizer microphone for
the Auto Calibration
function (page 31).
) A.F.D. Press to select a sound
field (page 50).
MOVIE
MUSIC
GAME
MULTI STEREO
MULTI STEREO
lamp
Lights up when multi
stereo sound field is
activated.
* NIGHT MODE Press to enjoy sound
effects for watching movie
at night (page 41).
NIGHT MODE
lamp
Lights up when NIGHT
MODE is activated.
+ PHONES jack Connects to headphones
(page 69).
This section is extracted
from instruction manual.
