Sony STR-KM5500 - Exploded View - Front Panel Assembly; Front Panel Assembly Parts Identification

56
STR-KM5500

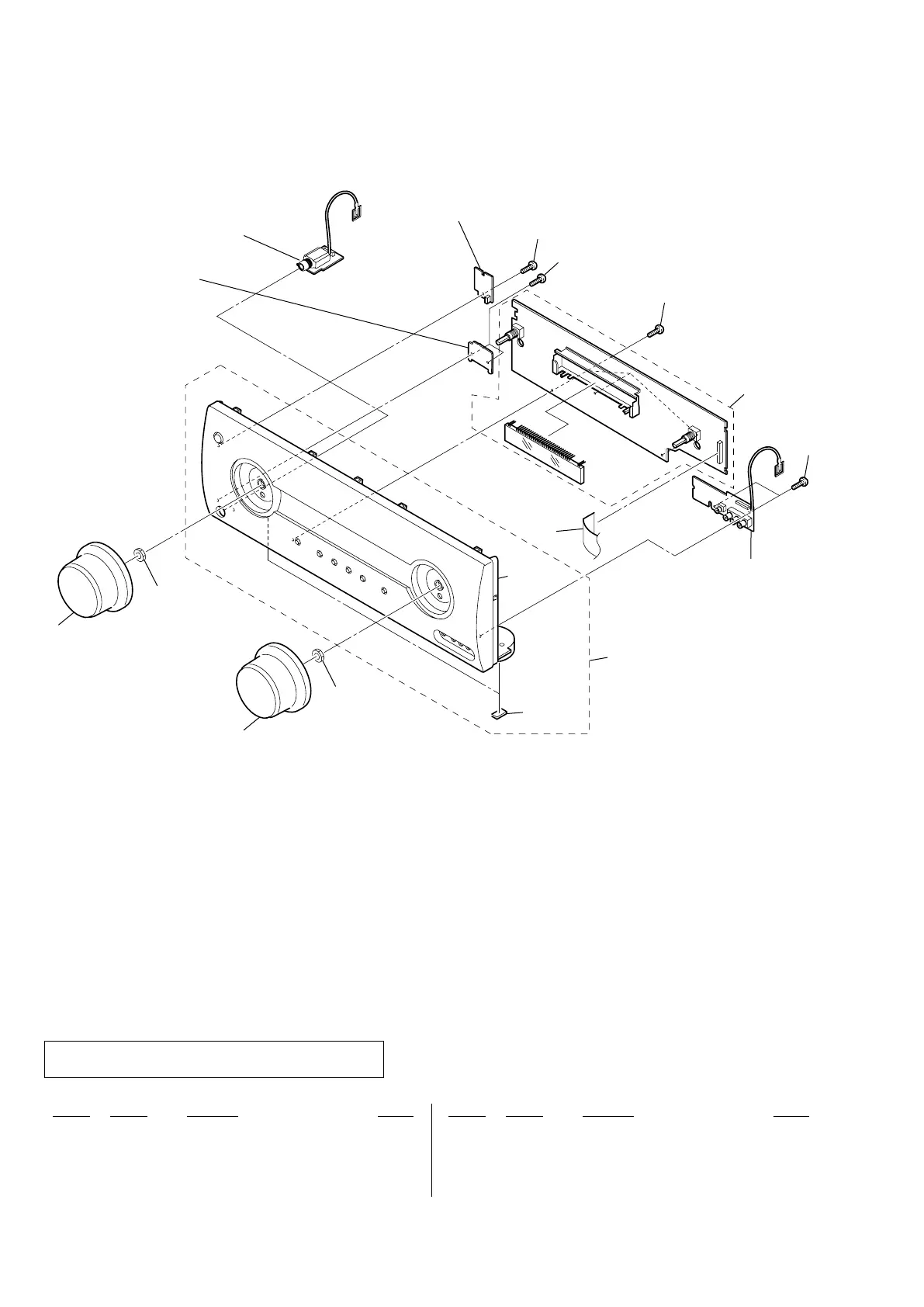

7-2. FRONT PANEL SECTION
not supplied
(HEADPHONE board)
54
54
not supplied
(POWER KEY board)
not supplied
(HP SUPPORT board)
54
55
54
57
56
52
not supplied
supplied with
RV102
53
53
51
supplied with
RV101
51 X-2342-686-1 FRONT PANEL ASSY
52 4-977-358-01 CUSHION
53 4-127-215-01 KNOB, VOLUME
54 3-087-053-01 +BVTP2.6 (3CR)
55 A-1641-554-A DISPLAY BOARD, COMPLETE
56 1-828-372-11 WIRE (FLAT TYPE) (2 CORE)
57 A-1641-555-A VIDEO2 DCAC BOARD, COMPLETE
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If connector, FFC is replaced, install it after bending
it in the same form as that before replacement.
