55
STR-KM5500
SECTION 7
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

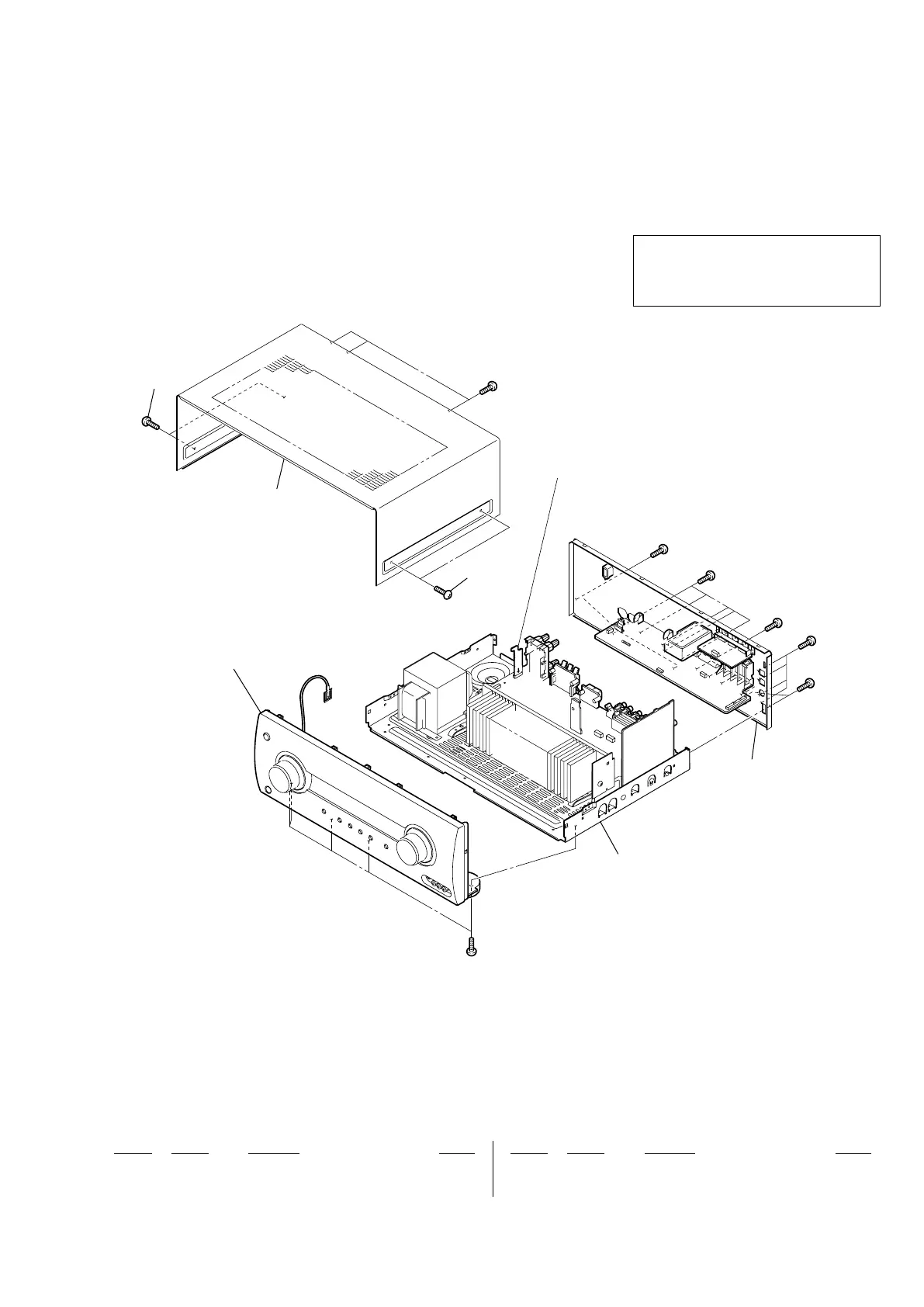

7-1. CASE
#1
#1
#1
#1
#1
#1
#1
1
2
2
front panel section
back panel section
chassis section
not supplied
(LOCK board)
• Abbreviation
AR
: Argentina model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MY : Malaysia model
SAF : South African model
SP : Singapore model
1 2-661-145-52 CASE
2 2-580-630-01 SCREW, +BVST 4X8
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
