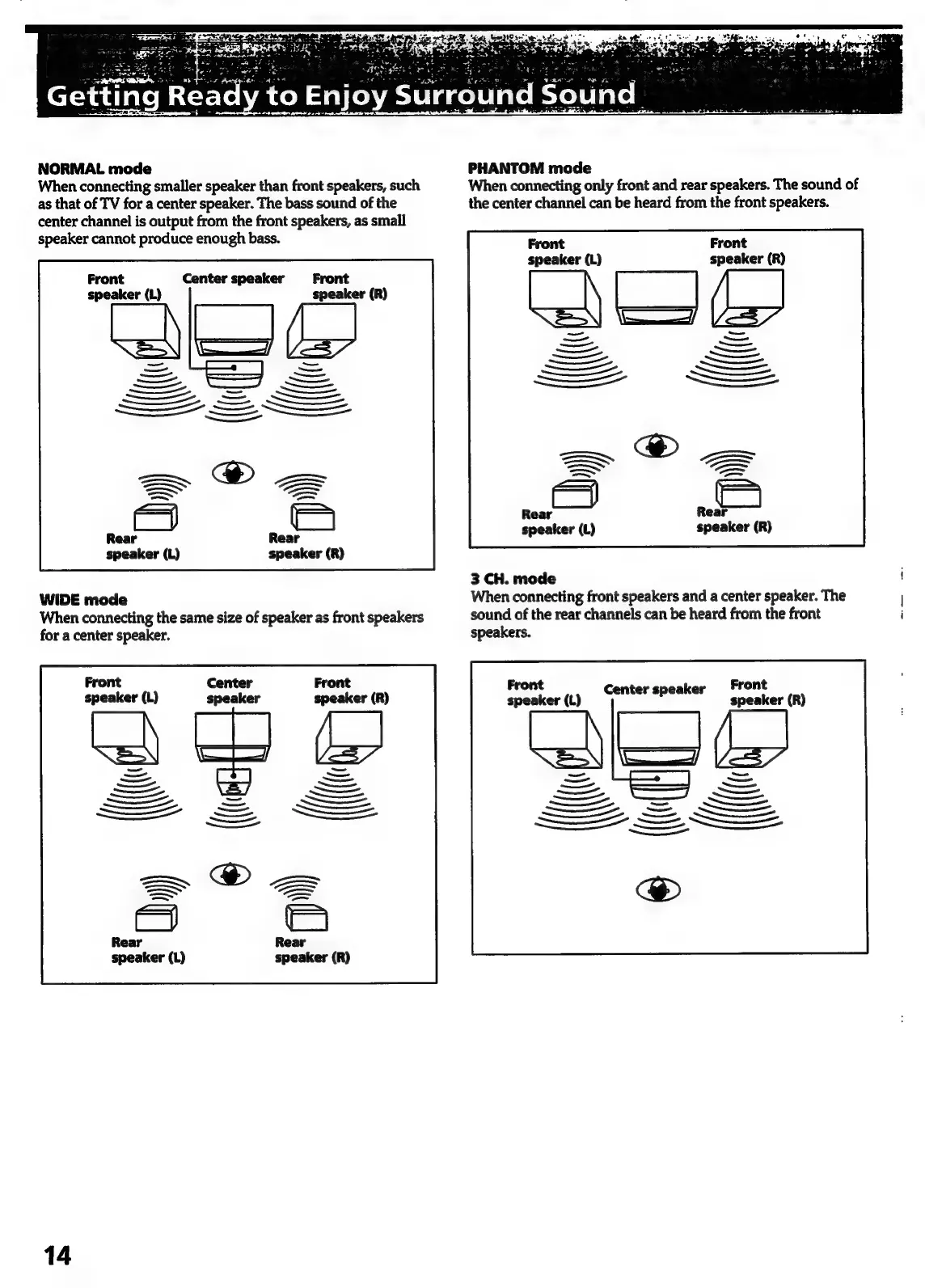

Getting Rea
NORMAL mode
When connecting smaller speaker than front speakers, such
as that of TV for a center speaker. The bass sound of the
center channel is output from the front speakers, as small
speaker cannot produce enough bass.
Front Center speaker Front
speaker (L) speaker (R)
Rear
ear
speaker (L) speaker (R)
WIDE mode
When connecting the same size of speaker as front speakers
for a center speaker.
Center Front
Front
speaker (L) speaker speaker (R)
Rear Rear
speaker (L) speaker (R)
14
PHANTOM mode
When connecting only front and rear speakers. The sound of
the center channel can be heard from the front speakers.
Front
= \ _ (R)
Rear Rear
speaker
(L)
speaker
(R)
3 CH. mode
When connecting front speakers and a center speaker. The
sound of the rear channels can be heard from the front
speakers.
Front Center speaker Front
speaker (L) ii . . speaker (R)
NESN |e! KC”
