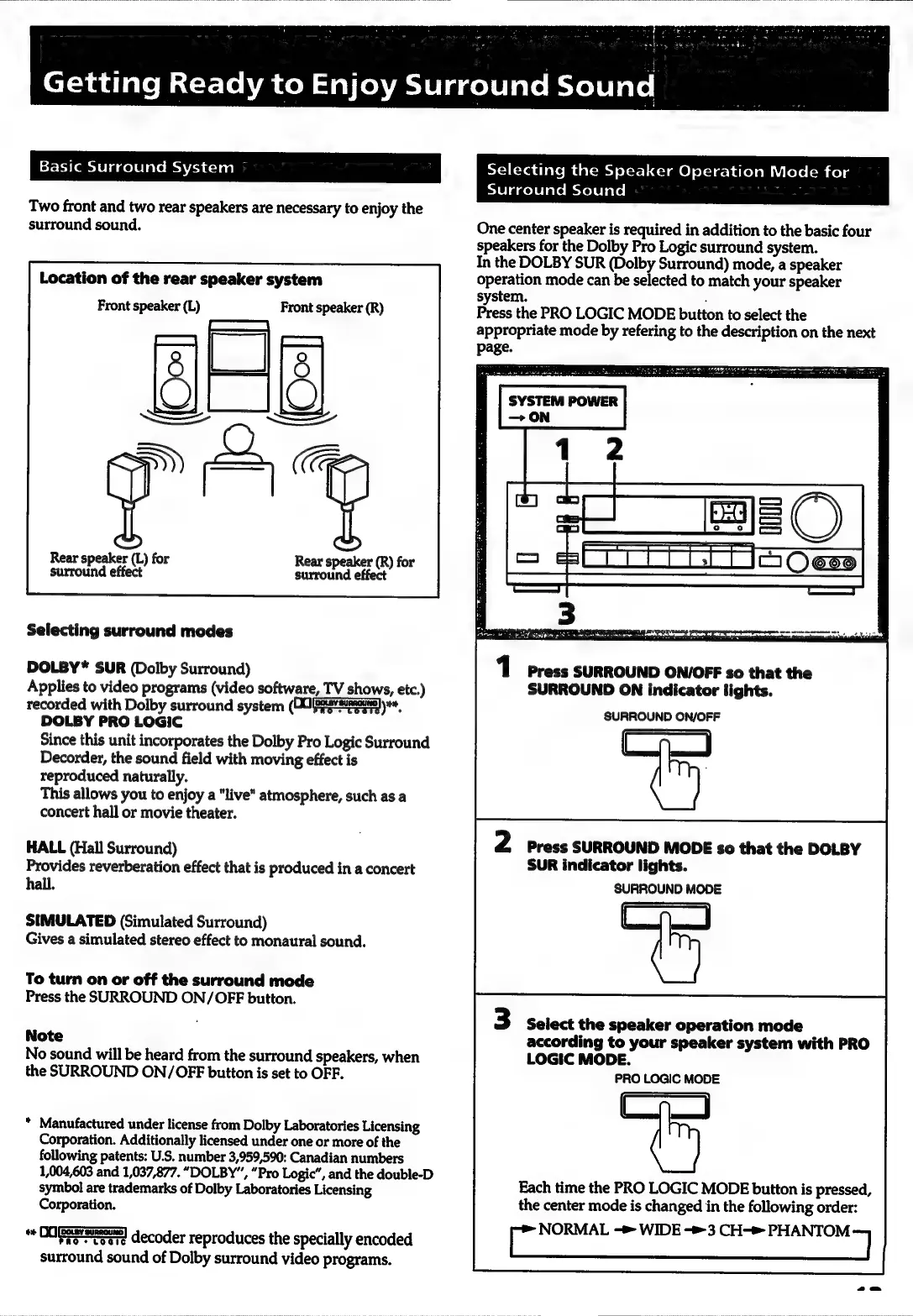

Basic Surround System
Two front and two rear speakers are necessary to enjoy the
surround sound.
Location of the rear speaker system
Front speaker (L) Front speaker (R)
BH
(Cz
SS cA
Rear speaker (L) for
P' er (L)
Rear speaker (R) for
surround
e!
rd
ee
surroun
Selecting surround modes
DOLBY* SUR (Dolby Surround)
Applies to video programs (video software, TV shows, etc.)
recorded with Dolby surround system (OUSSsssts))+«,
DOLBY PRO LOGIC
Since
this
unit
incorporates
the
Dolby
Pro
Logic
Surround
Decorder, the sound field with moving effect is
reproduced naturally.
This allows you to enjoy a "live" atmosphere, such as a
concert hall or movie theater.
HALL (Hall Surround)
Provides reverberation effect that is produced in a concert
hall.
SIMULATED (Simulated Surround)
Gives
a
simulated
stereo
effect
to
monaural
sound.
To turn on or off the surround mode
Press the SURROUND ON/OFF button.
Note
No
sound
will
be
heard
from
the
surround
speakers,
when
the SURROUND ON/OFF button is set to OFF.
*.
Manufactured
under
license
from
Dolby
Laboratories
Licensing
Corporation.
Additionally
licensed
under
one
or
more
of
the
following
patents:
U.S.
number
3,959,590:
Canadian
numbers
1,004,603
and
1,037,877.
“DOLBY”,
“Pro
Logic”,
and
the
double-D
symbol
are
trademarks
of
Dolby
Laboratories
Licensing
Corporation.
+
OOS
teers
decoder
reproduces
the
specially
encoded
surround
sound
of
Dolby
surround
video
programs.
Selecting the Speaker Operation Mode for
elVldgeleialemtol slate,
One center speaker is required in addition to the basic four
speakers for the Dolby Pro Logic surround system.
In the DOLBY SUR (Dolby Surround) mode, a speaker
operation mode can be selected to match your speaker
system. ;
Press the PRO LOGIC MODE buiton to select the
appropriate mode by refering to the description on the next
page.
alt HUE eed ra Rane e to aatas En eon Toc EER Dre |
Press SURROUND ON/OFF so that the
SURROUND ON indicator lights.
SURROUND ON/OFF
Press SURROUND MODE so that the DOLBY
SUR indicator lights.
SURROUND MODE
xi
Select the speaker operation mode
according to your speaker system with PRO
LOGIC MODE.
PRO LOGIC MODE
oO
Each time the PRO LOGIC MODE button is pressed,
the center mode is changed in the following order:
NORMAL -* WIDE ->3 CH-> PHANTOM
