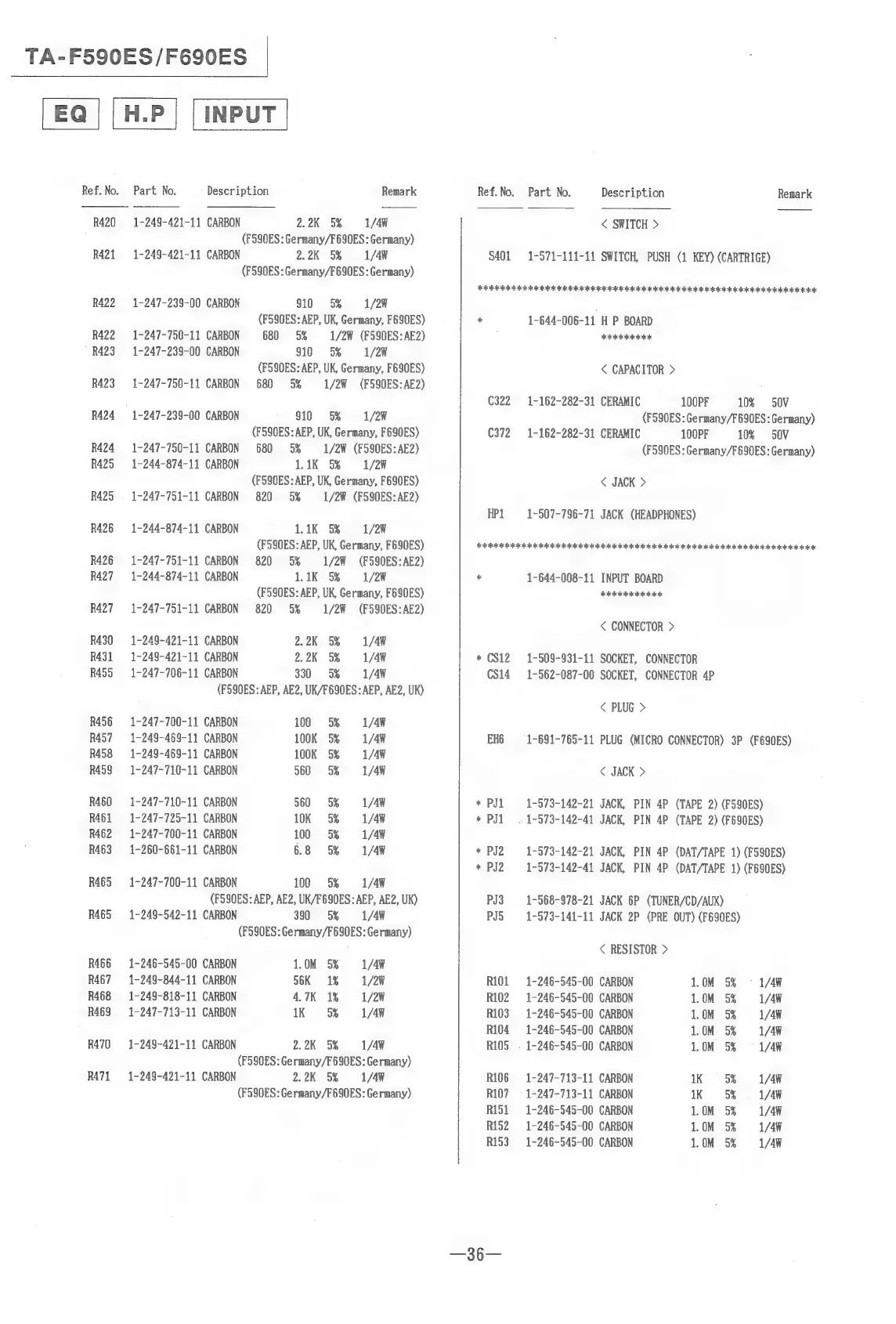

TA-F590ES/F690ES |
[EQ] |H.P | | INPUT |
Ref. No.
R420
R421
R422
R422
R423
R423
R424
R424
R425
R425
R426
R426
R427
R427
R430
R431
R455
R456
R457
R458
R459
R460
R461
R462
R463
R465
R465
R466
R467
R468
R469
R470
R471
Part No. Description Remark
1-249-421-11 CARBON 2.2K 5% 1/48
(F590ES: Germany/F690ES: Germany)
1-249-421-11 CARBON 2.2K 5% 1/48
(F5S0ES: Germany/F 690ES: Germany)
1-247-239-00 CARBON 910 5% 1/28
(F590ES: AEP, UK, Germany, F690ES)
1-247-750-11 CARBON 680 5% 1/2 (F590ES:AE2)
1-247-239-00 CARBON 910 5% 1/28
(F590ES: AEP, UK, Germany, F690ES)
1-247-750-11 CARBON 680 5% 1/2W (F590ES:AE2)
1-247-239-00 CARBON $910 5% 1/2W
(F590ES: AEP, UK, Germany, F690ES)
1-247-750-11 CARBON 680 5% 1/2W (F590ES:AE2)
1-244-874-11 CARBON 1.1K 5% 1/28
(F590ES: AEP, UK, Germany, F6S0ES)
1-247-751-11 CARBON 820 5% 1/2W (F590ES:AE2)
1-244-874-11 CARBON 1.1K 5% 1/2W
(F590ES: AEP, UK, Germany, F690ES)
1-247-751-11 CARBON 820 5% 1/2W (F5S0ES:AE2)
1-244-874-11 CARBON 1.1K 5% 1/26
(F590ES: AEP, UK, Germany, F690ES)
1-247-751-11 CARBON 820 5% 1/2W (F590ES:AE2)
1-249-421-11 CARBON 2.2K 5% 1/4
1-249-421-11 CARBON 2.2K 5% 1/4¥
1-247-706-11 CARBON 330 | 5% 1/48
(F590ES: AEP, AE2, UK/F690ES: AEP, AE2, UK)
1-247-700-11 CARBON 100 5% 1/4W
1-249-469-11 CARBON 100K 5% 1/4W
1-249-469-11 CARBON 100K 5% 1/44
1-247-710-11 CARBON 560 5% 1/48
1-247-710-11 CARBON 560 5% 1/48
1-247-725-11 CARBON 10K 5% 1/4¥
1-247-700-11 CARBON 100 «5% 1/4¥
1-260-661-11 CARBON 6.8 5% 1/4W
1-247-700-11 CARBON 100 5% 1/4
(F590ES: AEP, AE2, UK/F690ES: AEP, AE2, UK)
1-249-542-11 CARBON 390 65% 1/4W
(F590ES: Germany/F690ES: Germany)
1-246-545-00 CARBON 1.0M 5% 1/4¥
1-249-844-11 CARBON 56K = «1% 1/28
1-249-818-11 CARBON 4.7K 1% 1/28
1-247-713-11 CARBON 1K 5% 1/48
1-249-421-11 CARBON 2.2K 5% 1/4¥
(F590ES: Germany/F 690ES: Germany)
1-249-421-11 CARBON 2.2K 5% 1/4¥
(F590ES: Germany/F 690ES: Germany)
Ref.No. Part No. Description Remark
< SWITCH >
S401 1-571-111-11 SWITCH, PUSH (1 KEY) (CARTRIGE)
FI II III III III III IO III RIK
* 1-644-006-11 H P BOARD
FERRER AK
< CAPACITOR >
C322 1-162-282-31 CERAMIC 100PF 10% 50V
(F590ES: Germany/F690ES: Germany)
C372 = =©1-162-282-31 CERAMIC 100PF 10% 50V
(F590ES: Germany/F690ES: Germany)
< JACK >
HPI 1-507-796-71 JACK (HEADPHONES)
FER ICICI ICO III OI III RIO I IO IK
* 1-644-008-11 INPUT BOARD
Je OOO
< CONNECTOR >
* (S12 1-509-931-11 SOCKET, CONNECTOR
CS14 — 1-562-087-00 SOCKET, CONNECTOR 4P
< PLUG >
EH6 =: 1-691-765-11 PLUG (MICRO CONNECTOR) 3P (F690ES)
< JACK >
*
PJ1 1-573-142-21 JACK, PIN 4P (TAPE 2) (F590ES)
PJ1 — 1-573-142-41 JACK, PIN 4P (TAPE 2) (F690ES)
*
* PJ2 —-1-573-142-21 JACK, PIN 4P (DAT/TAPE 1) (F590ES)
PJ2 1-573-142-41 JACK, PIN 4P (DAT/TAPE 1) (F690ES)
*
PJ3 —-1-568-978-21 JACK 6P (TUNER/CD/AUX)
PJ5 1-573-141-11 JACK 2P (PRE OUT) (F690ES)
< RESISTOR >
R101 1-246-545-00 CARBON 1.0M 5% 8 1/4¥
R102 1-246-545-00 CARBON 1.0M 5% = 1/4W
R103 1-246-545-00 CARBON 1.0M 5% 81/48
R104 1-246-545-00 CARBON 1.0M 5% 1/4W
R105 = 1-246-545-00 CARBON 1.0M 5% = 1/4W
R106 = 1-247-713-11 CARBON 1K 65%) 1/48
R107 = 1-247-713-11 CARBON 1K 5% 8 61/4W
R151 1-246-545-00 CARBON 1.0M 5% 1/49
R152 1-246-545-00 CARBON 1.0M 5% 1/49
R153 1-246-545-00 CARBON 1.0M 5% 1/49
