SECTION 4
EXPLODED VIEWS
NOTE:
e@ Items marked “>” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
@ The mechanical parts with no reference
number in the exploded views are not
supplied.

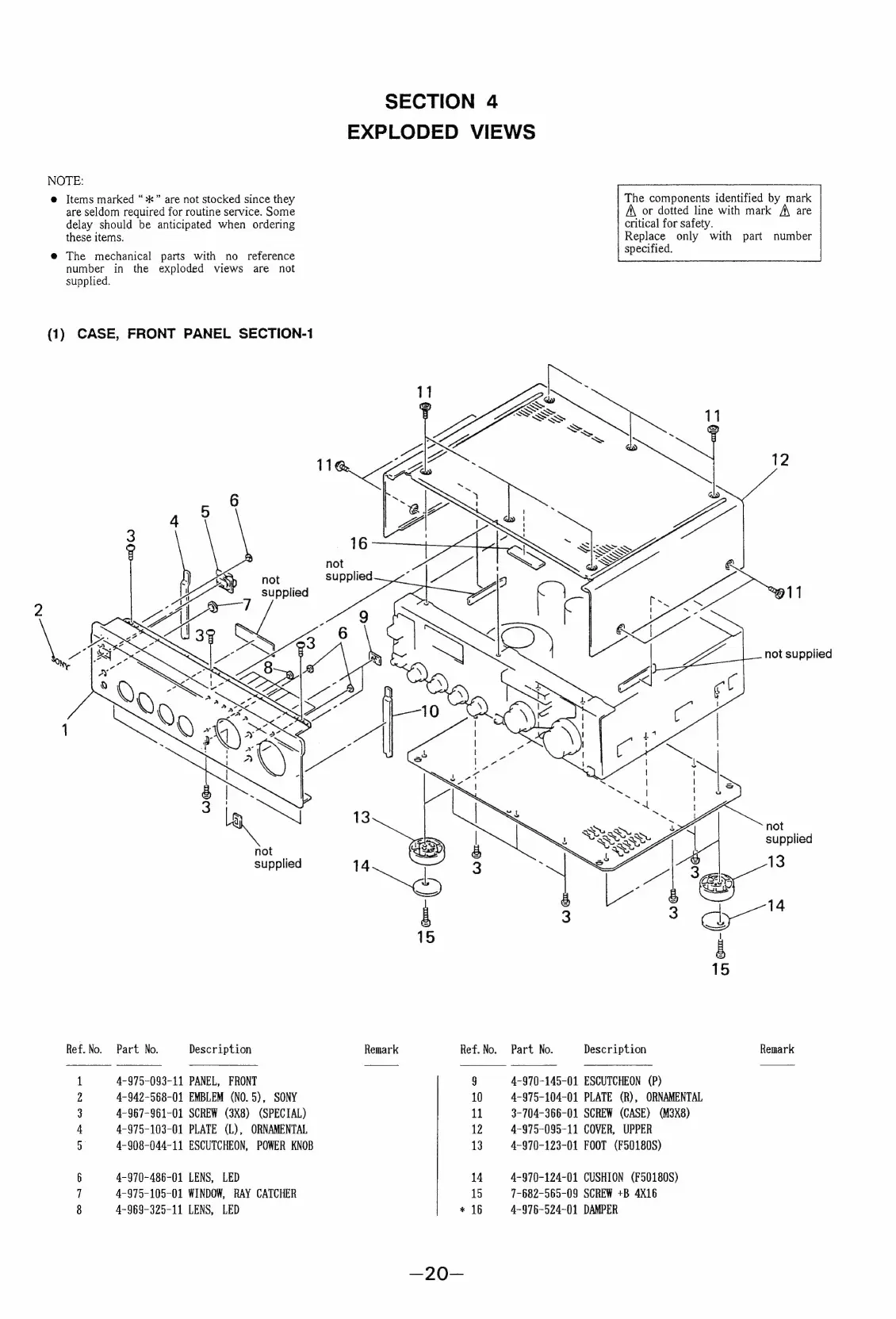

(1) CASE, FRONT PANEL SECTION-1
not supplied
supplied
Ref. No. Part No. Description Remark
4-975-093-11 PANEL, FRONT
4-942-568-01 EMBLEM (NO. 5), SONY
4-967-961-01 SCREW (3X8) (SPECIAL)
4-975-103-01 PLATE (L), ORNAMENTAL
4-908-044-11 ESCUTCHEON, POWER KNOB
on mm ww DS
6 4-970-486-01 LENS, LED
7 4-975-105-01 WINDOW, RAY CATCHER
8 4-969-325-11 LENS, LED
Ref. No.
g
10
11
12
13
14
15
* 16
The components identified by mark
A or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Part No. Description Remark
4-970-145-01 ESCUTCHEON (P)
4-975-104-01 PLATE (R), ORNAMENTAL
3-704-366-01 SCREW (CASE) (M3X8)
4-975-095-11 COVER, UPPER
4-970-123-01 FOOT (F50180S)
4-970-124-01 CUSHION (F50180S)
7-682-565-09 SCREW +B 4X16
4-976-524-01 DAMPER
