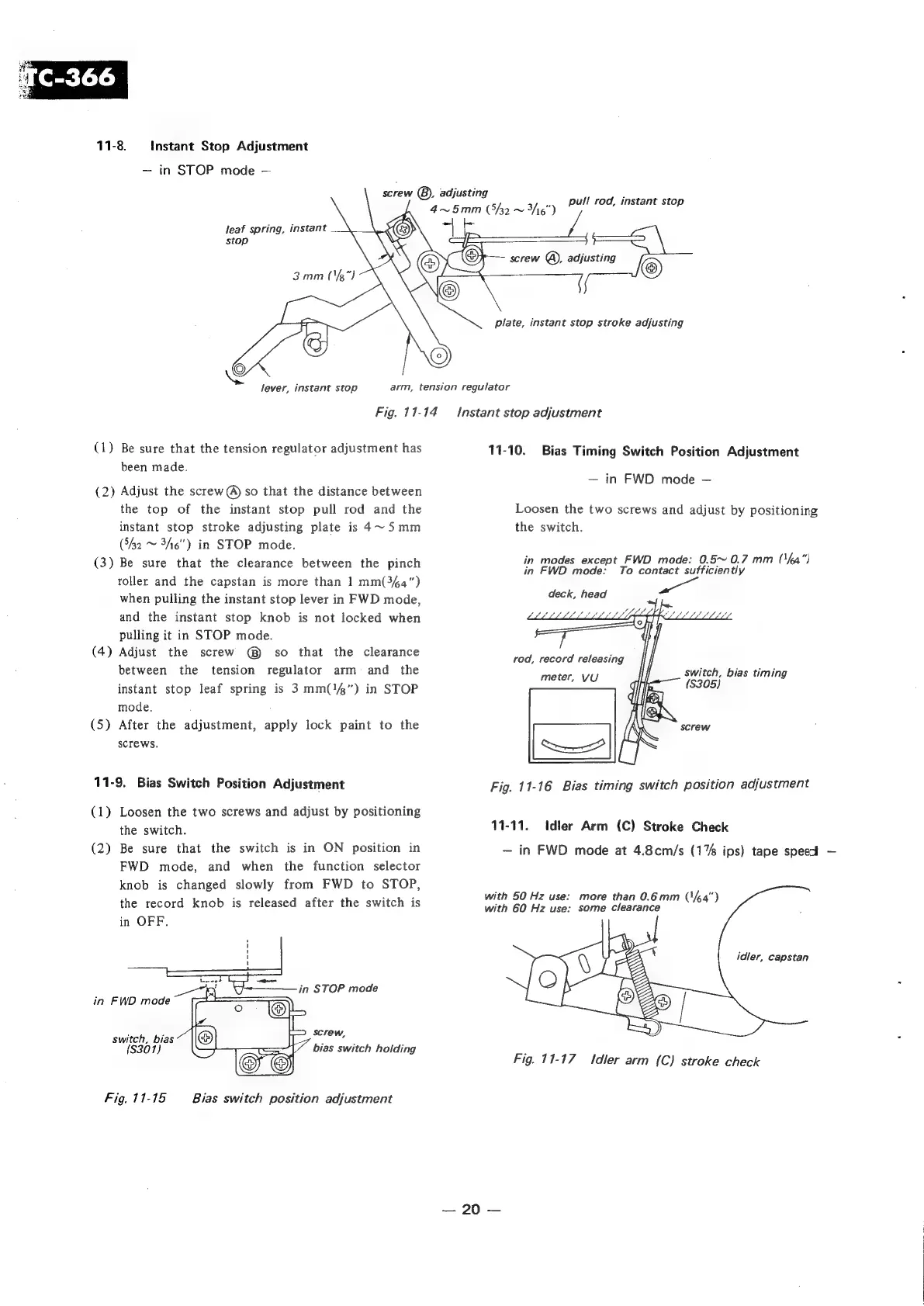

Sony TC-366 - Instant Stop Adjustment

11-8.
Instant Stop Adjustment
— in STOP mode —
leaf spring, instant
ZAR
a Ss
3mm (%")
lever, instant stop
(1) Be sure that the tension regulator adjustment has
been made.
(2) Adjust the screw@ so that the distance between
the top of the instant stop pull rod and the
instant stop stroke adjusting plate is 4~5Smm
(*42 ~ 3/6") in STOP mode.
(3) Be sure that the clearance between the pinch
roller and the capstan is more than 1 mm(344")
when pulling the instant stop lever in FWD mode,
and the instant stop knob is not locked when
pulling it in STOP mode.
(4) Adjust the screw so that the clearance
between the tension regulator arm and the
instant stop leaf spring is 3 mm(14”) in STOP
mode.
(5) After the adjustment, apply lock paint to the
SCIeEWS.
11-9. Bias Switch Position Adjustment
(1) Loosen the two screws and adjust by positioning
the switch.
(2) Be sure that the switch is in ON position in
FWD mode, and when the function selector
knob is changed slowly from FWD to STOP,
the record knob is released after the switch is
in OFF.
in STOP mode
in FWD mode
switch, bias
(S301)
Fig. 11-15 Bias switch position adjustment
screw (8), adjusting
4~5mm (342 ~ ay
=i
pull rod, instant stop
screw @ adjusting
@
if
plate, instant stop stroke adjusting
arm, tension regulator
Fig. 11-14
Instant stop adjustment
11-10. Bias Timing Switch Position Adjustment
— in FWD mode —
Loosen the two screws and adjust by positioning
the switch.
in modes except FWD mode: 0.5~ 0.7 mm (\ea")
in FWD mode: To contact sufficiently
deck, head
PPS LLL SL Lf ff
rod, record releasing
meter, VU switch, bias timing
(S305)
Fig.
11-16
Bias
timing
switch
position
adjustment
11-11. Idler Arm (C) Stroke Check
— in FWD mode at 4.8cm/s (1% ips) tape speed —
with 50 Hz use: more than 0.6mm (1/64")
with 60 Hz use: some Clearance
idler, capstan
Fig.
11-17
Idler
arm
(C)
stroke
check
— 20 —
