Sony TC-366 - Page 19

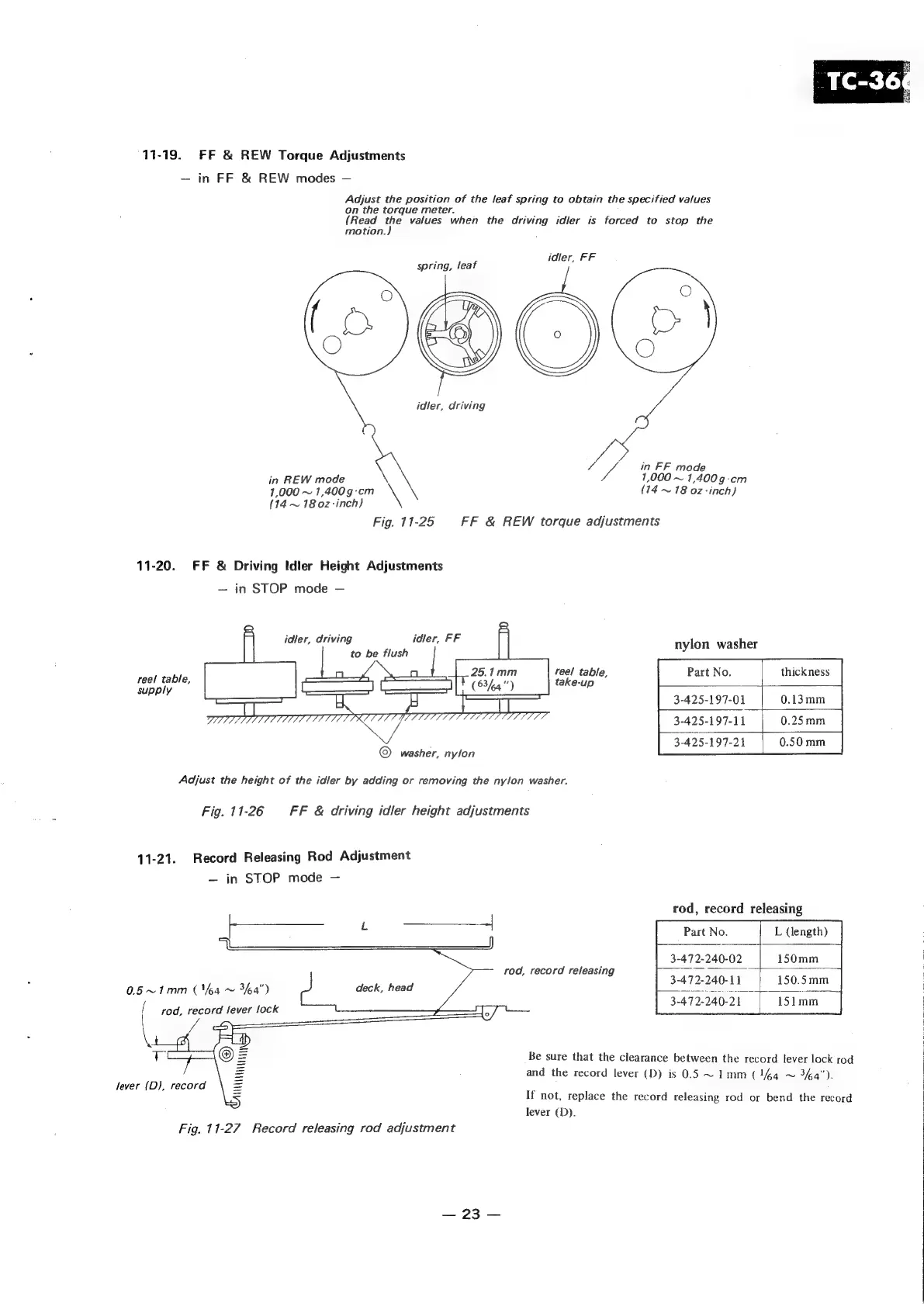

11-19. FF & REW Torque Adjustments
— in FF &R EW modes —
Adjust the position of the leaf spring to obtain the specified values
on the torque meter.
(Read the values when the driving idler is forced to stop the
motion.)
idler, FF
spring, leaf
idler, driving
y x in FF mode
in REW mode \ i 1,000 ~ 1,4009:cm
1,000 ~ 1,400g-cm a (14 ~ 18 oz-inch)
(14 ~ 18 02-inch)
Fig. 11-25 FF & REW torque adjustments
11-20. FF & Driving Idler Height Adjustments
— in STOP mode —
reel table,
supply
Adjust the heigh
Fig. 11-26
nylon washer
reel table, Part No. thickness
take-up
3-425-197-01 0.13mm
3-425-197-11
3-425-197-21
© washer, nylon
t of the idler by adding or removing the nylon washer.
FF & driving idler height adjustments
11-21.
Record
Releasing
Rod
Adjustment
—
in
STOP
mode
—
rod, record releasing
: na Part No. L (length)
05~ 1mm (Yea ~ 364")
{ rod, record fever lock
3-472-240-02 150mm
3-472-240-11 150.5mm
rod, record releasing
deck, head
3-472-240-21
lever {D), record
Be
sure
that
the
clearance
between
the
record
lever
lock
rod
and
the
record
lever
(D)
is
0.5
~
1mm
(1%4
~
364").
If not, replace the record releasing rod or bend the record
lever (D).
Fig. 11-27 Record releasing rod adjustment
|
|
=
