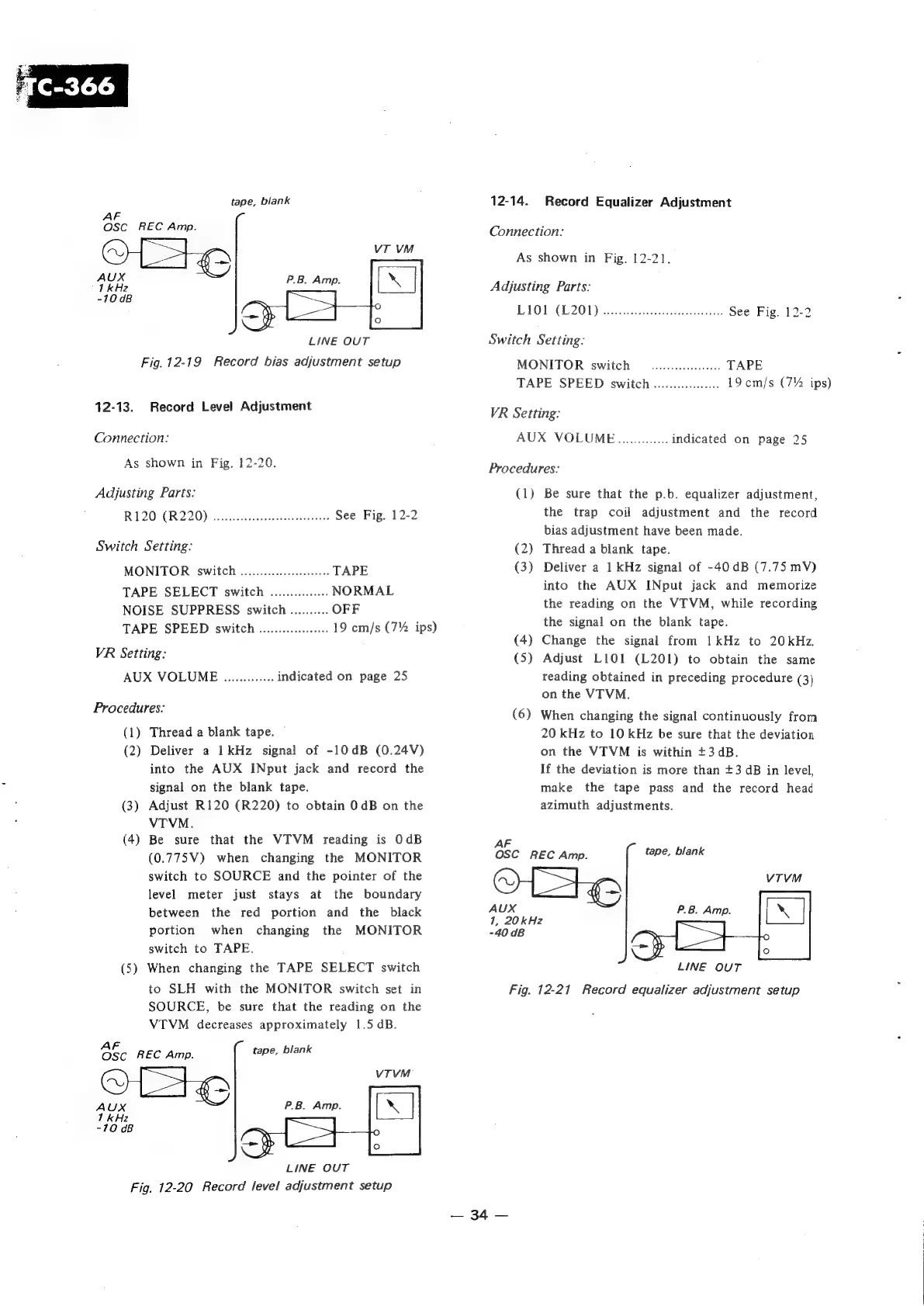

Fig.
12-19
Record
bias
adjustment
setup
12-13.
Record
Level
Adjustment
Connection:
As
shown
in
Fig.
12-20.
Adjusting
Parts:
R120:(R220).....cccmennrsciee.
See
Fig.
12-2
Switch
Setting:
MONITOR
switch
.........cceeeeeeeeees
TAPE
TAPE
SELECT
switch
........0...
NORMAL
NOISE
SUPPRESS
switch
..........
OFF
TAPE
SPEED
switch
...........
19
cm/s
(7%
ips)
VR
Setting:
AUX
VOLUME
.............
indicated
on
page
25
Procedures:
(1)
Thread
a
blank
tape.
(2)
Deliver
a
1
kHz
signal
of
-10dB
(0.24V)
into
the
AUX
INput
jack
and
record
the
signal
on
the
blank
tape.
(3)
Adjust
R120
(R220)
to
obtain
0dB
on
the
VTVM.
(4)
Be
sure
that
the
VITVM
reading
is
O0dB
(0.775V)
when
changing
the
MONITOR
switch
to
SOURCE
and
the
pointer
of
the
level
meter
just
stays
at
the
boundary
between
the
red
portion
and
the
black
portion
when
changing
the
MONITOR
switch
to
TAPE.
(5)
When
changing
the
TAPE
SELECT
switch
to
SLH
with
the
MONITOR
switch
set
in
SOURCE,
be
sure
that
the
reading
on
the
VTVM
decreases
approximately
1.5
dB.
Osc
REC
Amp.
tape,
blank
AUX
1
kHz
-10
dB
LINE
OUT
Fig.
12-20
Record
level
adjustment
setup
12-14.
Record
Equalizer
Adjustment
Connection:
As
shown
in
Fig.
12-21.
Adjusting
Parts:
ICA
Bo
SEG
Ie
6
RE
ate
PER
ee
See
Fig.
12-2
Switch
Setting:
MONITOR
switch
ow...
TAPE
TAPE
SPEED
switch
......0..0.000.
19
cm/s
(7%
ips)
VR
Setting:
AUX
VOLUME.............
indicated
on
page
25
Procedures:
(1)
Be
sure
that
the
p.b.
equalizer
adjustment,
the
trap
coil
adjustment
and
the
record
bias
adjustment
have
been
made.
(2)
Thread
a
blank
tape.
(3)
Deliver
a
1
kHz
signal
of
-40
dB
(7.75
mV)
into
the
AUX
INput
jack
and
memorize
the
reading
on
the
VTVM,
while
recording
the
signal
on
the
blank
tape.
(4)
Change
the
signal
from
1kHz
to
20kHz.
(5)
Adjust
L101
(L201)
to
obtain
the
same
reading
obtained
in
preceding
procedure
(3)
on
the
VTVM.
(6)
When
changing
the
signal
continuously
from
20
kHz
to
10
kHz
be
sure
that
the
deviation
on
the
VTVM
is
within
+3
dB.
If
the
deviation
is
more
than
+3
dB
in
level,
make
the
tape
pass
and
the
record
head
azimuth
adjustments.
AF
OSC
REC
Amp.
tape,
blank
AUX
:
1,
20kHz
-40dB
LINE
OUT
Fig.
12-21
Record
equalizer
adjustment
setup
