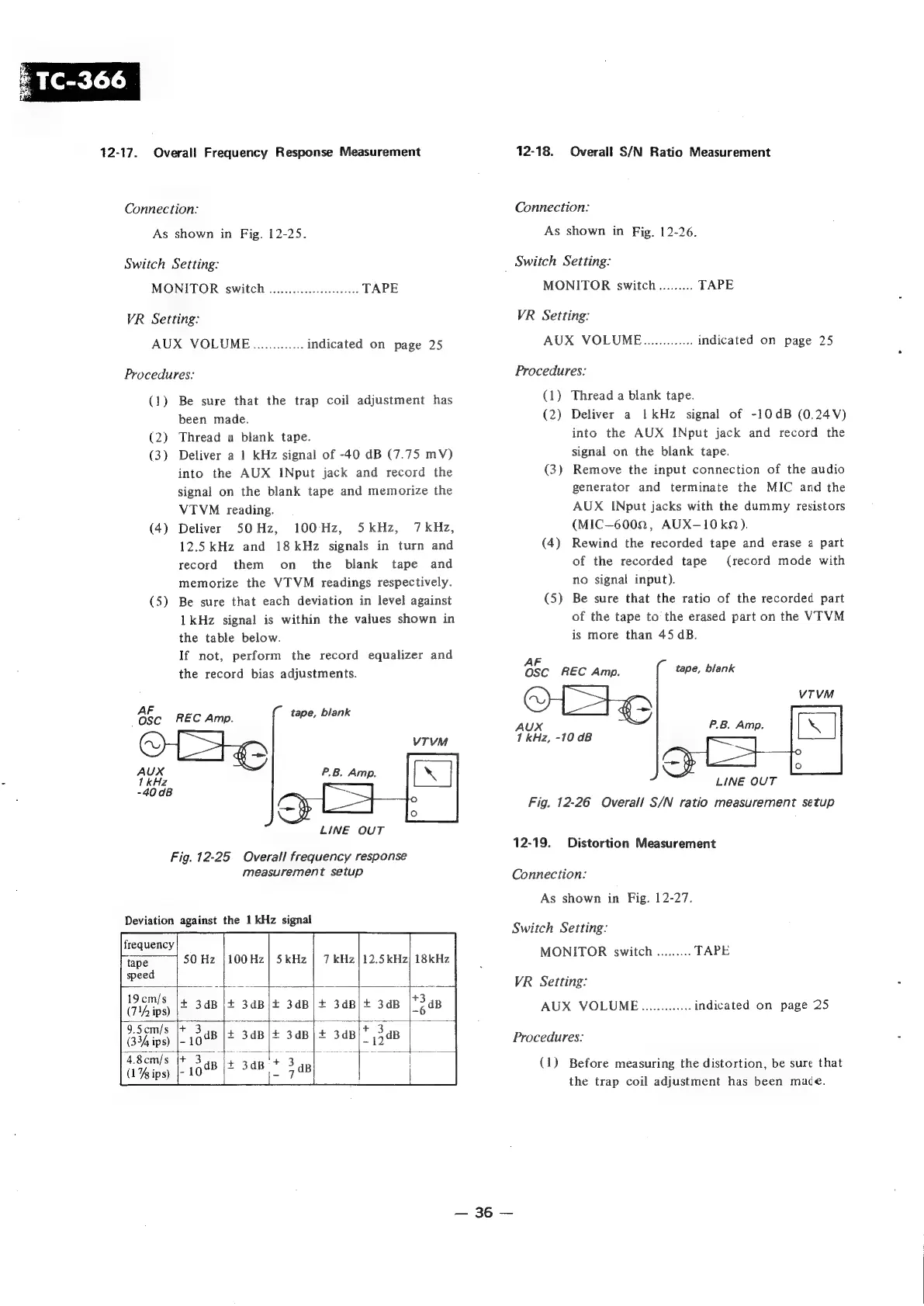

12-17.
Overall
Frequency
Response
Measurement
Connection:
As
shown
in
Fig.
12-25.
Switch
Setting:
MONITOR
switch
0...
TAPE
VR
Setting:
AUX
VOLUME.............
indicated
on
page
25
Procedures:
(1)
Be
sure
that
the
trap
coil
adjustment
has
been
made.
(2)
Thread
a
blank
tape.
(3)
Deliver
a
|
kHz
signal
of
-40
dB
(7.75
mV)
into
the
AUX
INput
jack
and
record
the
signal
on
the
blank
tape
and
memorize
the
VTVM
reading.
(4)
Deliver
50Hz,
100Hz,
5kHz, 7kHz,
12.5kHz
and
18
kHz
signals
in
turn
and
record
them
on
the
blank
tape
and
memorize
the
VTVM
readings
respectively.
(5)
Be
sure
that
each
deviation
in
level
against
1kHz
signal
is
within
the
values
shown
in
the
table
below.
If
not,
perform
the
record
equalizer
and
the
record
bias
adjustments.
noe
REC
Amp.
tape,
blank
OL=he
_
AUX
-40d8
LINE
OUT
Fig.
12-25
Overall
frequency
response
measurement
setup
Deviation
against
the
1
kHz
signal
tape
12.5kHz
speed
19cem/s
|
4.
a
Fe
:
Tips
|
34B
+
34B
9.5cm/s
|+
3
(334
ips)
|-
1098
“4.8cm/s
+
3
(1%
ips)
|-
10
dB
12-18.
Overall
S/N
Ratio
Measurement
Connection:
As
shown
in
Fig,
12-26.
Switch
Setting:
MONITOR
switch.........
TAPE
VR
Setting:
AUX
VOLUME.............
indicated
on
page
25
Procedures:
(1)
Thread
a
blank
tape.
(2)
Deliver
a
|
kHz
signal
of
-10dB
(0.24V)
into
the
AUX
INput
jack
and
record
the
signal
on
the
blank
tape.
(3)
Remove
the
input
connection
of
the
audio
generator
and
terminate
the
MIC
and
the
AUX
INput
jacks
with
the
dummy
resistors
(MIC—6002,
AUX-10k2).
(4)
Rewind
the
recorded
tape
and
erase
a
part
of
the
recorded
tape
(record
mode
with
no
signal
input).
(5)
Be
sure
that
the
ratio
of
the
recorded
part
of
the
tape
to
the
erased
part
on
the
VTVM
is
more
than
45
dB.
tape,
blank
AF
osc
REC
Amp.
AU
1
kHz,
-10
dB
LINE
OUT
Fig.
12-26
Overall
S/N
ratio
measurement
setup
12-19.
Distortion
Measurement
Connection:
As
shown
in
Fig.
12-27.
Switch
Setting:
MONITOR
switch
.........
TAPE
VR
Setting:
AUX
VOLUME.............
indicated
on
page
25
Procedures:
(1)
Before
measuring
the
distortion,
be
sure
that
the
trap
coil
adjustment
has
been
made.
36
