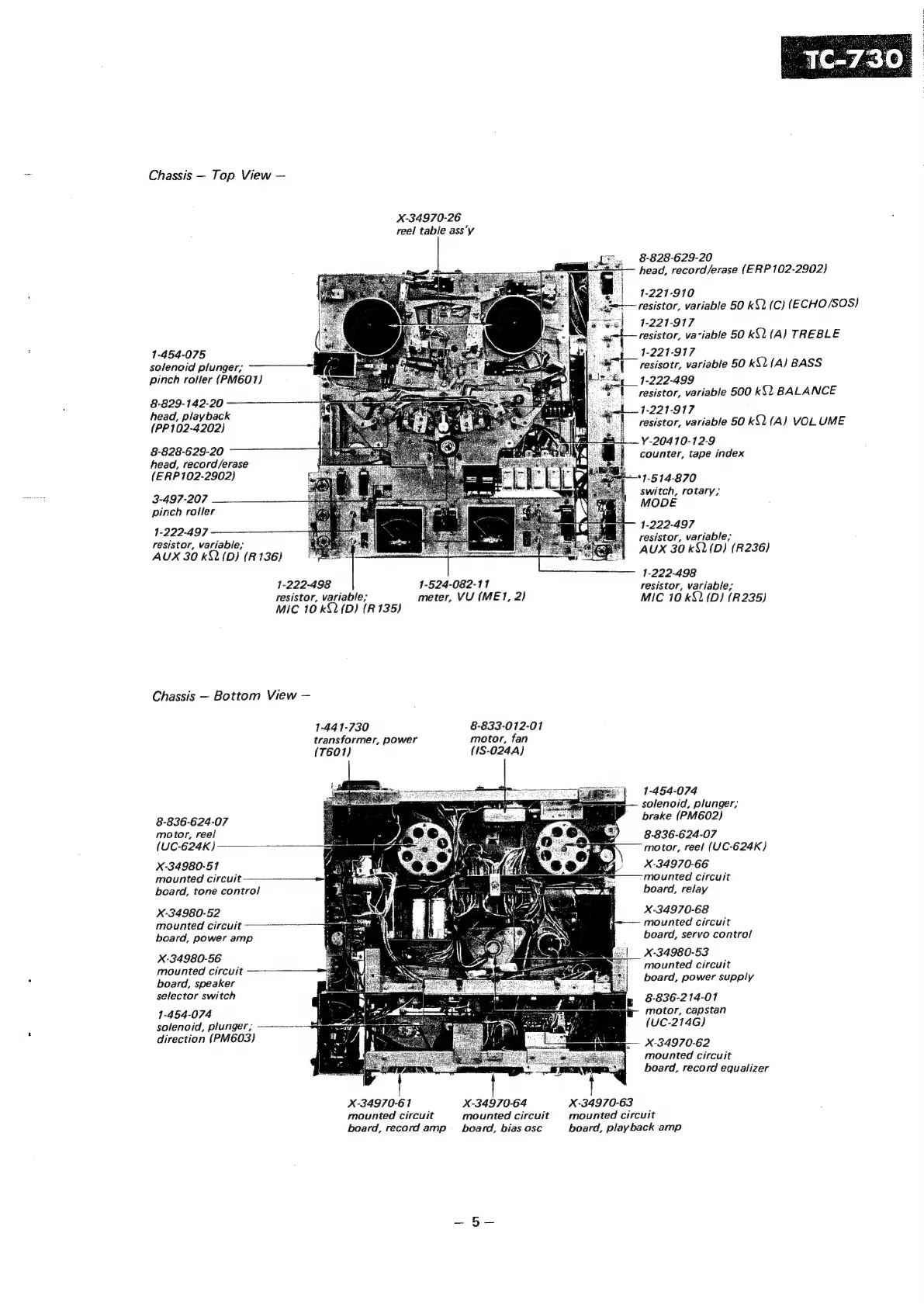

Chassis — Top View —
X-34970-26
reel table ass’y
1-454-075 ;
solenoid plunger; —_—__7al
pinch roller (PM601) j
8-829-142-20 ———
head, playback
(PP102-4202)
8-828-629-20
head, record/erase
{ERP102-2902)
3-497-207
pinch roller
1-222-497
resistor, variable;
AUX 30 kQ.(D) (R136)
1-222-498 1-524-082-11
resistor, variable; meter, VU (ME7, 2)
MIC 10 k82(D) (R135)
Chassis — Bottom View —
1-441-730 8-833-012-01
transformer, power motor, fan
(T601) (1S-024A]}
8-836-624-07
motor, reel
(UC-624K)
X-34980-51
mounted circuit
board, tone control
X-34980-52
mounted circuit ——-——
board, power amp
X-34980-56
mounted circuit
board, speaker
selector switch
1-454-074
solenoid, plunger;
direction (PM603)
X-34970-61 X-34970-64
mounted circuit mounted circuit
board, record amp _ board, bias osc
8-828-629-20
head, record/erase (ERP 102-2902)
171-221-910
S<— resistor, variable 50 kQ.(C) (ECHO/SOS)
171-221-917
" ggrl- resistor, va-iable 50 kKQ. (A) TREBLE
p 1-221-917
42 resisotr, variable 50 k82.(A} BASS
1-222-499
resistor, variable 500 k82 BALANCE
gael 1-221-917
resistor, variable 50 k82. (A) VOLUME
Y-20410-12-9
counter, tape index
—*1-514-870
switch, rotary;
MODE
1-222-497
resistor, variable,
AUX 30 k91{D) (R236)
1-222-498
resistor, variable,
MIC 10 k§2(D) (R235)
1-454-074
solenoid, plunger;
brake (PM602)
8-836-624-07
motor, reel (UC-624K)
X-34970-66
mounted circuit
board, relay
X-34970-68
mounted circuit
board, servo control
X-34980-53
mounted circuit
board, power supply
8-836-214-01
motor, capstan
(UC-214G)
- X-34970-62
mounted circuit
board, record equalizer
mounted circuit
board, playback amp
