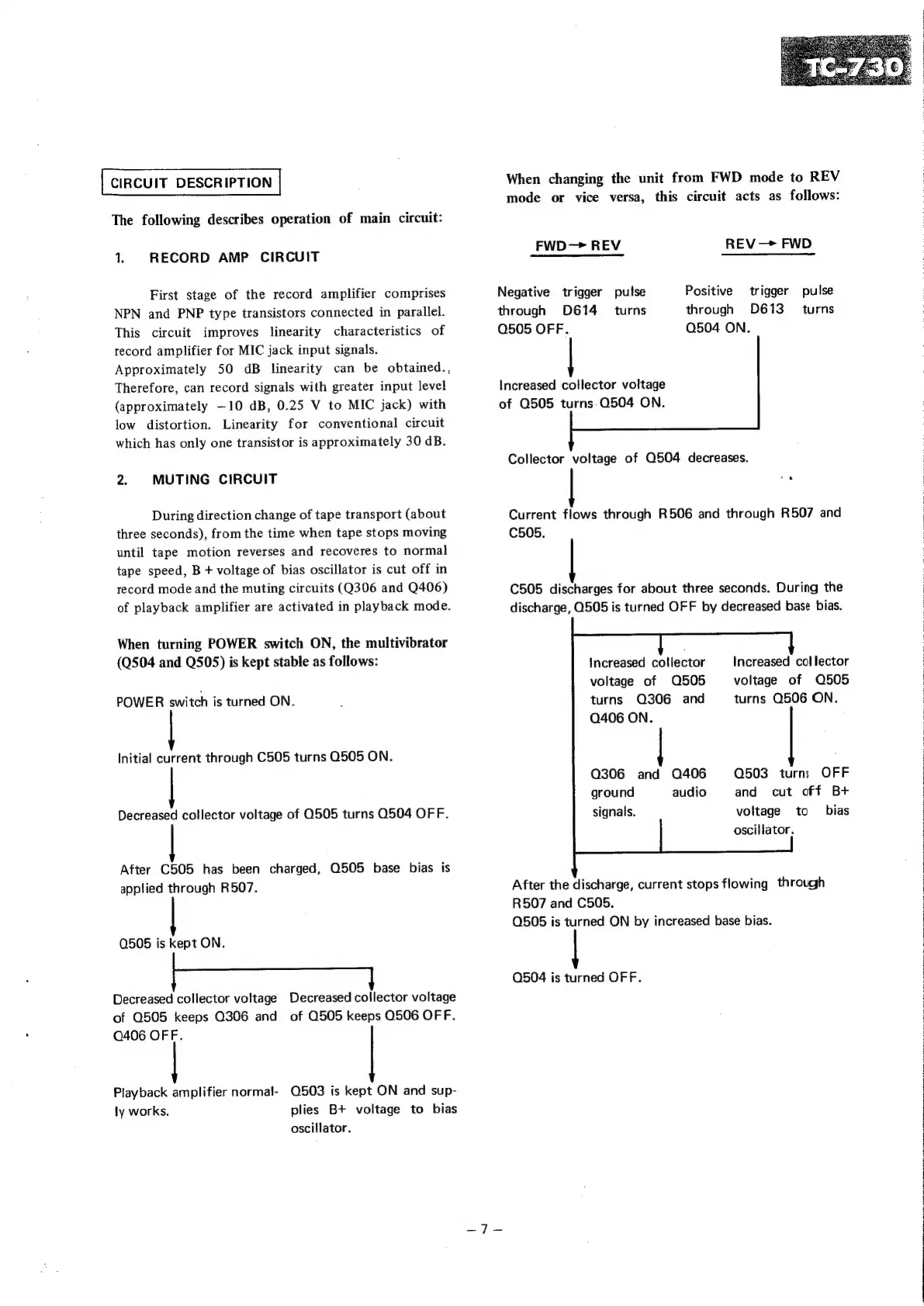

CIRCUIT
DESCRIPTION
The
following
describes
operation
of
main
circuit:
1.
RECORD
AMP
CIRCUIT
First
stage
of
the
record
amplifier
comprises
NPN
and
PNP
type
transistors
connected
in
parallel.
This
circuit
improves
linearity
characteristics
of
record
amplifier
for
MIC
jack
input
signals.
Approximately
50
dB
linearity
can
be
obtained.,
Therefore,
can
record
signals
with
greater
input
level
(approximately
—10
dB,
0.25
V
to
MIC
jack)
with
low
distortion.
Linearity
for
conventional
circuit
which
has
only
one
transistor
is
approximately
30
dB.
2.
MUTING
CIRCUIT
During
direction
change
of
tape
transport
(about
three
seconds),
from
the
time
when
tape
stops
moving
until
tape
motion
reverses
and
recoveres
to
normal
tape
speed,
B
+
voltage
of
bias
oscillator
is
cut
off
in
record
mode
and
the
muting
circuits
(Q306
and
Q406)
of
playback
amplifier
are
activated
in
playback
mode.
When
turning
POWER
switch
ON,
the
multivibrator
(Q504
and
Q505)
is
kept
stable
as
follows:
POWER
switch
is
turned
ON.
Initial
current
through
C505
turns
0505
ON.
Decreased
collector
voltage
of
0505
turns
Q504
OFF.
After
C505
has
been
charged,
Q505
base
bias
is
applied
through
R507.
0505
is
kept
ON.
Decreased
collector
voltage
Decreased
collector
voltage
of
Q505
keeps
0306
and
of
0505
keeps
O506
OFF.
Q406
OFF.
Playback
amplifier
normal-
O503
is
kept
ON
and
sup-
ly
works.
plies
B+
voltage
to
bias
oscillator.
When
changing
the
unit
from
FWD
mode
to
REV
mode
or
vice
versa,
this
circuit
acts
as
follows:
FWD—
REV
REV
FWD
Negative
trigger
pulse
Positive
trigger
pulse
through
D614
turns
through
D613
turns
Q505
OFF.
Q504
ON.
Increased
collector
voltage
of
0505
turns.0504
ON.
Collector
voltage
of
Q504
decreases.
Current
flows
through
R506
and
through
R507
and
C505.
C505
discharges
for
about
three
seconds.
During
the
discharge,
Q505
is
turned
OFF
by
decreased
base
bias.
Increased
collector
voltage
of
O505
turns
Q506
ON.
Increased
collector
voltage
of
Q505
turns
Q306
and
Q406
ON.
Q306
and
Q406 Q503
turns
OFF
ground
audio
and
cut
off
B+
signals.
voltage
to
bias
oscillator.
After
the
discharge,
current
stops
flowing
through
R507
and
C505.
Q505
is
turned
ON
by
increased
base
bias.
0504
is
turned
OFF.
:
:
j
E
é
:
