TC-WE635
– 31 – – 32 –

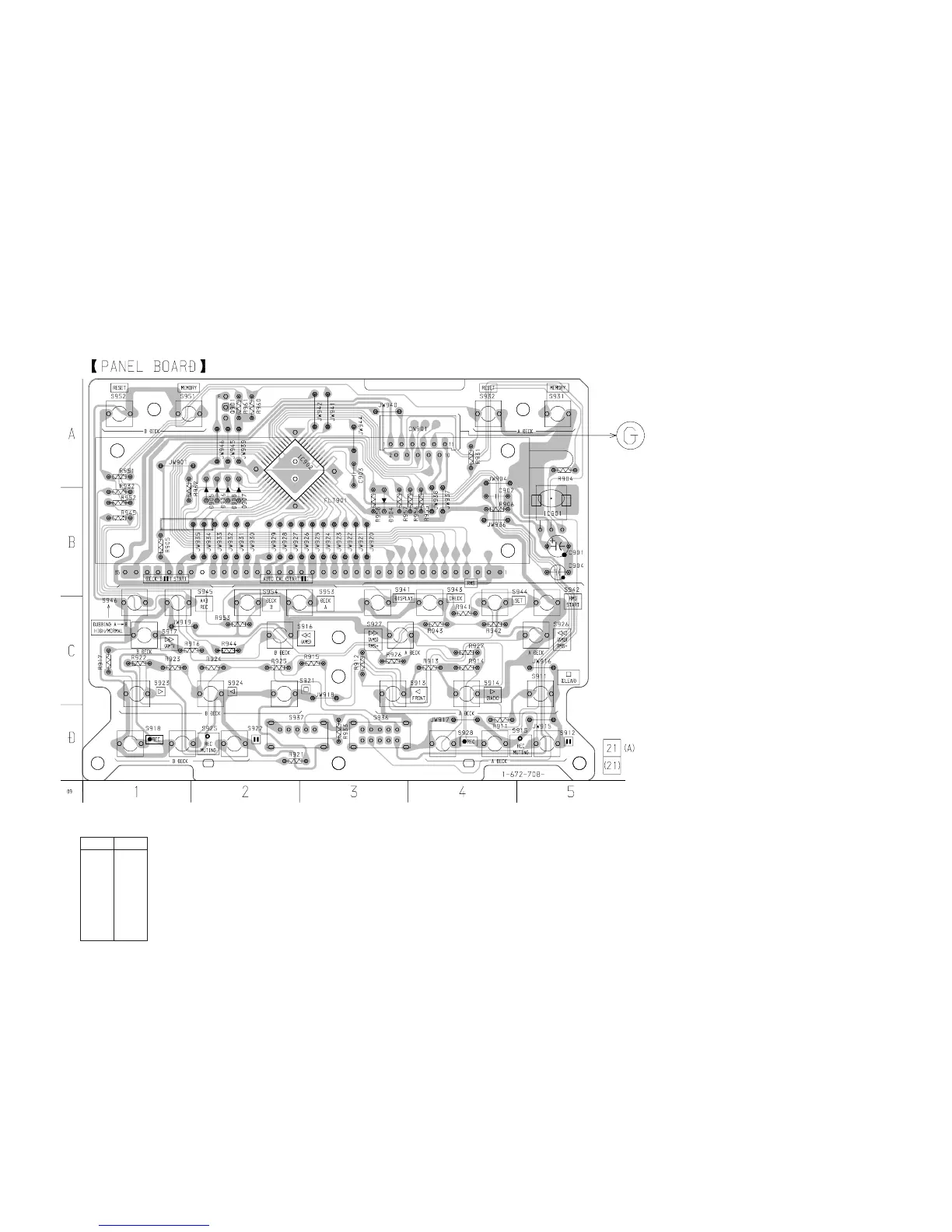

6-10. PRINTED WIRING BOARD – DISPLAY SECTION –
• See page 15 for Circuit Boards Location.
(Page 18)
D904 B-3
D905 B-2
D906 B-2
D906 B-2
D907 B-2
D908 B-2
IC901 B-5
IC902 A-2
Q901 A-2
• Semiconductor
Location
Ref. No. Location
