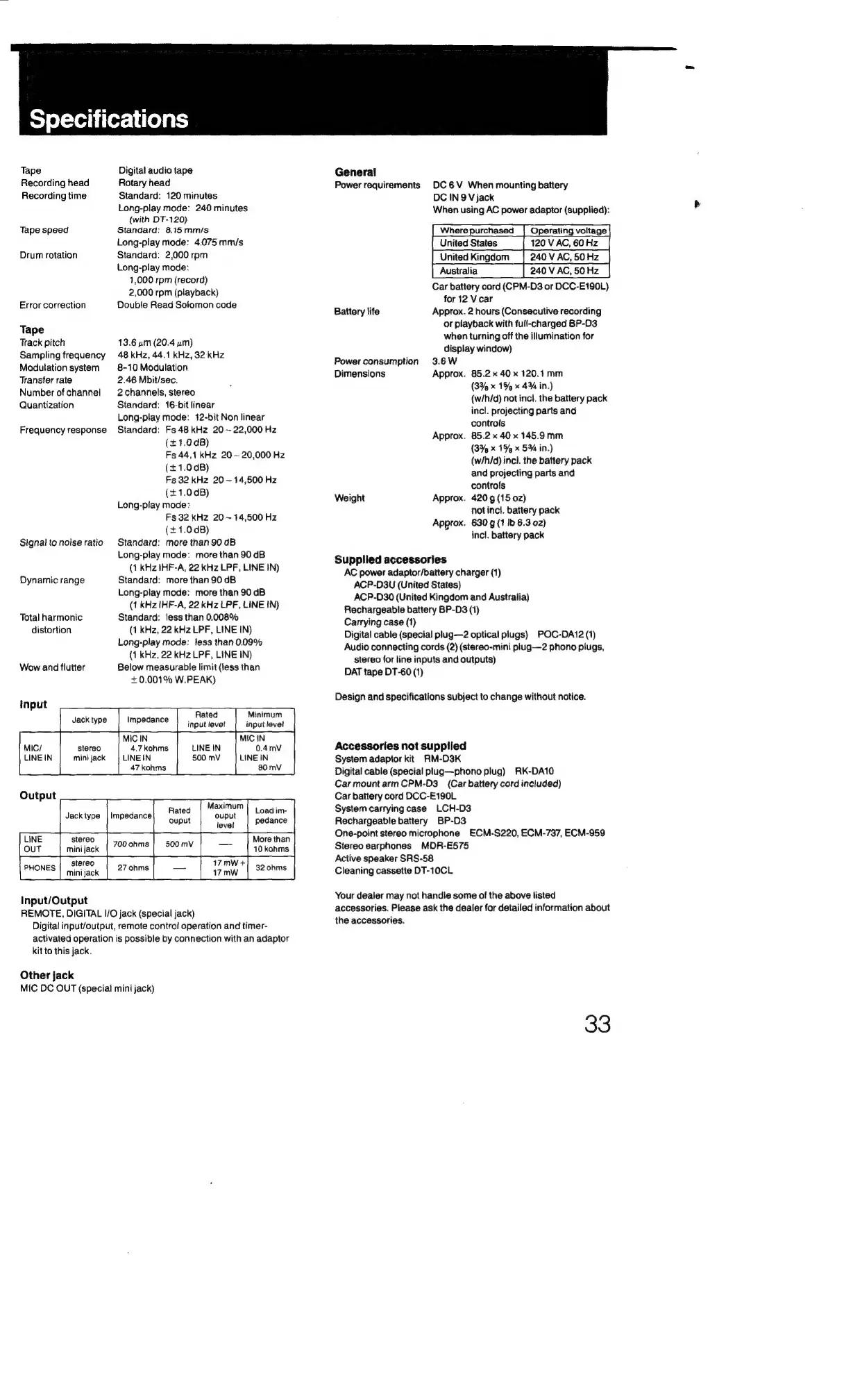

Specifications
Tape Digital audio tape
Recording head Rotary head
Recording time Standard: 120 minutes
Long-play mode: 240 minutes
(with DT-120)
Standard: 8.15 mm/s
Long-play mode: 4.075 mm/s
Standard: 2,000 rpm
Long-play mode:
1,000 rpm (record)
2,000 rpm (playback)
Tape speed
Drum rotation
Error correction Double Read Solomon code
Tape
Track pitch 13.6 pm (20.4 um)
Sampling frequency 48 kHz, 44.1 kHz, 32 kHz
Modulation system 8-10 Modulation
Transfer rate 2.46 Mbit/sec.
Number of channel 2 channels, stereo
Quantization Standard: 16-bit linear
Long-play mode: 12-bit Non linear
Frequency response Standard: Fs48kHz 20~ 22,000 Hz
(+1.0dB)
Fs 44.1 kHz 20~ 20,000 Hz
(+ 1.0 dB)
Fs 32 kHz 20 ~ 14,500 Hz
(+1.0 dB)
Long-play mode:
Fs 32 kHz 20 ~ 14,500 Hz
(+1.0dB)
Signal to noise ratio Standard: more than 90 dB
Long-play mode: more than 90 dB
(1 kHz IHF-A, 22 kHz LPF, LINE IN)
Standard: more than 90 dB
Long-play mode: more than 90 dB
(1 kHz IHF-A, 22 kHz LPF, LINE IN)
Total harmonic Standard: less than 0.008%
distortion (1 KHz, 22 kHz LPF, LINE IN)
Long-play mode: less than 0.09%
(1 kHz, 22 kH2 LPF, LINE IN)
Dynamic range
Wow and flutter Below measurable limit (less than
+0.001% W.PEAK)
Input
Rated Minimum
Jack type input tevel input level
MIC/
LINE IN
stereo
mini jack
MIC IN
4.7 kohms LINE IN
LINE IN 500 mV
47 kohms
Output
Maximum
Jack type | Impedance ouput
_| level
LINE stereo More than
OUT mini jack 700 ohms | — | 10 kohms
stereo
PHONES mini jack 27 ohms 32 ohms
Input/Output
REMOTE, DIGITAL I/O jack (special jack)
Digital input/output, remote control operation and timer-
activated operation is possible by connection with an adaptor
kit to this jack.
Other jack
MIC DC OUT (special mini jack)
General
Power requirements DC6V When mounting battery
DC IN 9 Vjack
When using AC power adaptor (supplied):
Where purchased Operating voltage
Car battery cord (CPM-D3 or DCC-E190L)
for 12 V car
Approx. 2 hours (Consecutive recording
or playback with full-charged BP-D3
when turning off the illumination for
display window)
Power consumption 3.6W
Dimensions Approx. 85.2 x 40 x 120.1 mm
(3% x 15% x 4% in.)
(w/h/d) not incl, the battery pack
incl. projecting parts and
controls
Approx. 85.2 x 40 x 145.9 mm
(3¥e x 15/4 x 5% in.)
(w/h/d) incl. the battery pack
and projecting parts and
controls
Weight Approx. 420g (150z)
not incl. battery pack
Approx. 630 g (1 Ib 6.3 oz)
incl. battery pack
Battery life
Supplied accessories
AC power adaptor/battery charger (1)
ACP-D3U (United States)
ACP-D30 (United Kingdom and Australia)
Rechargeable battery BP-D3 (1)
Carrying case (1)
Digital cable (special plug—2 optical plugs) POC-DA12 (1)
Audio connecting cords (2) (stereo-mini plug—2 phono plugs,
stereo for line inputs and outputs)
DAT tape DT-60 (1)
Design and specifications subject to change without notice.
Accessories not supplied
System adaptor kit RM-D3K
Digital cable (special plug—phono plug) RK-DA10
Car mount arm CPM-D3 (Car battery cord included)
Car battery cord DCC-E190L
System carrying case LCH-D3
Rechargeable battery BP-D3
One-point stereo microphone ECM-S220, ECM-737, ECM-959
Stereo earphones MDR-E575
Active speaker SRS-58
Cleaning cassette DT-10CL
Your dealer may not handle some of the above listed
accessories. Please ask the dealer for detailed information about
the accessories.
