Sony Trinitron CPD-E400 - 6 Exploded Views; Chassis

CPD-E400/E400E/E400P
10 * 1-790-283-21 CABLE ASSY (15P DSUB CONNECTOR)
[E400E, E400P]
11 * 4-045-131-01 STOPPER, CABLE [E400]
11 * 4-045-131-11 STOPPER, CABLE [E400E, E400P]
12 * A-1299-002-A A BOARD, COMPLETE [E400]
12 * A-1299-211-A A BOARD, COMPLETE [E400E]
12 * A-1632-915-A A BOARD, COMPLETE
[E400P made in UK]
12 * A-1632-926-A A BOARD, COMPLETE
[E400P made in Thailand]
13 * 4-072-433-11 CABINET [E400]
13 4-072-437-11 CABINET [E400E]
13 4-072-437-31 CABINET [E400P]
14 1-900-805-51 WIRE ASSY, FOCUS LEAD
15 1-251-642-41 CAP ASSY, HIGH-VOLTAGE
1 * 4-072-434-01 COVER, CABLE [E400]
1 4-072-438-01 COVER, CABLE [E400E, E400P]
2 * 4-394-972-21 CAP, POWER
3 * A-1348-045-A D BOARD, COMPLETE [E400] 5
3 * A-1346-869-A D BOARD, COMPLETE [E400E] 5
3 * A-1642-279-A D BOARD, COMPLETE [E400P] 5
4 * A-1390-957-A N BOARD, COMPLETE [E400]
4 * A-1390-978-A N BOARD, COMPLETE [E400E]
4 * A-1652-076-A N BOARD, COMPLETE [E400P]
5 0 X-4560-174-1 TRANSFORMER ASSY, FLYBACK
(NX4700/J1E4)
6 4-062-115-01 SCREW +P 3.5X20 TYPE2
7 * 4-073-936-01 LABEL, INFORMATION [only E400]
8 0 1-251-382-31 INLET, AC 3P (WITH NOISE FILTER)
9 4-052-345-01 SCREW, (3X8) (+K), TAPPING
10 1-783-982-11 CABLE ASSY (15P DSUB CONNECTOR)
[E400]
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.

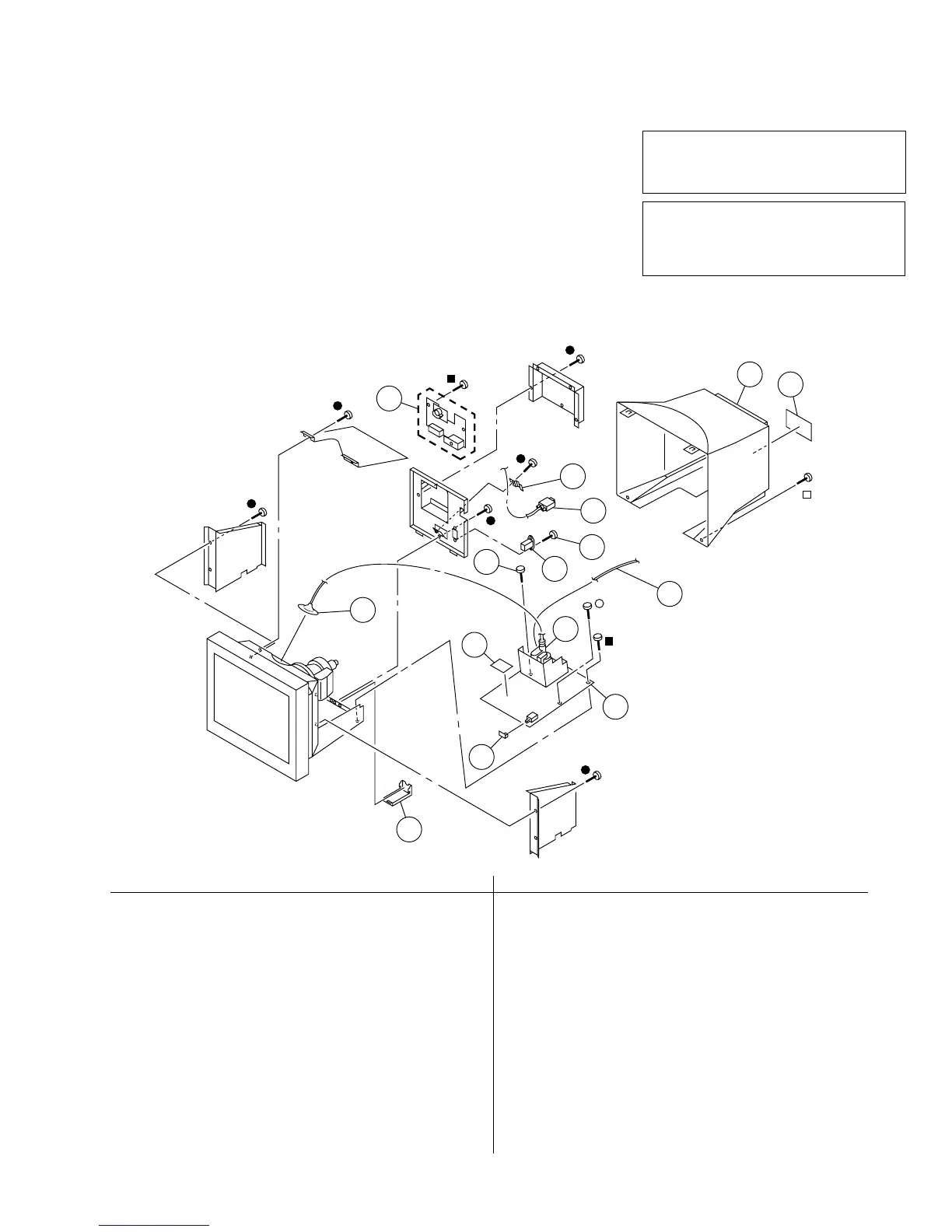

6-1. CHASSIS
z 7-685-881-09 +BVTT 4X8
x 7-685-872-09 +BVTT 3X8
a 7-685-646-79 +BVTP 3X8
s 7-685-663-71 +BVTP 4X16
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-1
SECTION 6
EXPLODED VIEWS
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
10
11
1
12
2
13
7
3
4
15
5
6
8
14
9
#1
#2
#1
#1
#2
#1
#1
#1
#2 #2
#1
#1
