Sony Trinitron CPD-E400 - Picture Tube

CPD-E400/E400E/E400P

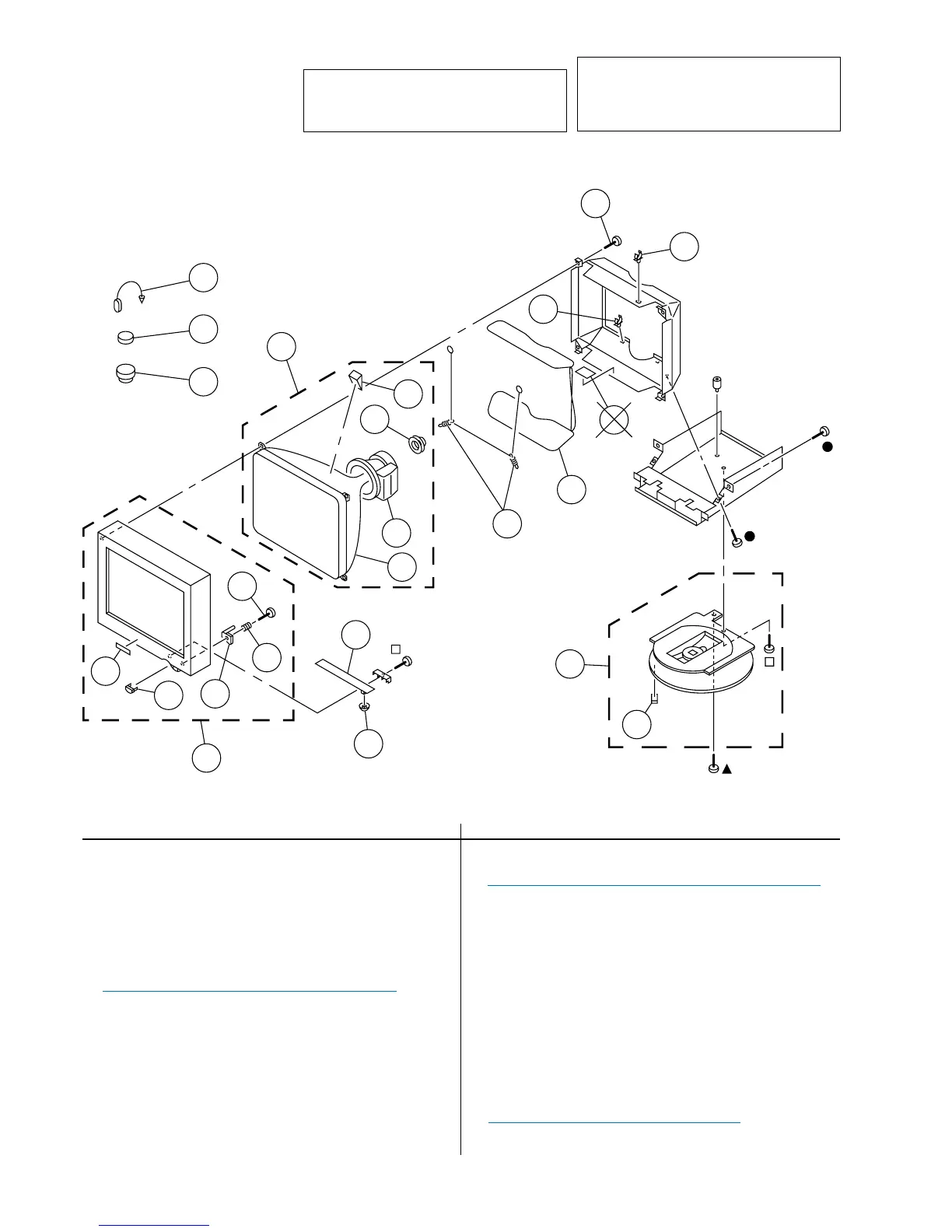

6-2. PICTURE TUBE
z 7-685-881-09 +BVTT 4X8
s 7-685-663-71 +BVTP 4X16
7-685-882-09 +BVTT 4X10
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-2
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
60
71
51
61
72
52
62
75
73
53
56
63
54
64
55
57
70
66
65
74
69
67
58
68
B
51 X-4037-401-1 BEZEL ASSY [E400] 52-56
51 X-4037-315-1 BEZEL ASSY [E400E, E400P] 52-56
52 4-071-152-11 BUTTON, POWER [E400]
52 4-204-957-01 BUTTON, POWER [E400E, E400P]
53 * 4-072-435-01 BAR, EXTENSION [E400]
53 4-072-439-01 BAR, EXTENSION [E400E, E400P]
54 4-070-001-11 SPRING, COMPRESSION [E400]
54 4-205-260-01 SPRING, COMPRESSION [E400E, E400P]
55 4-046-797-01 SCREW (3X12), (+) BVTP
56 4-044-932-31 EMBLEM (NO.8), SONY [E400]
56 4-044-932-11 EMBLEM (NO.8), SONY [E400E, E400P]
57 4-365-808-01 SCREW (5), TAPPING [E400]
57 4-203-648-01 SCREW (5), TAPPING [E400E, E400P]
58 0 8-736-407-61 ITC ASSY (19TKC-R1) 60-62,75
60 0 8-451-284-11 DEFLECTION YOKE Y19TKK-V
61 0 1-452-912-61 NECK ASSEMBLY (NA-2914)
62 4-040-897-01 SPACER, DEFLECTION YOKE [E400]
62 2-162-100-21 SPACER, DEFLECTION YOKE
[E400E, E400P]
63 * 4-061-573-01 SPRING, TENSION [E400]
63 * 4-047-316-01 SPRING, TENSION [E400E, E400P]
64 0 1-419-285-11 COIL, DEGAUSSING
65 4-395-824-01 HOLDER, DEGAUSSING COIL [E400]
65 4-071-175-01 HOLDER, DEGAUSSING COIL
[E400E, E400P]
66 4-041-021-11 HOLDER, DEGAUSE COIL [E400]
66 4-041-021-02 HOLDER, DEGAUSE COIL [E400E, E400P]
67 X-4036-988-1 ASSY, STAND 68
68 * 4-061-996-11 CUSHION
69 4-071-155-01 BUTTON, MENU [E400]
69 4-204-970-01 BUTTON, MENU [E400E, E400P]
70 * A-1372-801-A H BOARD, COMPLETE [E400]
70 * A-1372-744-A H BOARD, COMPLETE [E400E]
70 * A-1646-234-A H BOARD, COMPLETE [E400P]
71 4-308-870-00 CLIP, LEAD WIRE
72 1-452-032-00 MAGNET, DISC
73 1-452-094-00 MAGNET, ROTATABLE DISC; 15mmφ
74 * 4-070-217-01 CUSHION [only E400E]
75 0 8-736-407-05 PICTURE TUBE 19TKC (SDP)
#1
#2
#1
#3
#3
#3
