Sony TRINITRON CPD-G500 - Exploded View: Picture Tube Assembly; Picture Tube Components Exploded View

CPD-G500
60
70
51
61
71
52
62
72
53
63
73
54
64
74
55
65
75
56
66
76
57
67
58
68
59
69

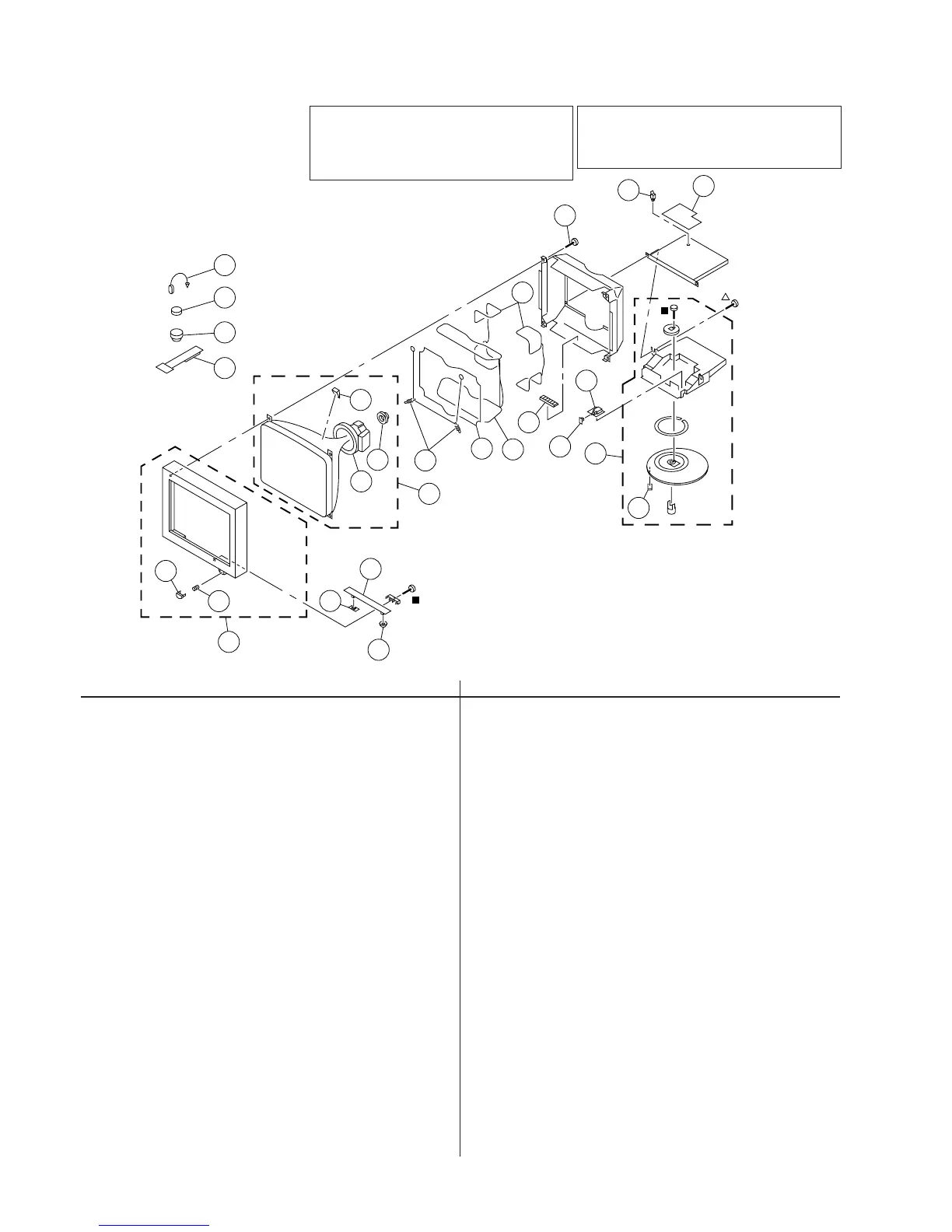

6-2. PICTURE TUBE
p 7-685-663-71 +BVTP 4X16
¢ 7-685-881-09 +BVTT 4X8
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-2
51 X-4036-843-1 BEZEL ASSY 52, 53
[U/C, AEP, SH, EQ for Japan-made set]
51 X-4036-928-1 BEZEL ASSY 52, 53
[U/C for Mexico-made set]
51 X-4036-914-1 BEZEL ASSY 52, 53
[AEP for UK-made set]
52 4-070-660-01 BUTTON, POWER
[U/C, AEP, SH, EQ for Japan-made set]
52 4-071-152-01 BUTTON, POWER [U/C for Mexico-made set]
52 4-204-957-01 BUTTON, POWER [AEP for UK-made set]
53 3-635-339-01 SPRING, COMPRESSION
[Except U/C for Mexico-made set]
53 3-653-339-21 SPRING, COMPRESSION
[U/C for Mexico-made set]
54 4-071-112-01 SELECTION, INPUT
[U/C, AEP, SH, EQ for Japan-made set]
54 4-071-489-01 SELECTOR, INPUT [U/C for Mexico-made set]
54 4-071-453-01 KNOB, INPUT SELECTION
[AEP for UK-made set]
55 4-070-665-01 BUTTON, MENU
[U/C, AEP, SH, EQ for Japan-made set]
55 4-071-155-01 BUTTON, MENU [U/C for Mexico-made set]
55 4-204-970-01 BUTTON, MENU [AEP for UK-made set]
56 * A-1372-682-A H1 BOARD, COMPLETE
[U/C, AEP, SH, EQ for Japan-made set]
56 * A-1372-691-A H1 BOARD, COMPLETE
[U/C for Mexico-made set]
56 * A-1372-690-A H1 BOARD, COMPLETE
[AEP for UK-made set]
57 * 4-394-972-21 CAP, POWER
58 X-4036-844-2 STAND ASSY 59
59 * 4-061-996-11 CUSHION
60 8-738-813-61 ITC ASSY (21TKC-R1) [U/C, AEP] 61-63
60 8-738-821-61 ITC ASSY (21TKC-RS1) 61-63
[SH, EQ for Japan-made set]
61 8-451-509-11 DEFLECTION YOKE (Y21TKM-M)
62 ! 1-452-912-61 NECK ASSEMBLY (NA-2914)
63 2-162-100-21 SPACER, DEFLECTION YOKE
64 * 4-047-316-01 SPRING, EXTENSION
[Except U/C for Mexico-made set]
64 * 4-061-573-01 SPRING, TENSION [U/C for Mexico-made set]
65 ! 1-419-130-21 COIL, LANDING CORRECTION
66 ! 1-419-128-21 COIL, DEGAUSSING
67 ! 1-419-129-21 COIL, LANDING CORRECTION
68 4-062-670-01 SPACER, PICTURE TUBE
69 4-365-808-01 SCREW (5), TAPPING
70 4-070-730-01 HOLDER, PRINTED CIRCUIT BOARD
71 * A-1394-946-C N BOARD, COMPLETE
[U/C, AEP, SH, EQ for Japan-made set]
71 * A-1394-951-A N BOARD, COMPLETE
[U/C for Mexico-made set]
71 * A-1394-950-A N BOARD, COMPLETE [AEP for UK-made set]
72 * A-1388-250-A J BOARD, COMPLETE
[U/C, AEP, SH, EQ for Japan-made set]
72 * A-1388-261-A J BOARD, COMPLETE
[U/C for Mexico-made set]
72 * A-1388-260-A J BOARD, COMPLETE [AEP for UK-made set]
73 4-308-870-00 CLIP, LEAD WIRE
74 1-452-032-00 MAGNET, DISK; 10mm ø
75 1-452-094-00 MAGNET, ROTATABLE DISK; 15mm ø
76 4-051-736-21 PIECE A(90), CONV. CORRECT
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
