Getting Started
4
-EN

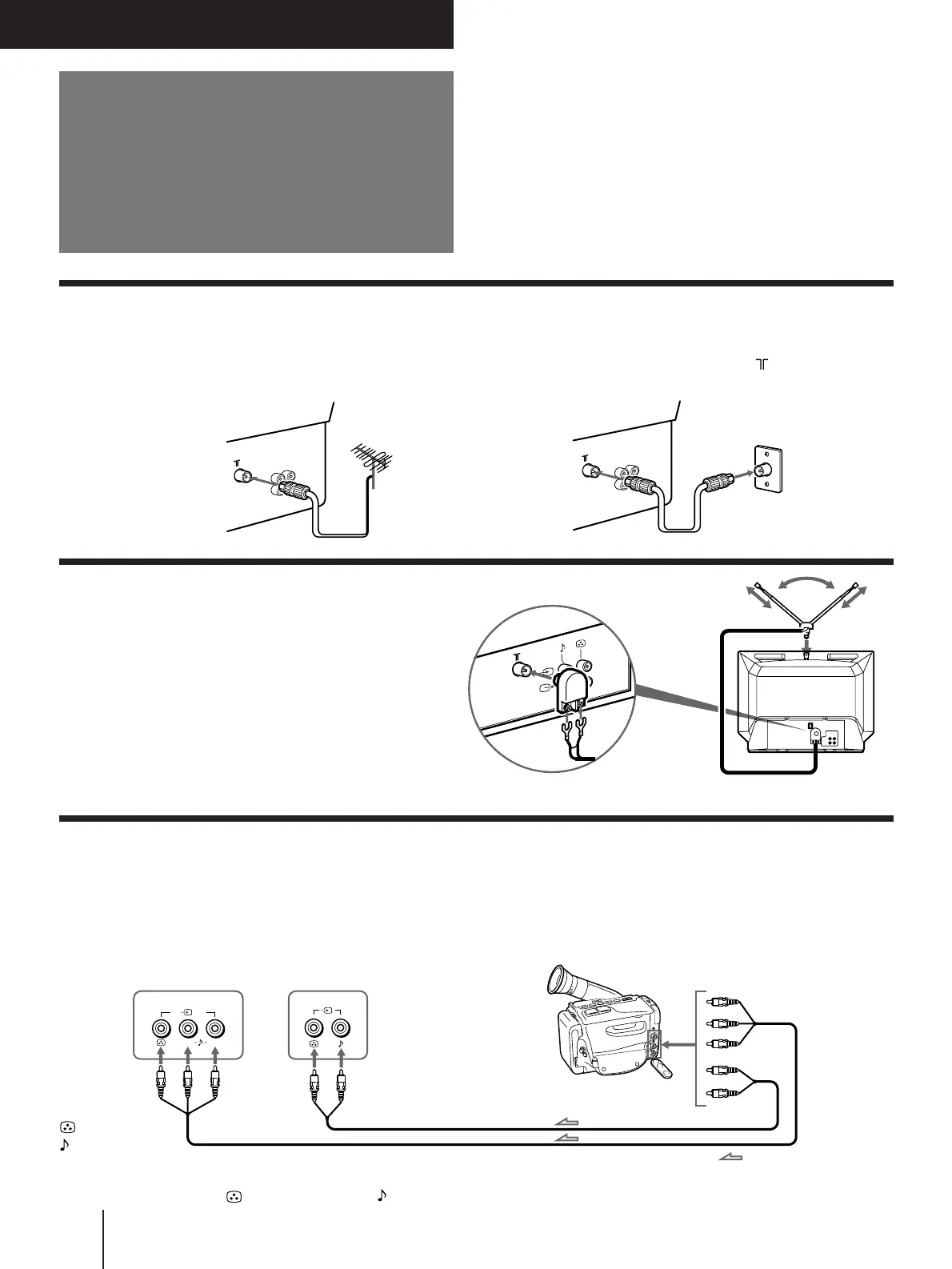

Connecting a VHF antenna or a combination VHF/UHF antenna
— 75-ohm coaxial cable (round)
Attach an optional IEC antenna connector to the 75-ohm coaxial cable. Plug the connector into the (antenna) socket
at the rear of the TV.
Connections
Getting Started
When connecting monaural audio/video equipment to model KV-J21MF2J
Connect the yellow plug to and the black plug to -L (MONO).
Rear of TV
or
Rear of TV
On a wall
L(MONO) R
: Signal flow
to
…
(video input)
(video) and
(audio) inputs
p KV-J21MF2J
p KV-2199M5J/J14M1J
Camcorder
to video and
audio outputs
Front of TV
Connecting optional equipment
You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video
game or stereo system.
Connecting video equipment using the … (video input) jacks
2
1
3
Connecting an indoor antenna
Notes
• You are advised to use an outdoor antenna for better reception.
• Model KV-J14M1J is used for illustration purposes, however, the connection procedure is the same for KV-2199M5J and KV-J21MF2J.
