Sony TRINITRON KV-21PM2 - Page 16

KV-21PS2/21RS22C/21RS50/21RS50C/21SD2 (RM-Y145)
KV-21PM2/21R22/21R22C/21RD2 (RM-Y146)

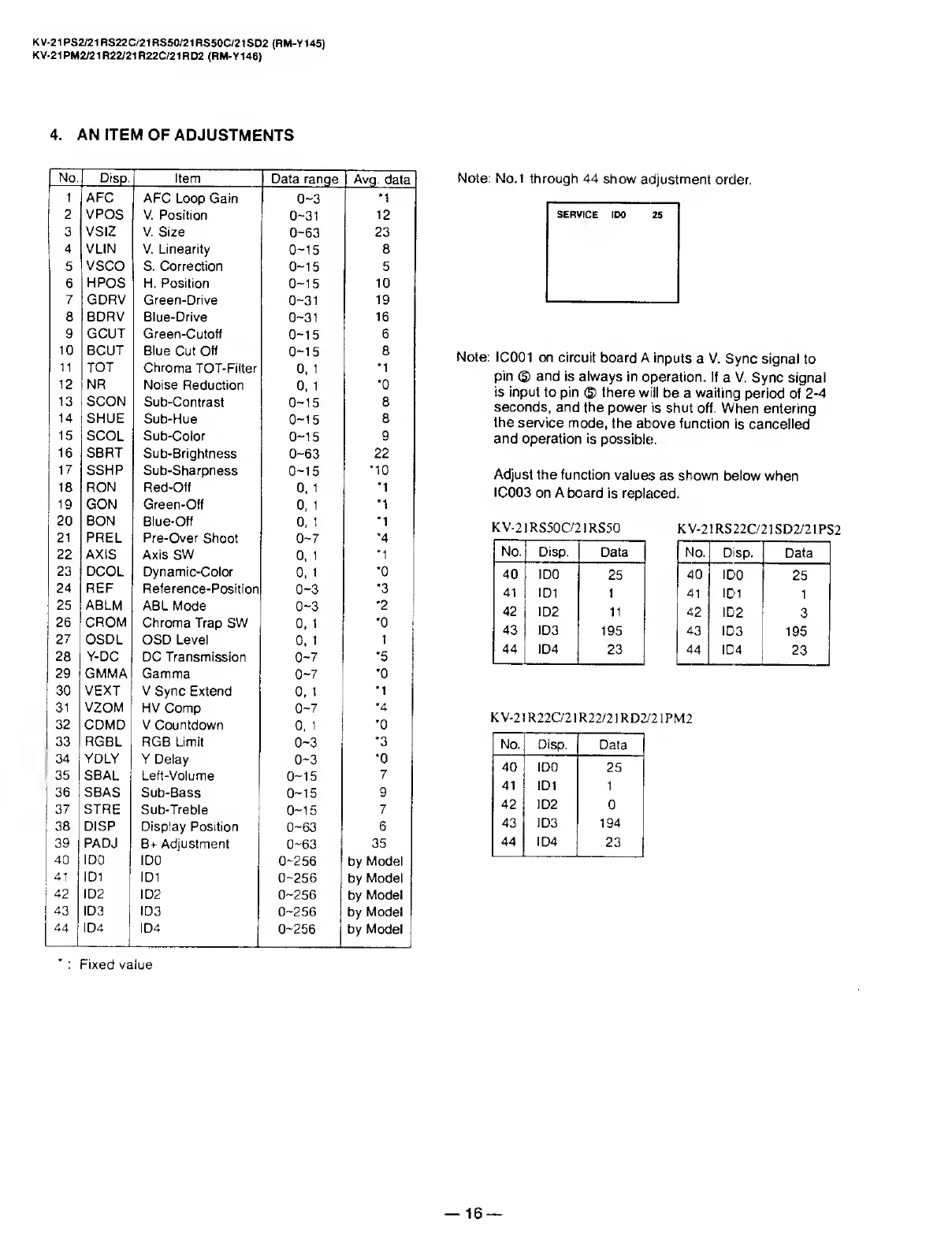

4. AN ITEM OF ADJUSTMENTS
No.
Disp. Item
Data range Avq. data
1
AFC
AFC Loop Gain 0-3
‘1
2
VPOS V. Position
0-31
12
3 VSIZ
V. Size
0-63
23
4
VLIN
V. Linearity
0-15
8
5 VSCO S. Correction
0-15
5
6 HPOS H. Position
0-15
10
7
GDRV
Green-Drive
0-31
19
8 BDRV
Blue-Drive
0-31
16
9
GCUT
Green-Cutoff
0-15
6
10
BCUT Blue Cut Off
0-15
8
11
TOT
Chroma TOT-Filter
0, 1
*1
12 NR
Noise Reduction
0. 1
*0
13 SCON
Sub-Contrast
0-15
8
14
SHUE
Sub-Hue
0-15
8
15
SCOL Sub-Color
0-15
9
16 SBRT
Sub-Brightness
0-63
22
17
SSHP
Sub-Sharpness
0-15
*10
18 RON
Red-Off
0, 1
*1
19 GON
Green-Off
0, 1
*1
20 BON
Blue-Off
0, 1
*1
21
PREL Pre-Over Shoot
0-7
*4
22 AXIS Axis SW
0, 1
*1
23
DCOL
Dynamic-Color
0, 1
*0
24
REF
Reference-Position
0-3
*3
25
ABLM
ABL Mode
0-3
*2
26 CROM
Chroma Trap SW
0, 1
*0
27
OSDL
OSD Level
0, 1
1
28 Y-DC
DC Transmission 0-7
*5
29
GMMA
Gamma 0-7
*0
30 VEXT
V Sync Extend
0, 1
*1
31
VZOM
HV Comp
0-7
*4
32
CDMD V Countdown
0. 1
*0
33 RGBL RGB Limit
0-3
*3
34 YDLY
Y Delay
0-3
*0
35 SBAL
Left-Voiume
0-15
7
36
SBAS
Sub-Bass
0-15
9
37
STRE
Sub-Treble
0-15
7
38 DISP
Display Position
0-63
6
39 PADJ
B+ Adjustment
0-63
35
40
IDO IDO
0-256 by Model
41 ID1
1D1 0-256
by Model
42 ID2
ID2
0-256
by Model
43 ID3 ID3
0-256
by Model
44 ID4 ID4
0-256 by Model
* : Fixed value
Note: No.1 through 44 show adjustment order.
Note: IC001 on circuit board A inputs a V. Sync signal to
pin © and is always in operation. If a V. Sync signal
is input to pin © there will be a waiting period of 2-4
seconds, and the power is shut off. When entering
the service mode, the above function is cancelled
and operation is possible.
Adjust the function values as shown below when
IC003 on A board is replaced.
K V-21RS50C/21RS50
Iffll
Disp.
Data
40
■ a
25
41
IBi
1
m R
11
m HI
195
44
ID4
23
KV-21 RS22C/21SD2/21PS2
No. Disp.
Data
40
IDO
25
41
ID1
1
42
ID2
3
43
ID3
195
44 ID4
23
K V-21R22C/21R22/21RD2/21PM2
Disp.
Data
■ a
25
ESI
1
EH
Eli
0
E9
19
194
44 ID4
23
— 16 —
