Sony TRINITRON KV-21PM2 - A Board.23

i
8
9
10 , 11 , 12

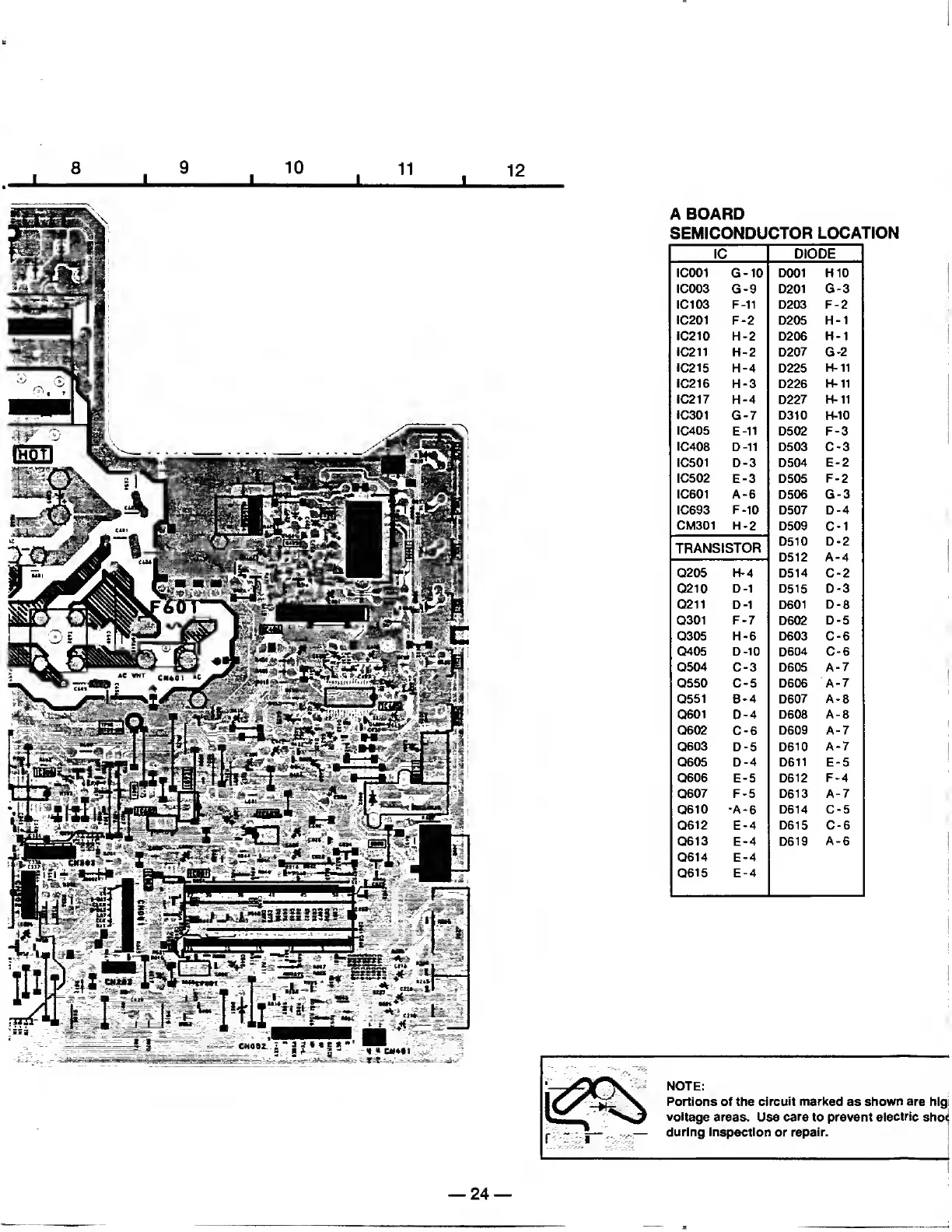

A BOARD
SEMICONDUCTOR LOCATION
IC
DIODE I
IC001
G-10
D001 H 10
IC003 G-9
D201
G-3
IC103 F -11 D203 F-2
IC201
F-2 D205
H-1
IC210 H-2 D206
H-1
IC211
H-2
D207 G-2
IC215
H-4
D225
H-11
IC216
H-3 D226
H-11
IC217 H-4 D227 H-11
IC301 G-7 D310 H-10
IC405
E -11
D502 F-3
IC408 D-11 D503
C-3
IC501
D-3
D504 E-2
IC502 E-3 D505 F-2
IC601 A-6 D506 G-3
IC693
F -10
D507 D-4
CM301 H-2
D509 C-1
1 TRANSISTOR
D510 D-2
D512
A-4
Q205 H-4
D514
C-2
Q210 D-1 D515 D-3
Q211 D-1 D601 D-8
Q301 F-7 D602
D-5
Q305
H-6 D603
C-6
0405
D-10
D604
C-6
Q504
C-3 D605
A-7
Q550 C-5 D606
A-7
Q551 B-4 D607
A-8
0601 D-4
D608 A-8
0602
C-6
D609 A-7
Q603
D-5 D610
A-7
Q605
D-4
D611 E-5
Q606
E-5 D612
F-4
0607 F-5 D613 A-7
Q610
-A-6
D614 C-5
0612 E-4
D615
C-6
Q613 E-4
D619
A-6
Q614 E-4
Q615 E-4
NOTE:
Portions of the circuit marked as shown are hig
voltage areas. Use care to prevent electric shoe
during Inspection or repair.
— 24 —
