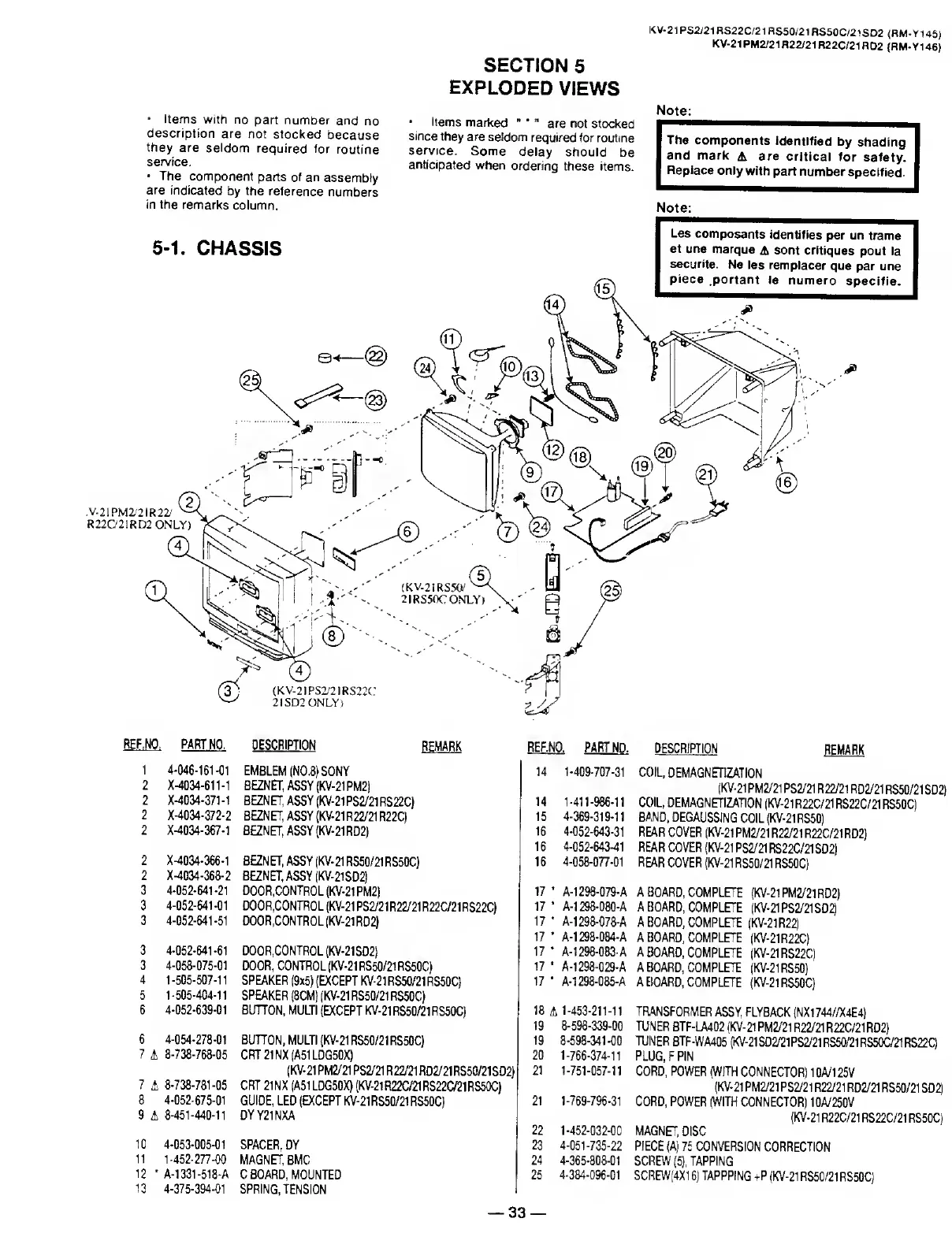

Sony TRINITRON KV-21PM2 - SECTION 5 EXPLODED VIEWS; Chassis Exploded View

ref.no. part no. description remark
1 4-046-161-01 EMBLEM (N0.8) SONY
2 X 4034-611 -1 BE2NET, ASSY (KV-21PM2)
2 X4034-371 -1 BEZNET, ASSY (KV-21 PS2/21RS22C)
2 X4034-372-2 BEZNET, ASSY (KV-21 R22/21R22C)
2 X4034-367-1 BEZNET, ASSY (KV-21 RD2)
2 X4034-366-1 BEZNET, ASSY (KV-21 RS50/21RS50C)
2 X4034-368-2 BEZNET, ASSY (KV-21 SD2)
3 4-052-641 -21 DOOR,CONTROL (KV-21 PM2)
3 4-052-641 -01 DOOR,CONTROL (KV-21 PS2/21R22/21R22C/21RS22C)
3 4-052-641 -51 DOOR,CONTROL (KV-21 RD2)
3 4-052-641 -61 DOOR,CONTROL (KV-21 SD2)
3 4-058-075-01 DOOR, CONTROL (KV-21 RS50/21RS50C)
4 1 -505-507-11 SPEAKER (9x5) (EXCEPT KV-21 RS50/21RS50C-
5 1 -505-404-11 SPEAKER (8CM) (KV-21 RS50/21RS50C)
6 4-052-639-01 BUTTON, MULTI (EXCEPT KV-21 RS50/21RS50C)
6 4-054-278-01 BUTTON, MULTI (KV-21 RS50/21RS50C)
7 A 8-738-768-05 CRT 21 NX (A51LDG50X)
(KV-21 PM2/21PS2/21R22/21RD2/21RS50/21SD2)
7 A 8-738-781 -05 CRT 21 NX (A51LDG50X) (KV-21 R22C/21RS22C/21RS50C)
8 4-052-675-01 GUIDE, LED (EXCEPT KV-21 RS50/21RS50C)
9 A 8-451-440-11 DYY21NXA
10 4-053-005-01 SPACER, DY
11 1-452-277-00 MAGNET, BMC
12 * A-1331-518-A C BOARD, MOUNTED
13 4-375-394-01 SPRING, TENSION
REF.NO. PART NO. DESCRIPTION REMARK
14 1-409-707-31 COIL, DEMAGNETIZATION
(KV-21 PM2/21PS2/21R22/21RD2/21RS50/21SD2)
14 1-411-986-11 COIL, DEMAGNETIZATION (KV-21 R22C/21RS22C/21RS50C)
15 4-369-319-11 BAND, DEGAUSSING COIL (KV-21 RS50)
16 4-052-643-31 REAR COVER (KV-21 PM2/21R22/21R22C/21RD2)
16 4-052-643-41 REAR COVER (KV-21 PS2/21RS22C/21SD2)
16 4-058-077-01 REAR COVER (KV-21 RS50/21RS50C)
17* A-1298-079-A A BOARD, COMPLETE (KV-21 PM2/21RD2)
17* A-1298-080-A A BOARD, COMPLETE (KV-21 PS2/21SD2)
17* A-1298-078-A A BOARD, COMPLETE (KV-21 R22)
17* A-1298-084-A A BOARD, COMPLETE (KV-21R22C)
17* A-1298-083-A A BOARD, COMPLETE (KV-21RS22C)
17* A-1298-029-A A BOARD, COMPLETE (KV-21 RS50)
17* A-1298-085-A A BOARD, COMPLETE (KV-21 RS50C)
18 A 1 -453-211 -11 TRANSFORMER ASSY, FLYBACK (NX1744//X4E4)
19 8-598-339-00 TUNER BTF-LA402 (KV-21 PM2/21R22/21R22C/21RD2)
19 8-598-341-00 TUNER BTF-WA405 (KV-21 SD2/21PS2/21RS50/21RS50C/21RS22C)
20 1-766-374-11 PLUG, F PIN
21 1-751-057-11 CORD, POWER (WITH CONNECTOR) 10A/125V
(KV-21 PM2/21PS2/21R22/21RD2/21RS50/21SD2)
21 1-769-796-31 CORD, POWER (WITH CONNECTOR) 10A/250V
(KV-21 R22C/21RS22C/21RS50C)
22 1-452-032-00 MAGNET, DISC
23 4-051 -735-22 PIECE (A) 75 CONVERSION CORRECTION
24 4-365-808-01 SCREW (5), TAPPING
25 4-384-096-01 SCREW(4X16) TAPPPING +P (KV-21 RS50/21RS50C)
— 33 —
