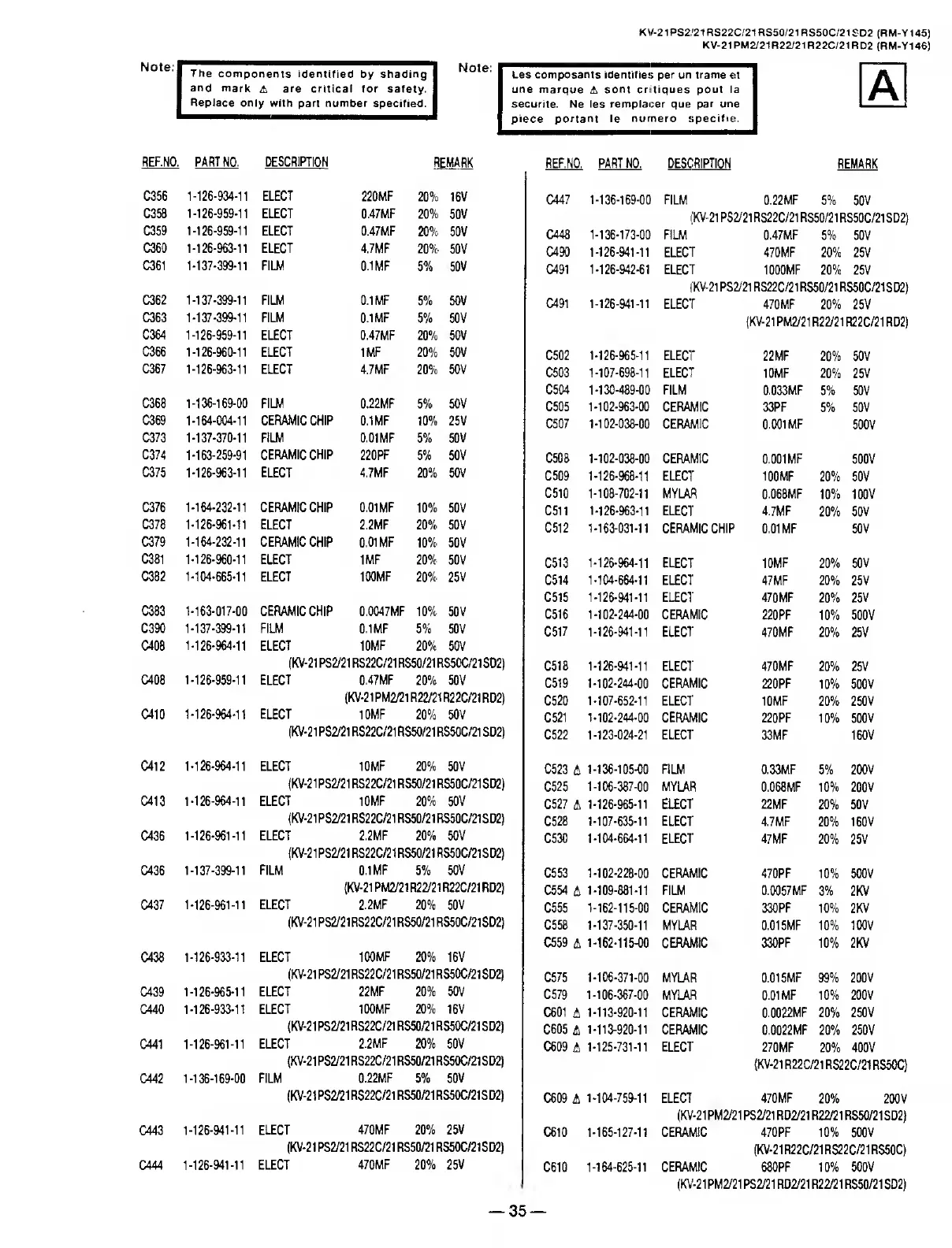

Sony TRINITRON KV-21PM2 - Page 31

KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2 (RM-Y145)
KV-21PM2/21R22/21R22C/21RD2 (RM-Y146)
The components identified by shading
and mark A are critical for safety.
Replace only with part number specified.
Note:
Les composants identifies per un trame et
une marque A sont critiques pout la
securite. Ne les remplacer que par une
piece portant le nurnero specific.
A
REF.NO,
PART NO. DESCRIPTION
REMARK
REF.NO.
PART NO.
DESCRIPTION
REMARK
C356
1-126-934-11
ELECT 220MF
20% 16V
C447
1-136-169-00 FILM 0.22MF
5% 50V
C358 1-126-959-11 ELECT 0.47MF
20% 50V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
C359
1-126-959-11 ELECT
0.47MF
20% 50V
C448
1-136-173-00 FILM 0.47MF
5% 50V
C360 1-126-963-11 ELECT 4.7MF
20% 50V
C490 1-126-941-11 ELECT
470MF 20% 25V
C361 1-137-399-11 FILM
0.1 MF
5% 50V
C491 1-126-942-61 ELECT
1000MF 20% 25V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
C362
1-137-399-11
FILM
0.1 MF
5% 50V
C491
1-126-941-11
ELECT
470MF
20% 25V
C363 1-137*399-11 FILM 0.1MF
5% 50V
(KV-21 PM2/21R22/21R22C/21RD2)
C364
1-126-959-11
ELECT
0.47MF
20% 50V
C366
1-126-960-11
ELECT IMF
20% 50V
C502 1-126-965-11
ELECT
22MF
20%
50V
C367
1-126-963-11 ELECT 4.7MF
20% 50V
C503 1-107-698-11
ELECT
10MF
20% 25 V
C504
1-130-489-00 FILM 0.033MF
5% 50V
C368 1-136-169-00 FILM 0.22MF
5% 50V
C505 1-102-963-00
CERAMIC 33PF
5%
50V
C369 1-164-004-11
CERAMIC CHIP
0.1MF
10% 25V
C507
1-102-038-00 CERAMIC 0.001 MF
500V
0373 1-137-370-11 FILM 0.01 MF
5% 50V
C374
1-163-259-91 CERAMIC CHIP
220PF
5% 50V
C508
1-102-038-00 CERAMIC 0.001 MF
500V
C375 1-126-963-11
ELECT
4.7MF 20% 50V
C509
1-126-968-11 ELECT
100MF 20% 50V
C510
1-108-702-11 MYLAR
0.068MF 10% 100 V
0376 1-164-232-11 CERAMIC CHIP 0.01 MF
10% 50V
C511 1-126-963-11 ELECT
4.7MF 20% 50V
0378 1-126-961-11 ELECT 2.2MF
20% 50V
C512
1-163-031-11 CERAMIC CHIP 0.01 MF 50V
0379 1-164-232-11 CERAMIC CHIP
0.01 MF
10% 50V
0381
1-126-960-11
ELECT
IMF
20% 50V
C513 1-126-964-11 ELECT 10MF
20%
50V
0382 1-104-665-11 ELECT
100MF
20% 25V
C514
1-104-664-11 ELECT
47MF 20% 25V
C515
1-126-941-11
ELECT- 470MF
20%
25V
0383 1-163-017-00 CERAMIC CHIP 0.0047MF
10% 50V
C516 1-102-244-00
CERAMIC 220PF 10% 500V
0390 1-137-399-11 FILM
0.1MF 5% 50V
C517
1-126-941-11 ELECT-
470MF 20% 25V
0408
1*126-964-11
ELECT 10MF
20% 50V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
C518 1-126-941-11
ELECT 470MF
20%
25V
0408 1-126-959-11
ELECT
0.47MF 20% 50V ;
C519
1-102-244-00 CERAMIC 220 PF
10%
500V
(KV-21 PM2/21R22/21R22C/21RD2) j
C520 1-107-652-11 ELECT- 10MF
20%
250V
0410 1-126-964-11 ELECT 10MF
20% 50V
C521 1-102-244-00 CERAMIC 220 PF
10%
500V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
C522 1-123-024-21 ELECT
33MF 160 V
0412 1-126-964-11 ELECT 10MF 20% 50V
C523 A 1-136-105-00 FILM 0.33MF
5%
200V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
C525 1-106-387-00 MYLAR 0.068MF 10% 200V
0413
1-126-964-11 ELECT 10MF
20% 50V
C527 A M26-965-11
ELECT
22MF 20% 50V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2) |
C528 1-107-635-11 ELECT 4.7MF
20%
160V
0436 1-126-961-11
ELECT 2.2MF 20% 50V |
C530 1-104-664-11 ELECT
47MF 20% 25V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
0436 1-137-399-11
FILM 0.1MF 5% 50V |
C553
1-102-228-00 CERAMIC 470PF 10% 500V
(KV-21 PM2/21R22/21R22C/21RD2)
C554 A 1-109-881-11 FILM
0.0057MF
3%
2KV
C437
1-126-961-11
ELECT 2.2MF
20% 50V
C555 1-162-115-00 CERAMIC 330PF 10% 2KV
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
C558
1-137-350-11 MYLAR 0.015MF
10%
100V
C559 A 1-162-115-00 CERAMIC 330PF 10% 2KV
0438
1-126-933-11 ELECT
100MF
20% 16V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
C575
1-106-371-00 MYLAR
0.015MF
99%
200V
0439 1-126-965-11
ELECT 22MF
20% 50V
C579 1-106-367-00 MYLAR 0.01 MF
10%
200V
0440 1-126-933-11
ELECT 100MF
20% 16V
C601 A
1-113-920-11
CERAMIC
0.0022MF 20% 250V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
C605 A 1-113-920-11
CERAMIC 0.0022MF 20% 250V
C441 1-126-961-11
ELECT
2.2MF
20% 50V
C609 A 1-125-731-11
ELECT
270MF 20% 400V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
(KV-21 R22C/21RS22C/21RS50C)
0442 1-136-169-00
FILM
0.22MF
5% 50V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
C6Q9 A 1-104-759-11 ELECT 470MF
20% 200V
(KV-21 PM2/21PS2/21RD2/21R22/21RS50/21SD2)
0443
1-126-941-11
ELECT
470MF 20% 25V
C610 1-165-127-11 CERAMIC 470PF
10%
500V
(KV-21 PS2/21RS22C/21RS50/21RS50C/21SD2)
(KV-21 R22C/21RS22C/21RS50C)
C444 1-126-941-11
ELECT
470MF
20% 25V
C610
1-164-625-11
CERAMIC 680PF 10% 500V
(KV-21 PM2/21PS2/21RD2/21R22/21RS50/21SD2)
— 35
