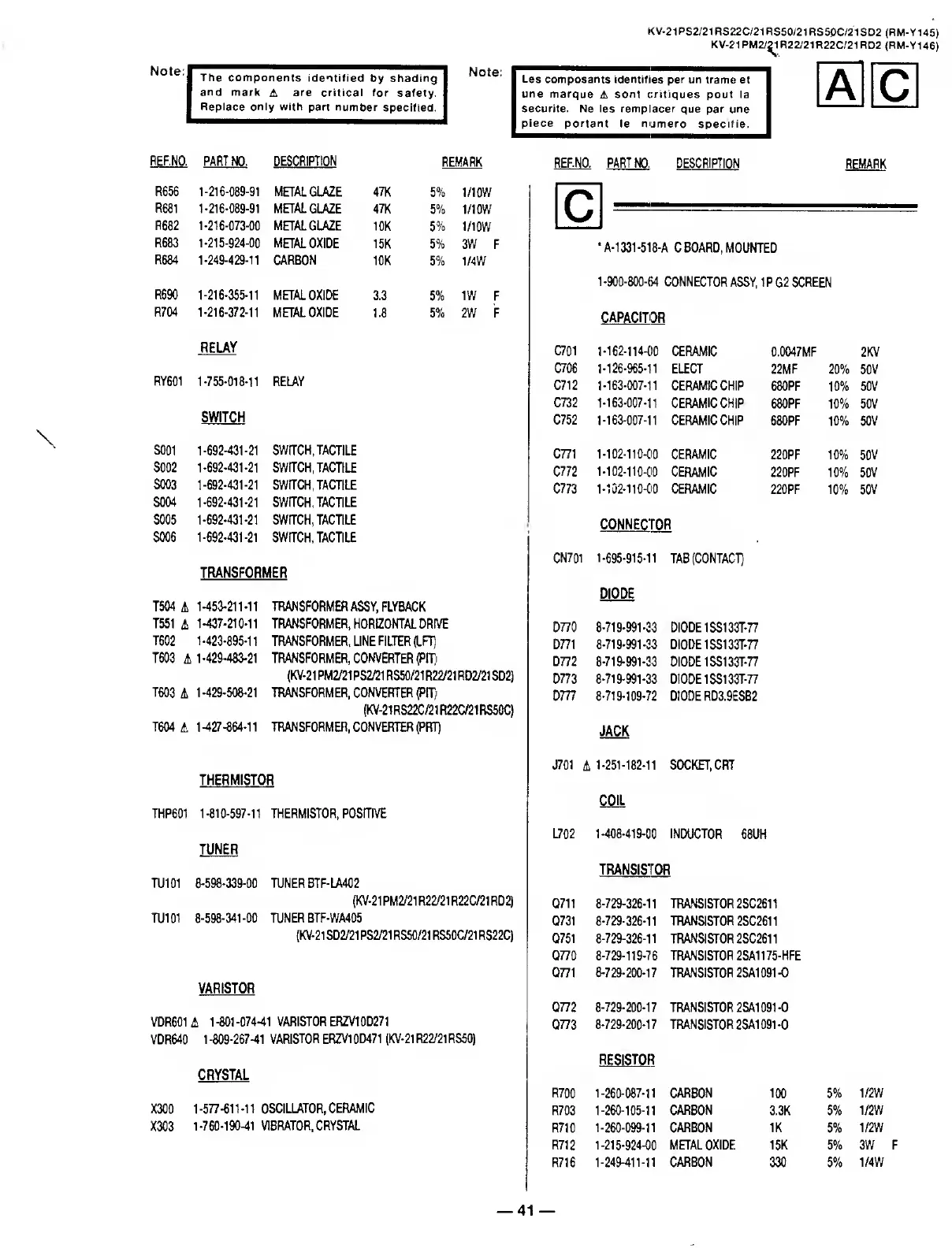

Sony TRINITRON KV-21PM2 - Page 37

Note:
The components identified by shading
and mark A are critical for safety.
Replace only with part number specified
Note:
KV-21PS2/21RS22C/21RS50/21RS50C/21SD2 (RM-Y145)
KV-21 PM2/21R22721R22C/21RD2 (RM-Y146)
Les composants identifies per un frame et
une marque A sont critiques pout la
securite. Ne les remplacer que par une
piece portant le numero specifie.
A C
REF.NO. PART NO.
DESCRIPTION
REMARK
R656 1-216-089-91
METAL GLAZE 47K
5% 1/10W
R681 1-216-089-91
METAL GLAZE 47K
5%
1/1 ow
R682
1-216-073-00
METAL GLAZE
10K
5% 1/10W
R683
1-215-924-00
METAL OXIDE
15K
5% 3W F
R684
1-249-429-11 CARBON
10K
5% 1/4W
R690
1-216-355-11
METAL OXIDE 3.3
5%
1W F
R704
1-216-372-11 METAL OXIDE
1.8 5% 2W F
RELAY
RY601
1-755*018-11 RELAY
SWITCH
S001
1-692-431-21 SWITCH, TACTILE
S002 1-692-431-21 SWITCH, TACTILE
$003 1-692-431-21 SWITCH, TACTILE
S004
1-692-431-21 SWrTCH, TACTILE
S005 1-692-431-21 SWITCH, TACTILE
$006
1-692-431-21 SWITCH, TACTILE
TRANSFORMER
T504 A 1-453-211-11
T551 A 1-437-210-11
T602 1-423-895-11
T603 A 1-429-483-21
T603 A 1-429-508-21
T604 A 1-427-864-11
TRANSFORMER ASSY, FLYBACK
TRANSFORMER, HORIZONTAL DRIVE
TRANSFORMER, LINE FILTER (LFT)
TRANSFORMER, CONVERTER (PIT)
(KV-21 PM2/21PS2/21RS50/21R22/21RD2/21SD2)
TRANSFORMER, CONVERTER (PIT/
(KV-21 RS22C/21R22C/21RS50C)
TRANSFORMER, CONVERTER (PRT)
THERMISTOR
THP601 1-810-597-11 THERMISTOR, POSITIVE
TUNER
TUI 01 8-598-339-00 TUNER BTF-LA402
(KV-21 PM2/21R22/21R22C/21RD2)
TUI 01 8-598-341 -00 TUNER BTF-WA405
(KV-21 SD2/21PS2/21RS50/21RS50C/21RS22C)
VARISTOR
VDR601A 1-801-074-41 VARISTOR ERZV10D271
VDR640 1 -809-267-41 VARISTOR ERZV10D471 (KV-21 R22/21RS50)
CRYSTAL
X300 1-577-611-11 OSCILLATOR, CERAMIC
X303 1-760-190-41 VIBRATOR, CRYSTAL
REF.NO. PART NO. DESCRIPTION
REMARK
‘ A-1331-518-A C BOARD, MOUNTED
1 -900-800-64 CONNECTOR ASSY, 1P G2 SCREEN
CAPACITOR
C701
1-162-114-00
CERAMIC 0.0047MF 2KV
C706
1-126-965-11 ELECT 22MF
20% 50V
C712 1-163-007-11
CERAMIC CHIP
680PF 10% 50V
C732 1-163-007-11
CERAMIC CHIP 680PF
10% 50V
C752 1-163-007-11
CERAMIC CHIP
680PF 10% 50V
C771
1-102-110-00
CERAMIC
220PF 10% 50V
C772
1-102-110-00 CERAMIC
220PF 10% 50V
C773
1-102-110-00
CERAMIC 220PF
10%
50V
CONNECTOR
CN701 1-695-915-11
TAB (CONTACT)
DIODE
D770
8-719-991-33 DIODE 1SS133T-77
D771
8-719-991-33 DIODE 1SS133T-77
D772
8-719-991-33 DIODE 1 SSI 33T-77
D773 8-719-991-33 DIODE 1 SSI 33T-77
D777 8-719-109-72
DIODE RD3.9ESB2
JACK
J701 A 1-251-182-11 SOCKET, CRT
COIL
L702
1-408-419-00 INDUCTOR 68UH
TRANSISTOR
Q711
8-729-326-11 TRANSISTOR 2SC2611
Q731 8-729-326-11 TRANSISTOR 2SC2611
Q751 8-729-326-11 TRANSISTOR 2SC2611
Q770 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q771 8-729-200-17
TRANSISTOR 2SA1091-0
0772 8-729-200-17 TRANSISTOR 2SA1091-0
Q773
8-729-200-17
TRANSISTOR 2SA1091-0
RESISTOR
R700
1-260-087-11 CARBON
100
5%
1/2W
R703 1-260-105-11
CARBON
3.3K 5%
1/2W
R710 1-260-099-11
CARBON IK
5%
1/2W
R712 1-215-924-00
METAL OXIDE 15K
5%
3W
R716 1-249-411-11
CARBON
330
5%
1/4W
