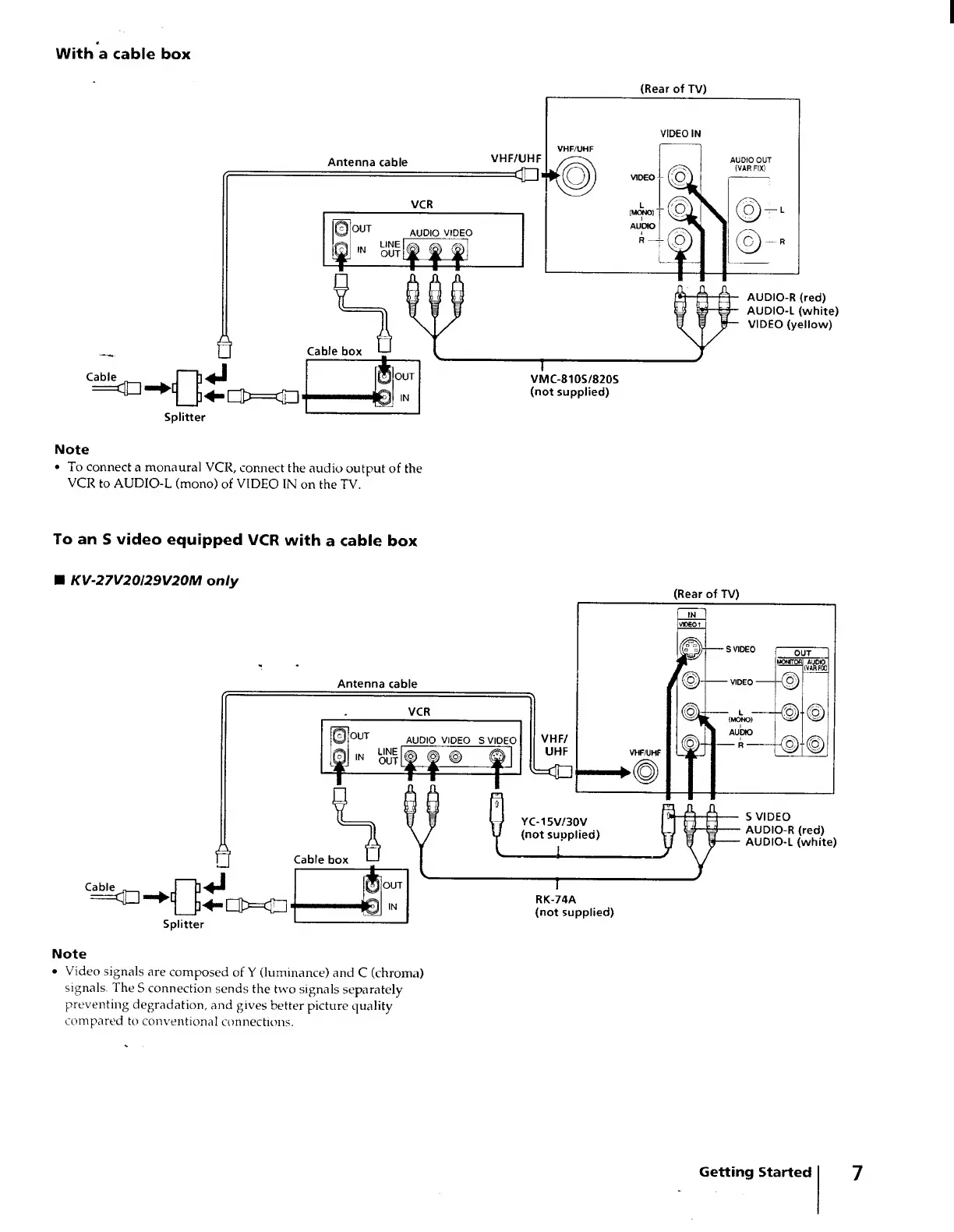

With
a
cable
box
(Rear
of
TV)
Note
•
To
connect
a
monaural
VCR,
connect
the
audio
output
of
the
VCR
to
AUDIO-L
(mono)
of
VIDEO
IN
on
the
TV.
To
an
S
video
equipped
VCR
with
a
cable
box
■
KV-27V20I29V20M
only
(Rear
of
TV)
Note
•
Video
signals
are
composed
of
Y
(luminance)
and
C
(chroma)
signals.
The
S
connection
sends
the
two
signals
separately
preventing
degradation,
and
gives
better
quality
compared
to
conventional
connections.
Getting
Started
7
