KV-27XBR51/27XBR55
RM·Y106 RM·Y107

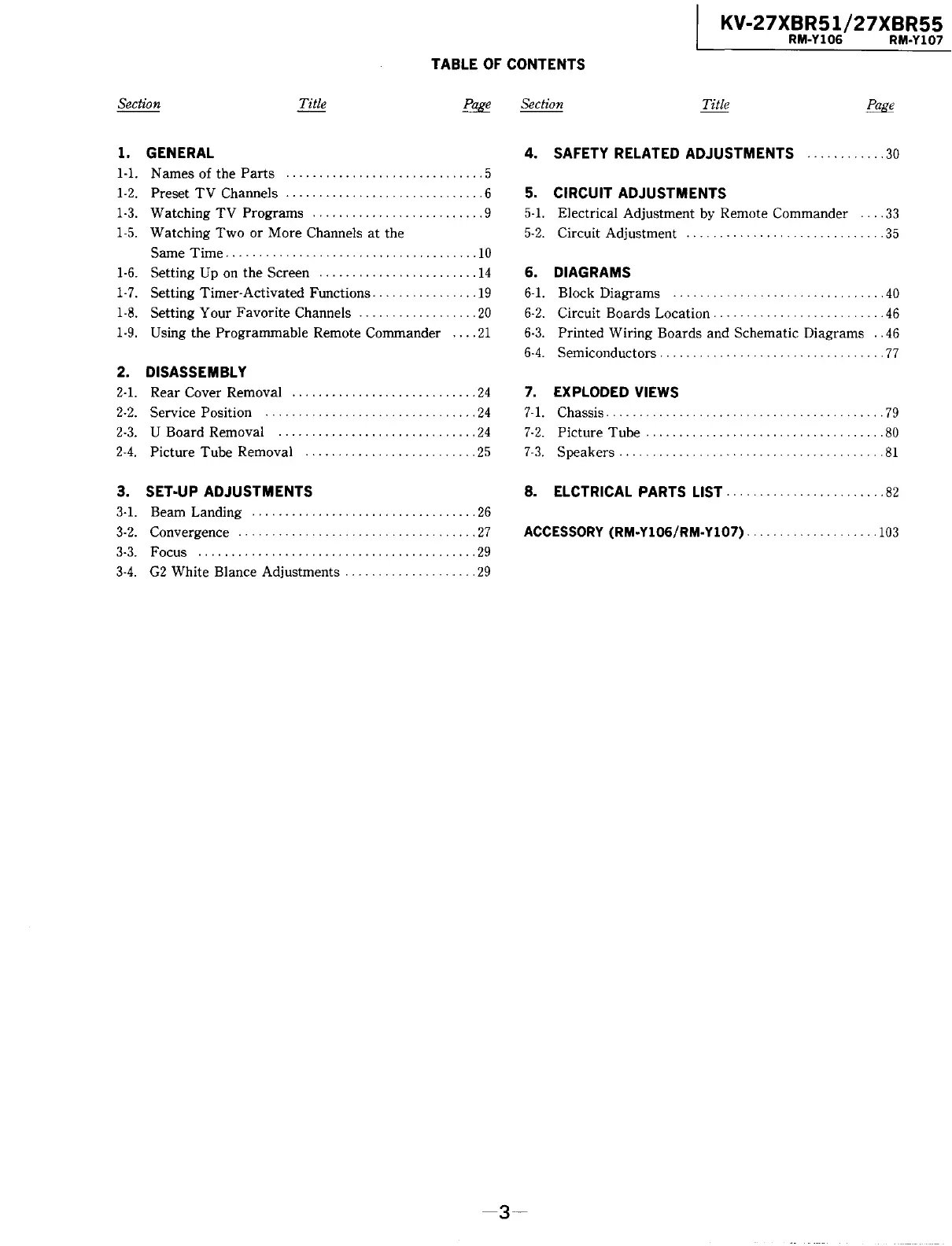

TABLE OF CONTENTS
Section Title
1. GENERAL
1-1. Names of the Parts .............................. 5
1-2. Preset TV Channels .............................. 6
1-3. Watching TV Programs .......................... 9
1-5. Watching Two or More Channels at the
Same Time ...................................... 10
1-6. Setting Up on the Screen ........................ 14
1-7. Setting Timer-Activated Functions ................ 19
1-8. Setting Your Favorite Channels .................. 20
1-9. Using the Programmable Remote Commander .... 21
2. DISASSEMBLY
2-1. Rear Cover Removal ............................ 24
2-2. Service Position ................................ 24
2-3. U Board Removal .............................. 24
2-4. Picture Tube Removal .......................... 25
3. SET·UP ADJUSTMENTS
3-1. Beam Landing .................................. 26
3-2. Convergence .................................... 27
3-3. Focus .......................................... 29
3-4. G2 White Blance Adjustments .................... 29
Section
Title
4. SAFETY RELATED ADJUSTMENTS
............ 30
5. CIRCUIT ADJUSTMENTS
5-1. Electrical Adjustment by Remote Commander .... 33
5-2. Circuit Adjustment . . . . . . . . . . . . . . . ... 35
6. DIAGRAMS
6-1. Block Diagrams
.... 40
6-2. Circuit Boards Location . . . . ............. 46
6-3. Printed Wiring Boards and Schematic Diagrams .. 46
6-4. Semiconductors . . . . . . . . . . . .... 77
7. EXPLODED VIEWS
7-1. Chassis ....................... . . ....... 79
7-2. Picture Tube .. . . ..... 80
7-3. Speakers ............ . . ..... 81
8. ELCTRICAL PARTS LIST ........................ 82
ACCESSORY (RM·Y106/RM-Y107) ..
...... 103
-3-
