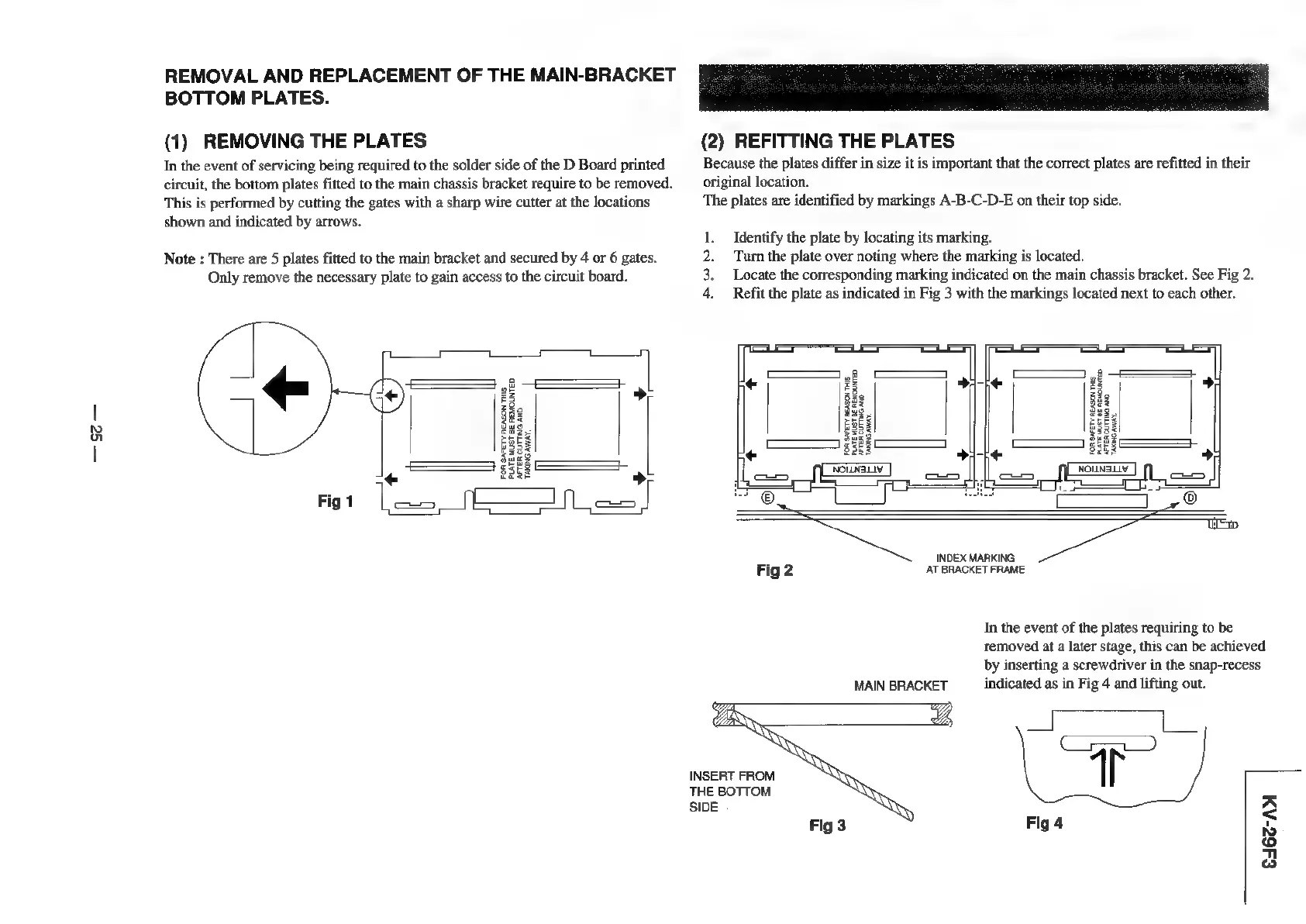

REMOVAL AND REPLACEMENT OF THE MAIN-BRACKET
BOTTOM PLATES.
(1) REMOVING THE PLATES
In the event of servicing being required to the solder side of the D Board printed
circuit, the bottom plates fitted to the main chassis bracket require to be removed.
This is performed by cutting the gates with a sharp wire cutter at the locations
shown and indicated by arrows.
Note : There are 5 plates fitted to the main bracket and secured by 4 or 6 gates.
Only remove the necessary plate to gain access to the circuit board.
(2) REFITTING THE PLATES
Because the plates differ in size it is important that the correct plates are refitted in their
original location.
The plates are identified by markings A-B-C-D-E on their top side.
Othe
Identify the plate by locating its marking.
Turn the plate over noting where the marking is located.
Locate the corresponding marking indicated on the main chassis bracket. See Fig 2.
Refit the plate as indicated in Fig 3 with the markings located next to each other.
Fon sArETY REASON THIS
+
PLATE MUST Be REMIOUNTED
2
le
gseec 1
Taso AWA
+
= NOUNALIV
6
o
— =
INDEX MARKING
Fig 2
AT BRACKET FRAME
MAIN BRACKET
LZ
INSERT FROM
THE BOTTOM
SIDE
Fig 3
In the event of the plates requiring to be
removed at a later stage, this can be achieved
by inserting a screwdriver in the snap-recess
indicated as in Fig 4 and lifting out.
Fig 4
