KV-29F3

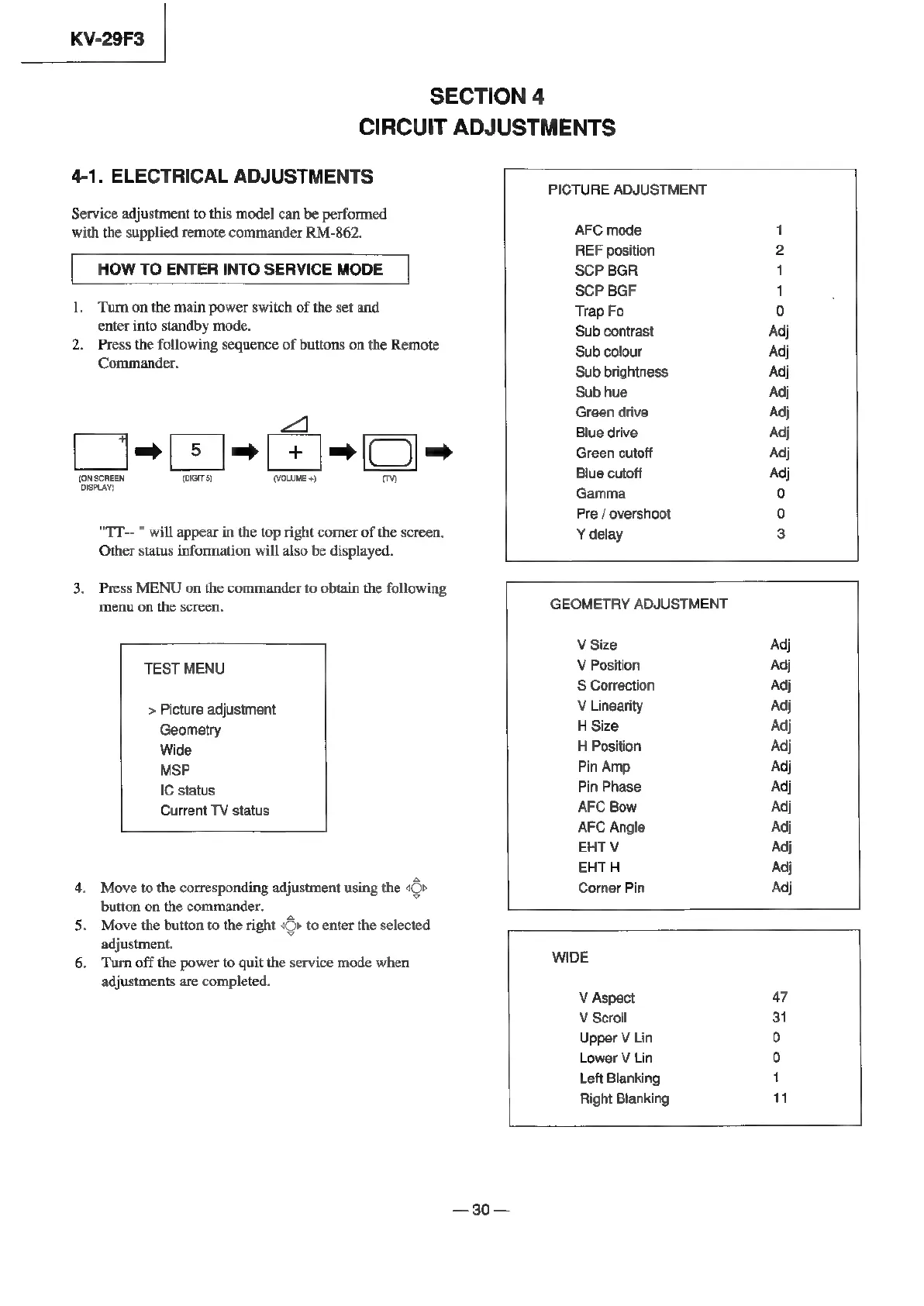

SECTION 4
CIRCUIT ADJUSTMENTS
4-1. ELECTRICAL ADJUSTMENTS
PICTURE ADJUSTMENT
Service adjustment to this model can be performed
with the supplied remote commander RM-862. AFC mode 1
REF position 2
HOW TO ENTER INTO SERVICE MODE SCP BGR 1
SCP BGF 1
1. Tum on the main power switch of the set and Trap Fo 0
enter into standby mode. Sub contrast Adj
2. Press the following sequence of buttons on the Remote Sub colour Adj
Commander: Sub brightness Adj
Sub hue Adj
Green drive Adj
Blue drive Adj
me =» Green cutoff Adj
oaear are waneD 7 Blue cutoff Adj
ea Gamma 0
Pre / overshoot 0
"TT-- " will appear in the top right corner of the screen. Y delay 3
Other status information will also be displayed.
3. Press MENU on the commander to obtain the following
menu on the screen. GEOMETRY ADJUSTMENT
V Size Adj
TEST
MENU
V
Position
Adj
S Correction Adj
> Picture adjustment V Linearity Adj
Geometry H Size Adj
Wide H Position Adj
MSP Pin Amp Adj
IC status Pin Phase Adj
Current TV status AFC Bow Adj
AFC Angle Adj
EHTV Adj
EHTH Adj
4. Move to the corresponding adjustment using the > Corner Pin Adj
button on the commander,
5. Move the button to the right cel to enter the selected
adjustment.
6. Tur off the power to quit the service mode when WIDE
adjustments are completed.
V Aspect 47
V Scroll 31
Upper V Lin 0
Lower V Lin 0
Left Blanking 1
Right Blanking 1
—30—
