KV-29FS13 / 29FS13C
SECTION 6: EXPLODED VIEWS
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es par un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
The component parts of an assembly are indicated by
the reference numbers in the far right column of the parts
list and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION [Assembly Includes]
9
4
5
7
8
10
6
13
16
17
18
15
12
11
3
2
19
14
1
1
21
20

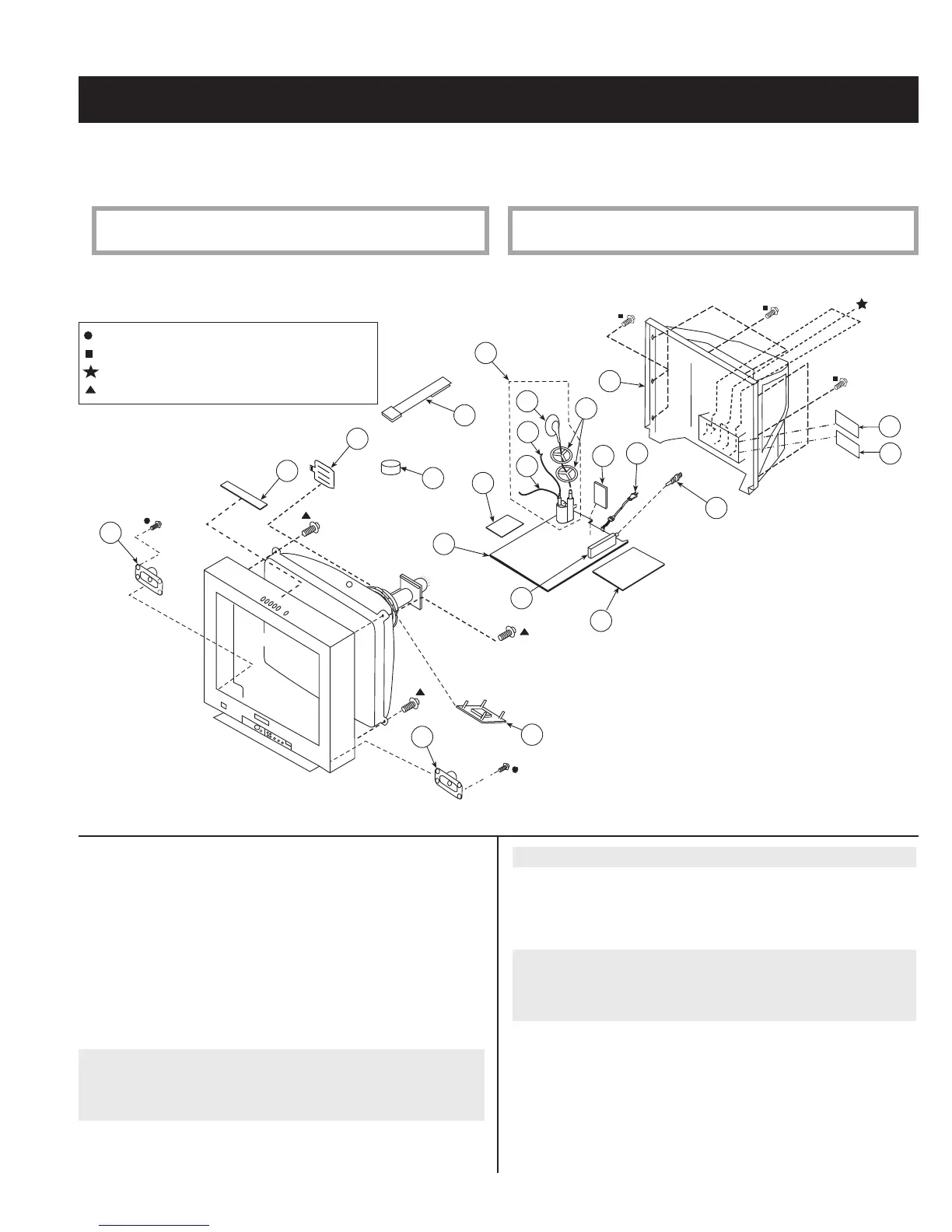

6-1. CHASSIS (KV-29FS13/29FS13C)
1 1-529-638-11 SPEAKER (6X12CM)
2 4-081-170-01 PLATE, TLH CORRECTION
3 1-452-896-11 COIL, NA ROTATION (RT200)
* 4 A-1299-221-A A COMPLETE PC BOARD
(KV-29FS13C ONLY)
* 4 A-1299-477-A A COMPLETE PC BOARD
(KV-29FS13 ONLY)
The high-voltage leads associated with the FBT on this board are not
included and must be ordered separately. [16-18]
* 5 A-1304-200-A MA (VAR) MOUNTED PC BOARD
* 6 A-1343-875-A D (VAR) MOUNTED PC BOARD
!
7 1-790-316-21 CORD, AC POWER(WITH CONNECTOR)
(KV-29FS13 ONLY)
!
7 1-769-796-31 CORD, POWER (WITH CONNECTOR)
(KV-29FS13C ONLY)
* 8 A-1380-632-A K (VAR) MOUNTED PC BOARD
9 1-766-374-11 PLUG, F-PIN
!
10 8-598-542-20 TUNER, FSS BTF-WA412
11 4-075-652-11 COVER, REAR
12 3-704-372-71 HOLDER, HV CABLE
13 4-062-047-02 PIECE A(110), CONV CORRECT
14 1-452-032-00 MAGNET,DISC
!
15 1-453-310-11 FBT ASSY NX-4521//X4J4 [16-18]
!
16 1-251-374-13 HV CAP ASSY
!
17 1-900-800-82 FOCUS LEAD
!
18 1-900-803-22 G2 LEAD
* 19 A-1372-817-A HX MOUNTED PC BOARD
20 4-075-664-01 LABEL, 1-TUNER ANTENNA
21 4-075-665-11 LABEL, TERMINAL
The lables associated with the rear cover are not
included and must be ordered separately.
7-4-388-477-02 SCREW (3X16), TAPPING, +BV WASHER
7-685-663-91 SCREW +BVTP 4X16 TYPE 2 TT(B)
7-685-648-91 SCREW +BVTP 3X12 TYPE2 TT(B)
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
