Connecting Your TV
13
Cable Box and Cable
Use this connection if you subscribe to a cable system that scrambles some channels (pay
channels) but not all of them. This setup allows you to use the remote control to:
❏ change channels through your cable box when you are receiving a scrambled signal
❏ change channels through your TV
This connection also allows you to use the PIP feature when you are viewing unscrambled
channels coming directly into your TV from your cable. Scrambled signals coming through the
cable box
cannot be viewed in PIP. For more information on the PIP feature, see page 26.
1 Connect the coaxial cable from your cable service to the VHF/UHF jack on your TV.
2 Using a coaxial cable (not supplied), connect the IN jack on your cable box to the TO
CONVERTER jack on your TV.
3 Using a coaxial cable (not supplied), connect the OUT jack on your cable box to the AUX
jack on your TV.
Using your TV with this connection
This connection allows you to do the following:
❏ Program your Sony remote control to operate your cable box (see page 5).
❏ To activate your remote, press to operate your cable box and then use the 0-9
buttons or CH+/- buttons to change the channels. To do this, first program your remote
control, then use the Channel Fix feature to set your TV to channel 3 or 4 (see page 33).
❏ Press to switch back and forth between VHF/UHF (local channels or unscrambled)
and AUX (cable system or pay channels).
✍ DIGITAL CABLE BOX USERS: Do not use this connection. The TO CONVERTER jack is not compatible
with digital boxes.

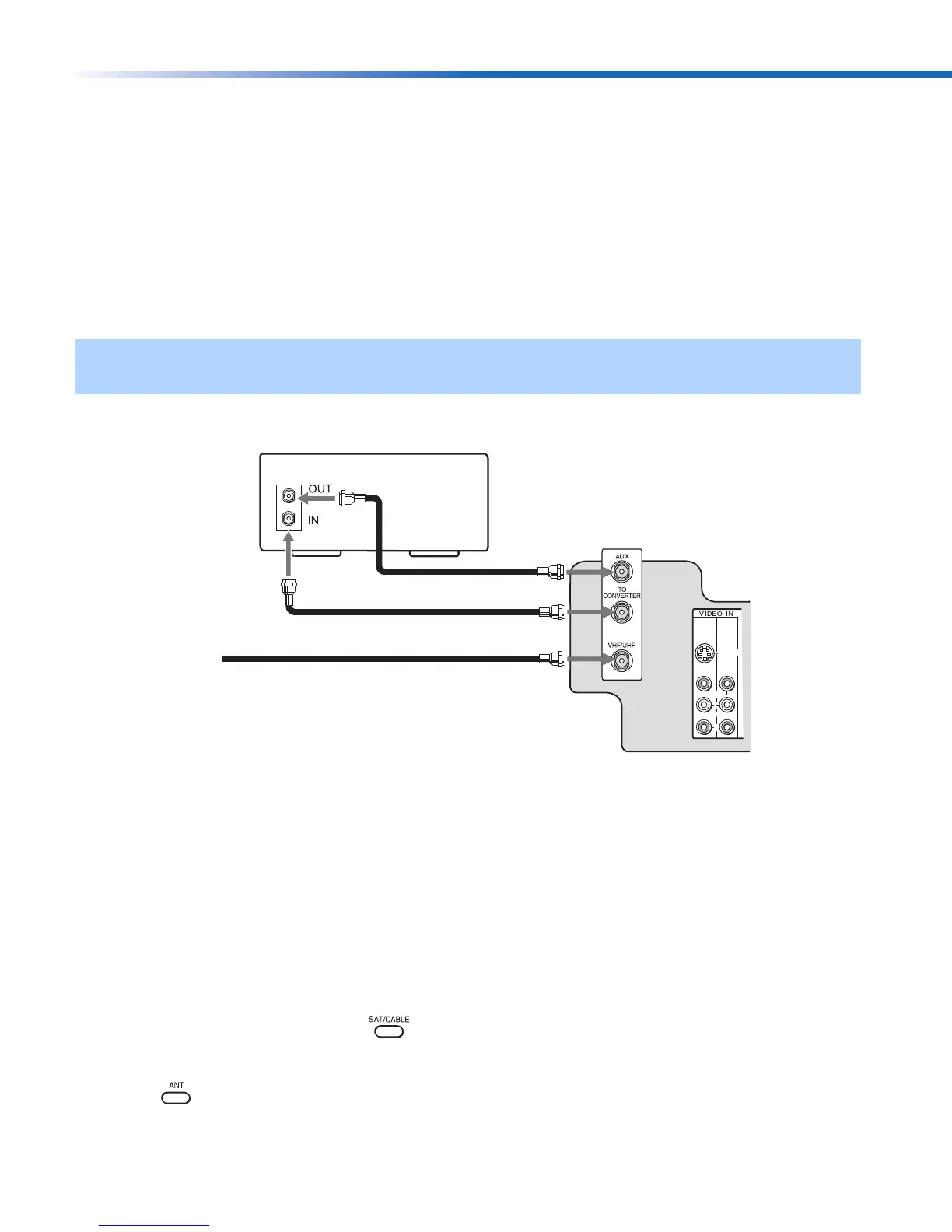

75-ohm Coaxial cable
CATV cable (unscrambled channels)
Coaxial cable
1
2
3
Cable box
Rear of TV
1
3
VIDEO
L
(MONO)
R
S VIDEO
