Sony Trinitron KV-29FV310 - Picture Tube (KV-36 FV310 ONLY)

— 62 —
KV-27FV310/29FV310/32FV310/36FV310
REF. NO. PART NO. DESCRIPTION
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION

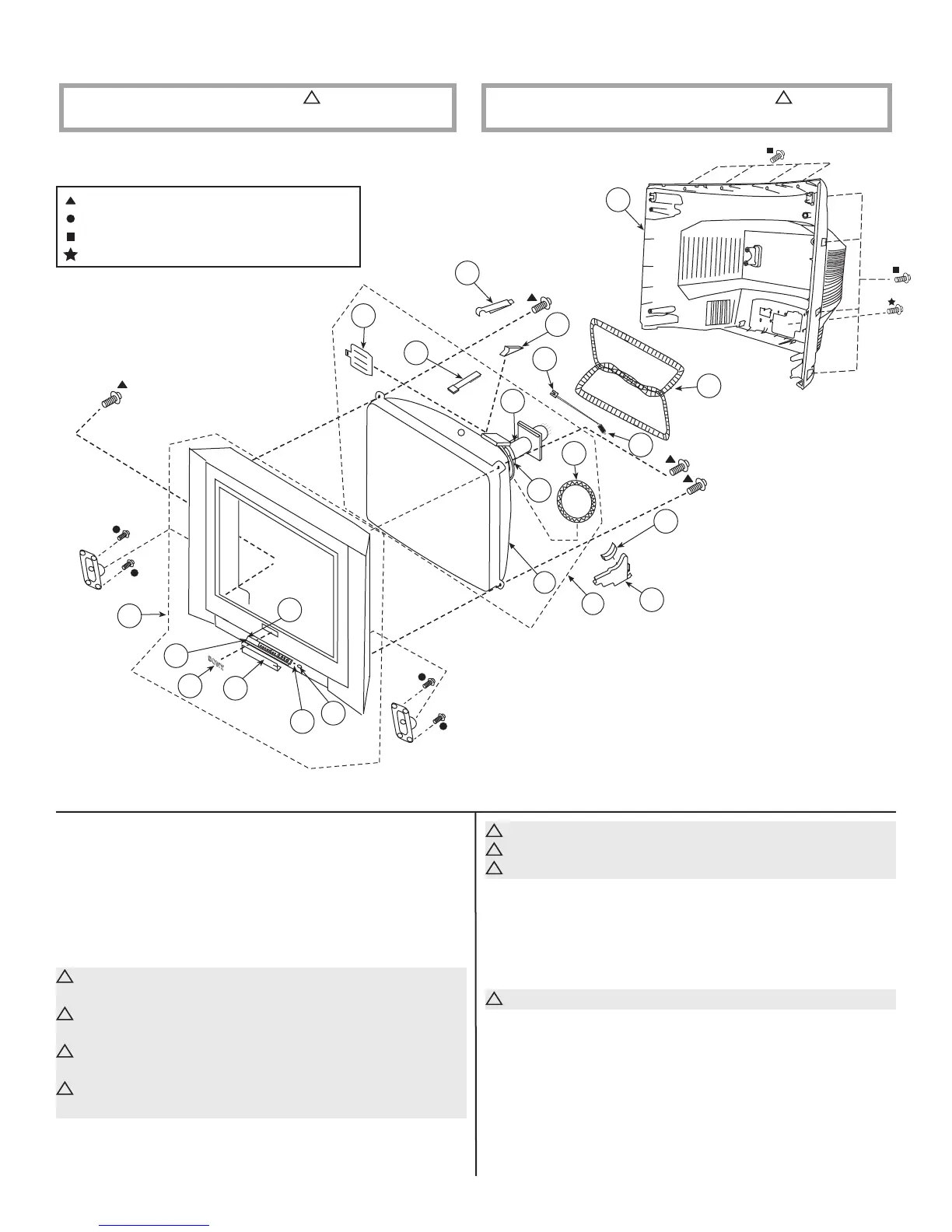

6-6. PICTURE TUBE (KV-36FV310 ONLY)
40 X-4041-548-1 BEZNET ASSY (41-46)
41 4-087-374-01 SPRING, DOOR
42 4-046-160-11 EMBLEM, SONY (NO.9)
43 4-087-375-21 DOOR, CONTROL
44 4-087-156-01 GUIDE, LIGHT
45 4-087-150-01 BUTTON, POWER
46 4-036-880-11 DAMPER
!
47 8-735-081-61 ITC 38RSN-A1M (48-53)
(KV-36FV310 HAWAII ONLY)
!
47 8-735-048-61 ITC 38RSN-A1 (48-53)
(KV-36FV310 US & CND ONLY)
!
48 8-735-081-05 CRT 38RSN (FOR TAIWAN, ETC.) A90LPW80X
(KV-36FV310 HAWAII ONLY)
!
48 8-735-048-05 CRT 38RSN A90LPW80X
(KV-36FV310 US & CND ONLY)
!
49 8-451-506-22 DY Y38RSA-V
!
50 1-452-896-11 COIL, NA ROTATION (RT200)
!
51 8-453-007-41 NECK ASSEMBLY NA324-MA
52 4-085-128-01 PIECE A(110), CONV CORRECT
53 2-163-920-01 PLATE, TLH CORRECTION
54 4-086-875-02 SUPPORTER, CRT
55 4-088-879-01 CUSHION, 36 CRT SUPPORTER
56 4-082-641-01 SPRING, 45MM
!
57 1-428-987-11 DEGAUSSING COIL (36 120V)
58 4-065-895-04 HOLDER, DGC
59 4-053-093-01 SPACER, DY
60 4-082-640-01 HOOK, GROUND WIRE
61 4-086-697-21 COVER, REAR
54
55
60
61
58
57
56
48
47
52
49
53
50
51
59
46
42
41
43
40
44
45
[ASSEMBLY INCLUDES]
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
4-388-477-01 SCREW(3X16),TAPPING,+BV WASHER
7-685-663-79 SCREW +BVTP 4X16 TYPE2 TT(B)
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
