Sony TRINITRON KV-32FV1 - SECTION 7 EXPLODED VIEWS; Chassis Exploded View

— 59 —
REF.NO. PART NO. DESCRIPTION REMARK
REF.NO. PART NO. DESCRIPTION REMARK
KV-32FV1/34FVL1/36FV1
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
7-685-663-79 SCREW +BVTP 4X16
7-685-648-79 SCREW +BVTP 3X12
• Items marked " * " are not stocked
since they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
• Items with no part number and no
description are not stocked because
they are seldom required for routine service
The components identified with gray shading and a critical
symbol (
¡¡
¡¡
¡ ) are critical for safety. Replace only with part
number specified.
Note:
Les composants identifies per un trame et une marque
¡¡
¡¡
¡ sont critiques pout la securite. Ne les remplacer que
par une piece portant le numero specifie.
Note:
SECTION 7
EXPLODED VIEWS
• The component parts of an assembly
are indicated by the reference numbers in
the remarks column.

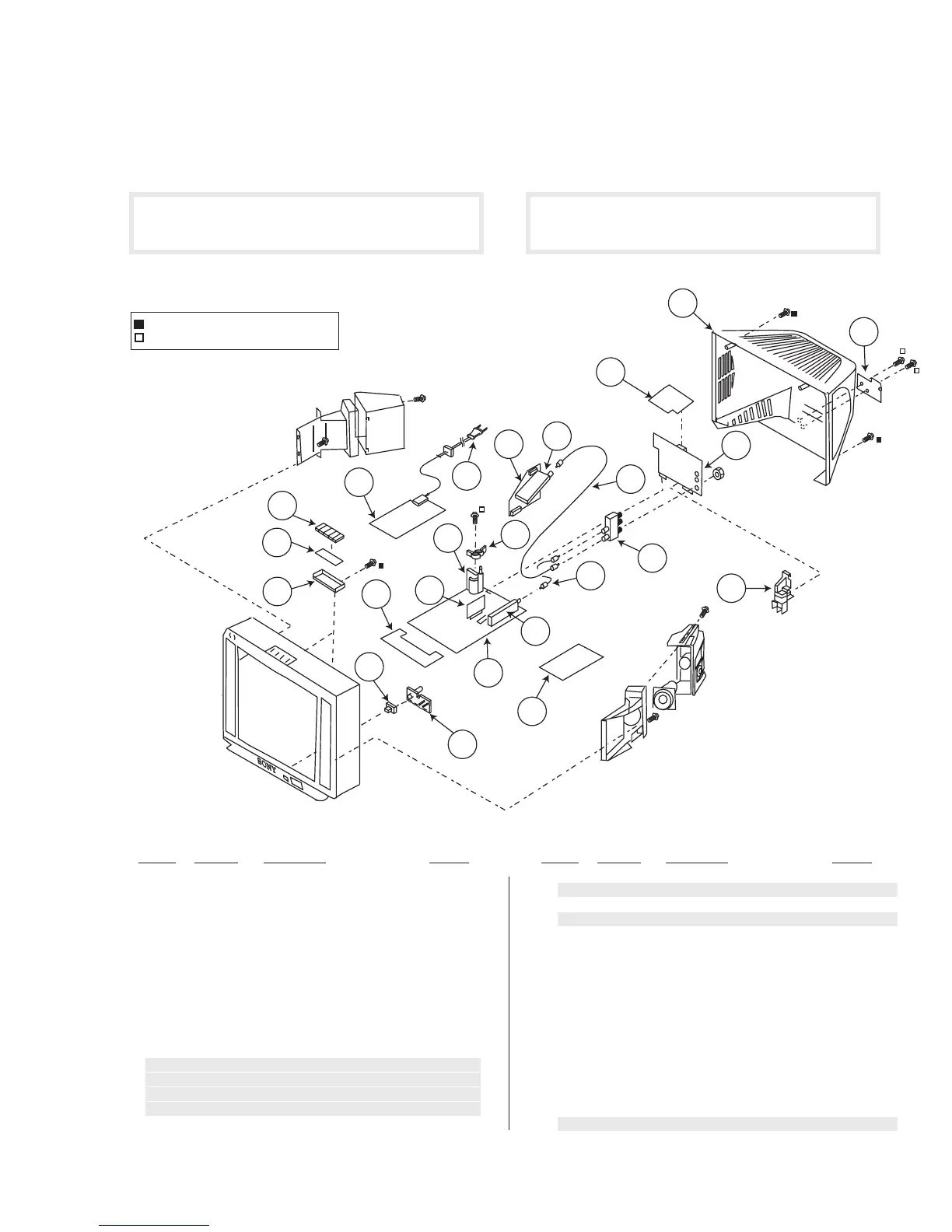

7-1. CHASSIS
1 * 4-065-415-01 BRACKET, HX
2 * A-1372-532-A HX BOARD, MOUNTED
3 4-065-414-01 BUTTON, MULTI
4 4-064-809-01 FILTER, REMOTE
5 4-064-808-01 GUIDE, LED
6 * A-1372-520-A HF BOARD, MOUNTED
7 * A-1298-640-A A BOARD, COMPLETE (KV-32FV1/34FVL1)
7 * A-1298-677-A A BOARD, COMPLETE (KV-36FV1)
8 * A-1195-145-A P BOARD, COMPLETE
9 * 4-065-883-01 HOLDER, FBT
10 ¡ 1-453-282-11 TRANSFORMER, FLYBACK (NX-4600//X4C)
(KV-32FV1/34FVL1 ONLY)
10 ¡ 1-453-286-11 TRANSFORMER, FLYBACK (NX-4600//X4C4)
(KV-36FV1 ONLY)
12 ¡ 8-598-431-00 TUNER, FSS BTF-WA411
13 * A-1298-641-A AX BOARD, COMPLETE
14 ¡ 8-598-430-00 TUNER, FSS BTF-FA401
15 * 1-557-056-31 CABLE, P-P
16 * 1-556-945-21 CABLE, P-P
17 8-598-414-00 ANTENNA SWITCH AS-2F
18 * A-1135-959-A B BOARD, COMPLETE
19 * A-1394-912-A UX BOARD, COMPLETE
20 4-064-771-01 COVER, REAR (KV-32FV1/34FVL1)
20 4-065-905-01 COVER, REAR (KV-36FV1)
21 4-059-500-01 LABEL, ANTENNA
22 * A-1385-187-A K BOARD, COMPLETE
23 * 4-052-905-01 V5/6 BRACKET
24 * A-1316-397-A G BOARD, COMPLETE
25 ¡ 1-751-059-11 CORD, POWER (WITHCONNECTOR) 10A/125V
4
5
10
6
12
15
16
17
18
19
20
21
23
22
7
9
13
14
2
3
1
25
24
8
