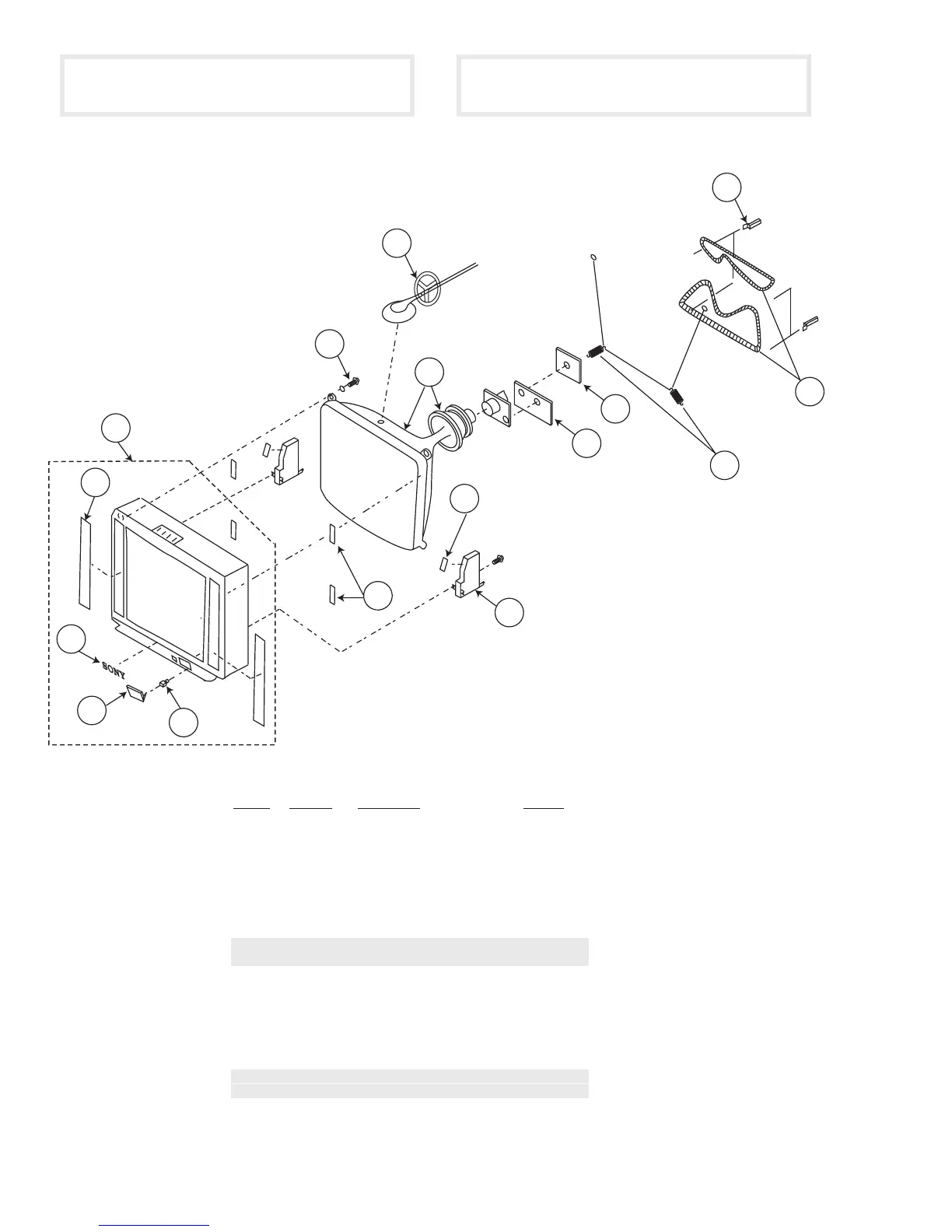

Sony TRINITRON KV-32FV1 - Picture Tube Exploded View

— 60 —
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
KV-32FV1/34FVL1/36FV1
REF.NO. PART NO. DESCRIPTION REMARK
50 X-4035-961-1 BEZNET ASSY (KV-32FV1/34FVL1) 51-54
50 X-4035-918-1 BEZNET ASSY (KV-36FV1) 51-54
51 3-704-179-31 EMBLEM(NO.9), SONY
52 4-064-807-01 DOOR, FRONT TERMINAL
53 4-042-192-01 CATCHER, PUSH
54 4-066-290-01 GRILLE, SPEAKER (KV-32FV1/34FVL1)
54 4-065-906-01 GRILLE, SPEAKER (KV-36FV1)
55 ¡ 8-735-047-61 ITC 34RSN-A1 (KV-32FV1/34FVL1)
55 ¡ 8-735-048-61 ITC 38RSN-A1 (KV-36FV1)
56 4-067-044-01 CRT, SUPPORT (KV-36FV1)
57 4-067-050-01 CUSHION, CRT SUPPORT
58 * A-1375-179-A WA BOARD, MOUNTED (KV-32FV1/34FVL1)
58 * A-1375-181-A WA BOARD, MOUNTED (KV-36FV1)
59 * A-1335-103-A C BOARD,COMPLETE
60 4-036-329-01 SPRING (B), TENSION
61 ¡ 1-416-827-11 COIL, DEGAUSSING (KV-32FV1/34FVL1)
61 ¡ 1-416-828-11 COIL, DEGAUSSING (KV-36FV1)
62 4-065-895-01 HOLDER, DGC
63 4-046-765-01 SCREW, TAPPING 7+CROWN WASHER
64 3-704-372-31 HOLDER, HV CABLE
65 * 4-064-378-01 CUSHION (20MM), CRT
52
60
61
63
65
50
53
54
57
58
59
51
62
55
56
64
The components identified with gray shading and a critical
symbol (
¡¡
¡¡
¡ ) are critical for safety. Replace only with part
number specified.
Les composants identifies per un trame et une marque
¡¡
¡¡
¡ sont critiques pout la securite. Ne les remplacer que
par une piece portant le numero specifie.
7-1. PICTURE TUBE REMOVAL
