— 168 —
KV-32HS510/34DRC510/34HS510/36HS510/38DRC510
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
The component parts of an assembly are indicated by the
reference numbers in the far right column of the parts list
and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
28
1
14
15
16
23
22
11
24
29
27
26
3
6
9
12
2
25
4
5
7
8
10
13
17
18
19
20
21
1

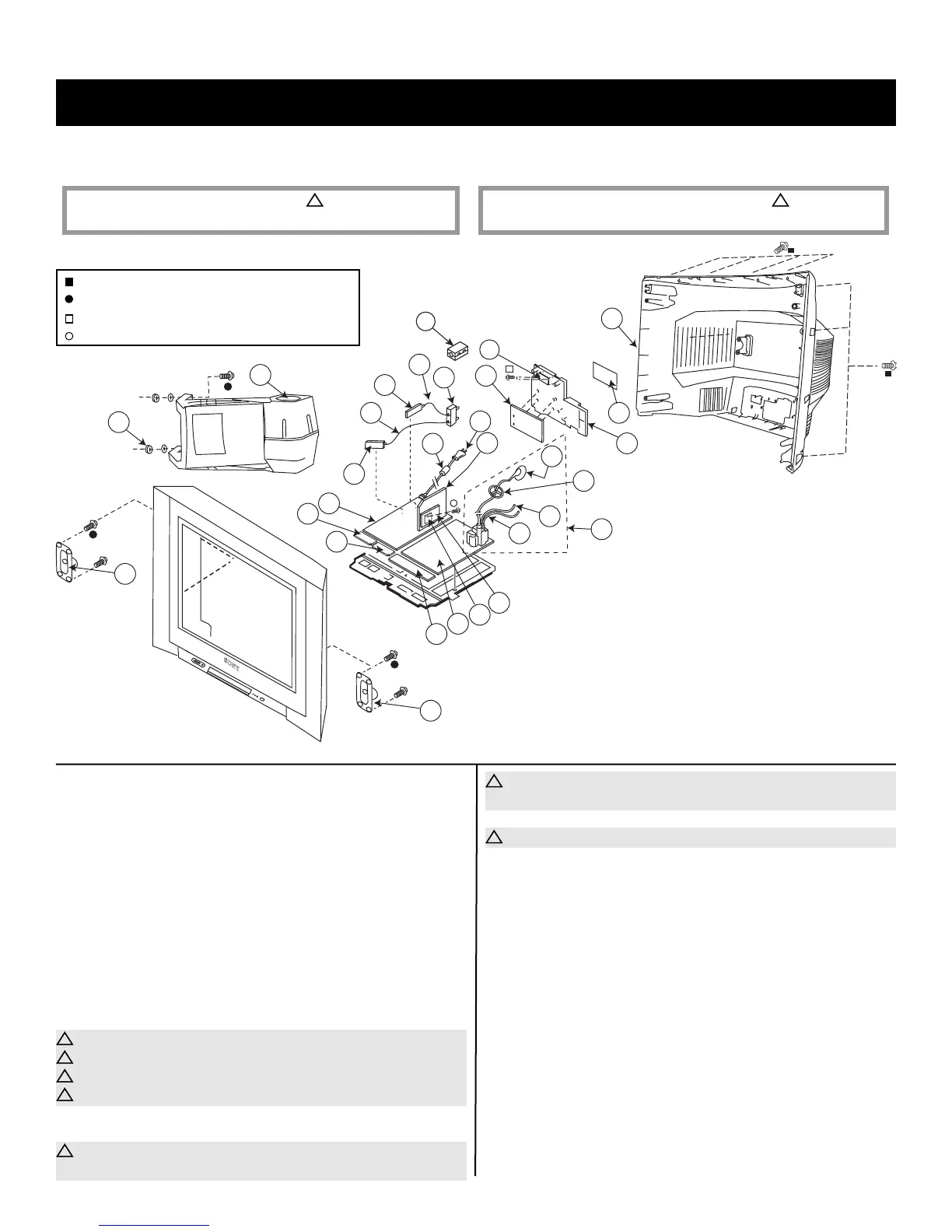

6-1. CHASSIS (KV-32HS510/34DRC510)
SECTION 6: EXPLODED VIEWS
[ASSEMBLY INCLUDES]
1 1-825-104-11 SPEAKER (24X4.2CM)
* 2 A-1400-549-A HA BOARD, MOUNTED
* 3 A-1300-319-A D BOARD, COMPLETE
(ALL EXCEPT KV-34DRC510 LATIN SOUTH)
The high-voltage leads associated with the FBT on
this D Board are not included and must be ordered
separately (SEE 7-9).
* 3 A-1300-538-A D BOARD, COMPLETE
(KV-34DRC510 LATIN SOUTH ONLY)
The high-voltage leads associated with the FBT on
this D Board are not included and must be ordered
separately (SEE 7-9).
* 4 A-1300-690-A BM1C BOARD, COMPLETE
* 5 A-1300-325-A B BOARD, COMPLETE
!
6 1-453-387-21 FBT ASSY/NX-6020//M3J4 (7-9)
!
7 1-900-805-22 CONNECTOR ASSY, G2 HV
!
8 1-900-805-19 WIRE ASSY, FOCUS HV
!
9 1-251-715-22 CAP ASSY, HIGH-VOLTAGE
10 4-084-918-01 HOLDER, HV CABLE
* 11 A-1300-320-A M BOARD, COMPLETE
!
12 1-769-837-11 CORD, POWER (WITH NOISE FILTER)
(ALL EXCEPT KV-34DRC510 LATIN SOUTH)
!
12 1-769-796-62 CORD, POWER (WITH CONNECTOR)
(KV-34DRC510 LATIN SOUTH ONLY)
13 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
!
14 1-771-787-13 SWITCH, RF ANTENNA
* 15 1-555-400-00 CABLE, PIN
16 8-598-594-20 TUNER, FSS BTF-FA421
17 1-557-056-51 CABLE, P-P
18 8-598-593-40 TUNER, FSS BTF-WA421
* 19 A-1300-326-A A BOARD, COMPLETE
(ALL EXCEPT KV-34DRC510 LATIN SOUTH)
* 19 A-1300-537-A A BOARD, COMPLETE
(KV-34DRC510 LATIN SOUTH ONLY)
* 20 A-1300-323-A HM BOARD, COMPLETE
* 21 A-1400-548-A HB BOARD, MOUNTED
22 4-374-745-31 CUSHION (A)
23 1-825-105-11 LOUDSPEAKER (10 CM)
24 4-086-882-01 BRACKET, U
25 4-086-884-01 LABEL, TERMINAL
* 26 A-1300-324-A UD BOARD, COMPLETE
* 27 A-1300-321-A U BOARD, COMPLETE
28 1-500-082-11 CLAMP, SLEEVE FERRITE
29 4-086-874-02 COVER, REAR
7-685-663-79 SCREW +BVTP 4X16 TYPE2 TT(B)
4-384-096-01 SCREW (4X16), TAPPING, +P
7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B)
4-034-937-01 SCREW (M3), TAPPING
REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION
