KV-32HS510/34DRC510/34HS510/36HS510/38DRC510
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION

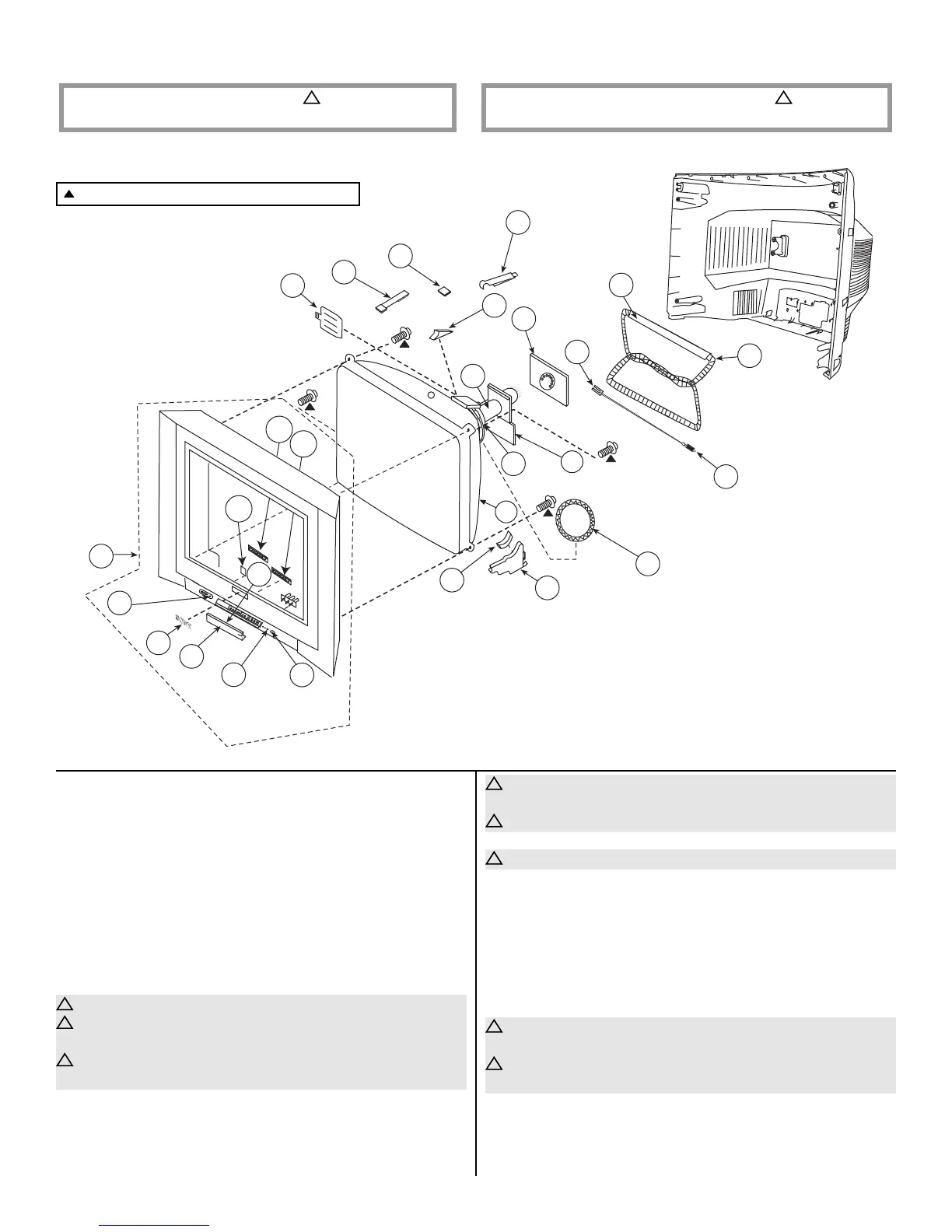

6-2. PICTURE TUBE (KV-32HS510/34DRC510)
[ASSEMBLY INCLUDES]
30 X-4041-385-1 BEZNET ASSY (31-39)
31 4-087-087-01 GUIDE, MS LED
32 3-704-179-01 EMBLEM (NO.9), SONY
33 4-086-876-11 DOOR
34 4-086-878-01 GUIDE, LED
35 4-086-879-11 BUTTON, POWER
36 4-086-877-01 COVER, DOOR
37 4-083-848-12 DAMPER, DOOR
38 4-083-302-03 BUTTON, MENU
39 4-083-301-12 BUTTON, MULTI
40 4-088-878-01 CUSHION, 32 CRT SUPPORTER
41 4-086-875-02 SUPPORTER, CRT
!
42 1-451-498-41 COIL, NA ROTATION
!
43 8-735-047-05 CRT 34RSN
(KV-32HS510 ONLY)
!
43 8-735-076-05 CRT 34RSN(SSV)(FOR ME/JP)
(KV-34DRC510 LATIN NORTH ONLY)
!
43 8-735-077-05 CRT 34RSN(SSV)(FOR EQUATORIAL)
(KV-34DRC510 LATIN SOUTH ONLY)
!
44 8-451-512-12 DY Y34RSC-M
* 45 A-1400-561-A W BOARD, MOUNTED
!
46 8-453-009-21 NECK ASSEMBLY NA325-M2
* 47 A-1400-562-A CX BOARD, MOUNTED
48 4-053-005-01 SPACER, DY
49 4-065-895-11 HOLDER, DGC
50 1-452-885-11 MAGNET, LANDING
51 4-083-414-01 PIECE A(110), CONV CORRECT
52 4-081-170-01 PLATE, TLH CORRECTION
53 4-082-641-01 SPRING, 45MM
54 4-082-640-01 HOOK, GROUND WIRE
!
55 1-416-827-21 COIL, DEGAUSSING
(ALL EXCEPT KV-34DRC510 LATIN SOUTH)
!
55 1-419-163-21 COIL, DEGAUSSING
(KV-34DRC510 LATIN SOUTH ONLY)
56 4-084-728-01 CUSHION, DGC
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
53
54
55
56
45
43
51
50
47
44
52
42
41
40
46
48
49
37
38
39
32
33
36
34
30
35
31
