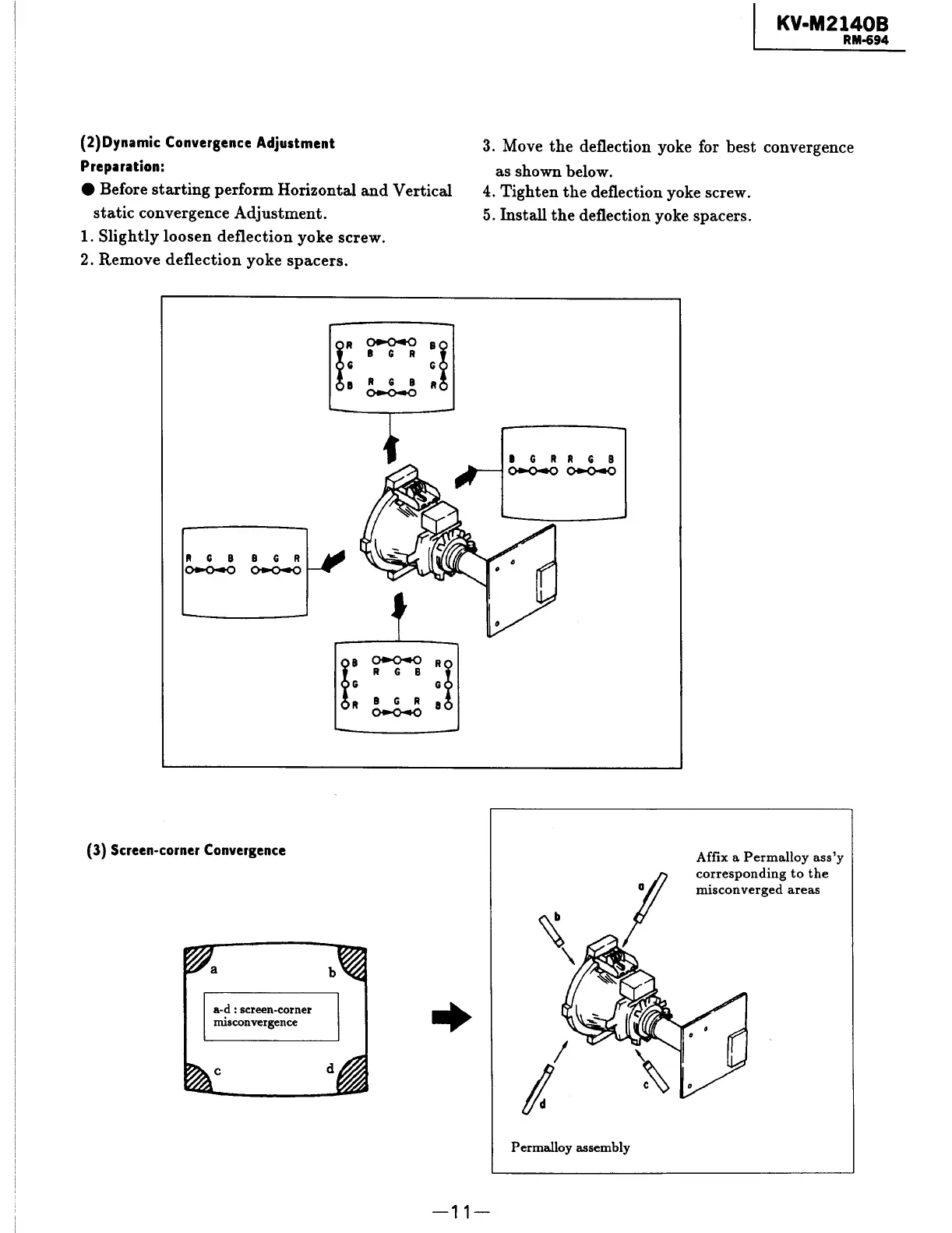

(2)Dynamic Convergence Adjustment 3. Move the deflection yoke for best convergence
Preparation: as shown below.
@ Before starting perform Horizontal and Vertical 4. Tighten the deflection yoke screw.
static
convergence
Adjustment.
5.
Install
the
deflection
yoke
spacers.
1. Slightly loosen deflection yoke screw.
2. Remove deflection yoke spacers.
(3) Screen-corner Convergence Affix a Permalloy ass’y
corresponding to the
misconverged areas
a-d : screen-corner
misconvergence
Permalloy assembly
